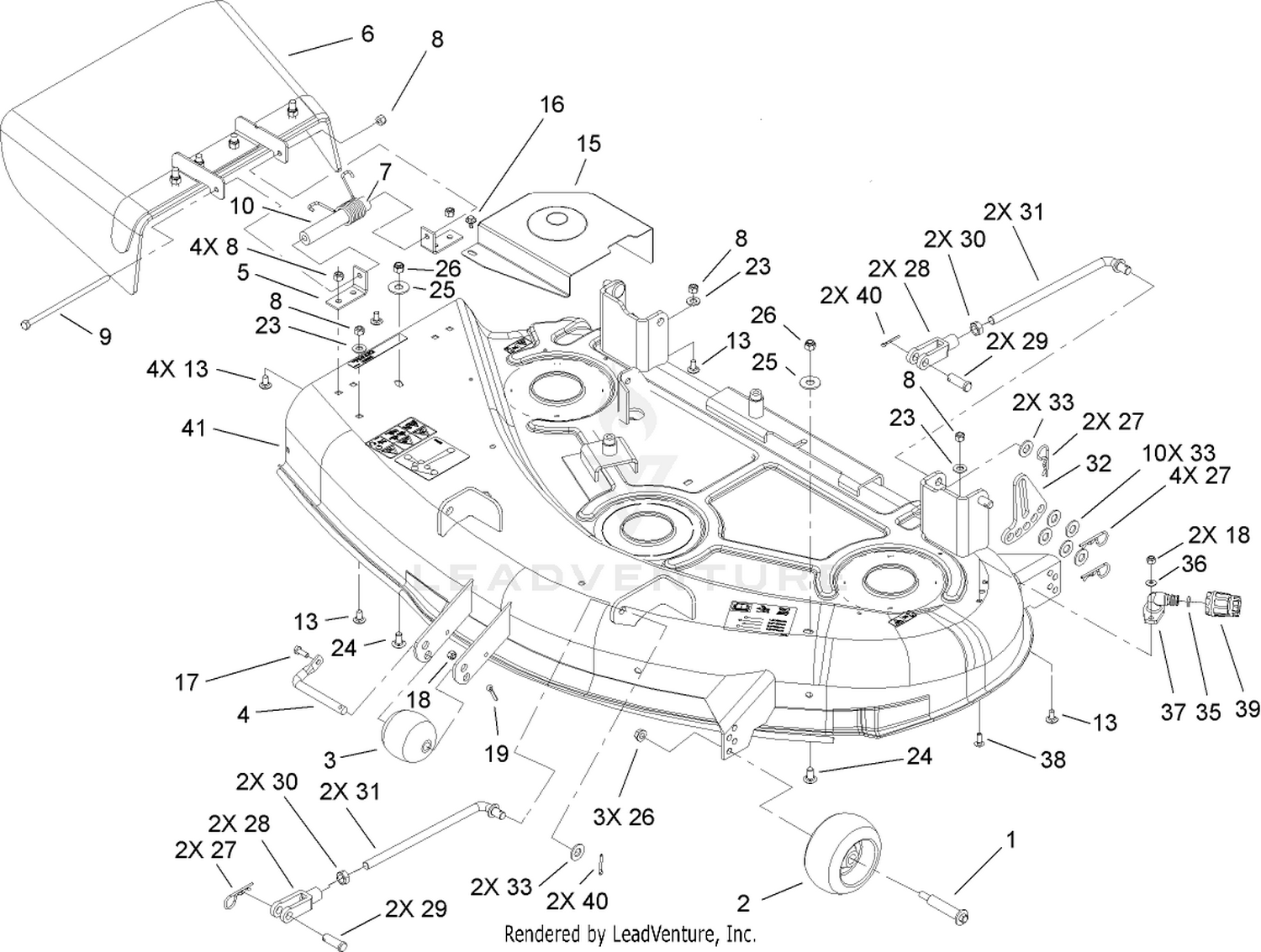

| Ref | Part Number | Description |
|---|
| 1 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 2 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 3 |
29-4820 |
ROLLER Price: $14.88 |
| 4 |
118960-03 |
SHAFT-ROLLER Price: $25.18 |
| 5 |
108-6196-03 |
BRACKET-PIVOT, DEFLECTOR Price: $10.73 |
| 6 |
108-8591 |
DEFLECTOR ASM Price: $134.80 |
| 7 |
108-4052 |
SPRING-TORSION Price: $23.99 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
108-8539 |
BOLT-HH Price: $9.85 |
| 10 |
108-7159 |
SPACER-DEFLECTOR Price: $6.99 |
| 13 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 15 |
110-1878-03 |
DISCONTINUED Price: Call Us |
| 16 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 17 |
321-4 |
SCREW-HH Price: $0.99 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
3272-21 |
PIN-COTTER Price: $3.09 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 26 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 27 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 28 |
100-7338 |
CLEVIS Price: $57.99 |
| 29 |
104-3634 |
PIN-CLEVIS Price: $18.99 |
| 30 |
3220-5 |
NUT-JAM Price: $0.65 |
| 31 |
131-3945 |
ROD-MOUNT, DECK This part replaces 104-8047. Price: $28.01 |
| 32 |
104-3699-01 |
LINK-HOC, ADJUSTING Price: $41.22 |
| 33 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 35 |
46-6290 |
O-RING Price: $2.59 |
| 36 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 37 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
