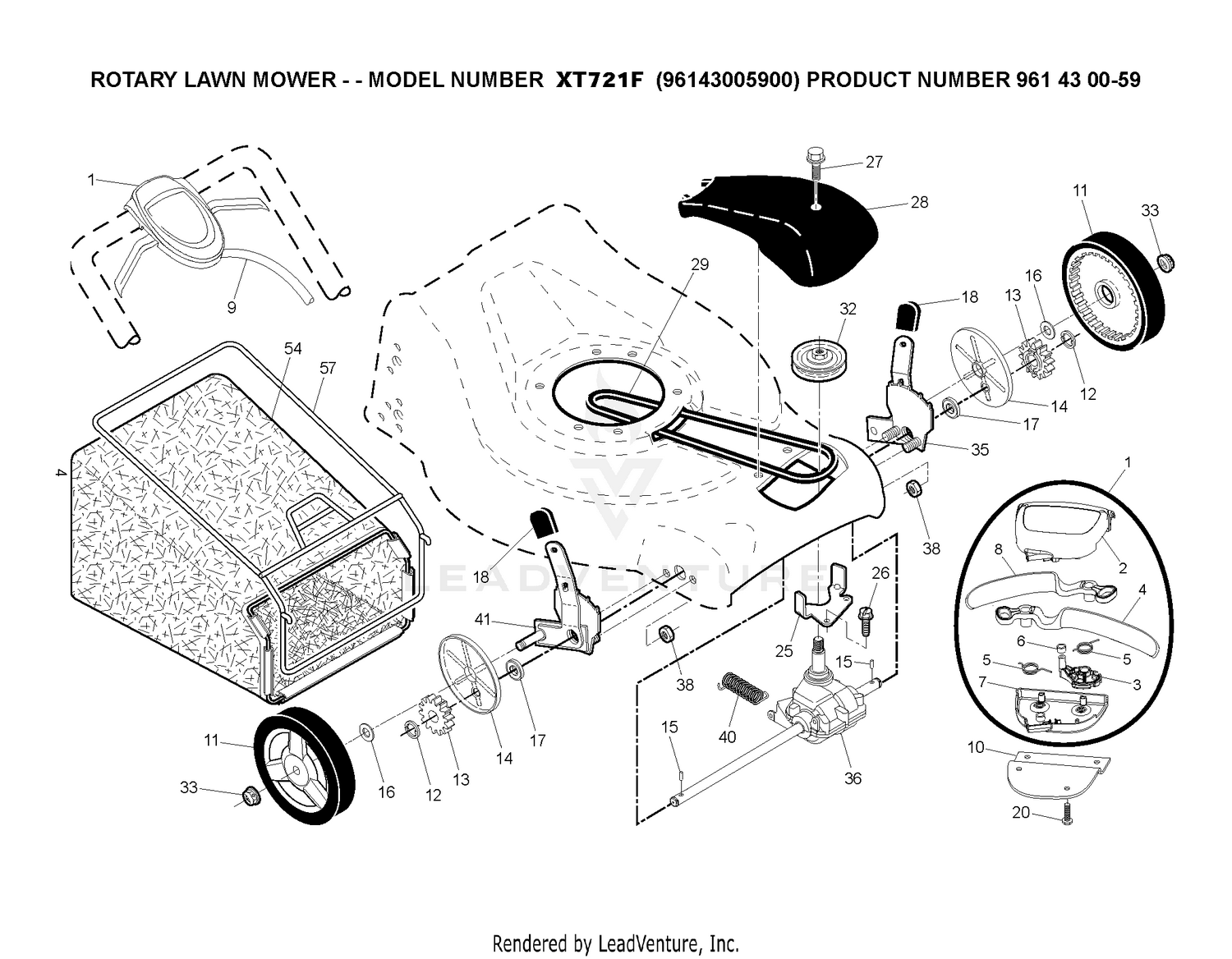

DRIVE

DRIVE

Parts (28)

RefPart NumberDescription
1 581080913 CONTROL.AW2.21FGD.CUR.BLK/BLK This part replaces 532430998. Price: $49.99
2 532431638 RP CASE.CONT.ROL.TOP.HUSQV. Price: $19.99
3 532432286 CAM.GEN2.DUAL.TRIGGER Price: $3.99
5 532420381 SPRING, DRIVE CONTROL Price: $2.99
6 532432273 BUSHING.CONTROL.CAM Price: $3.99
7 532433057 COVER.DR.CONTROL.LOWER.GRAY Price: $12.99
9 581080913 CONTROL.AW2.21FGD.CUR.BLK/BLK This part replaces 532431651. Price: $49.99
10 532432790 BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99
11 532401274 WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99
12 812000058 E-RING 7/16 RE Price: $2.99
13 532403849 PINION.14.TEETH.FGD Price: $5.99
14 581840401 COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99
15 532404845 PAWL, DRIVE Price: $4.99
16 532067725 WASHER FLUT Price: $5.99
17 587070202 BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99
18 532701037 SELECTOR KNOB Price: $4.99
20 532181698 SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99
25 532431711 BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99
26 532163409 SCREW Price: $3.99
27 532175262 SCREW, HEX HD TAPPING #10-24 1 Price: $3.99
28 532432664 COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99
29 532194149 BELT.DRIVE.FG Price: $19.99
33 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99
36 532404833 TRANSMISSION.21.FGD.HT.VST Price: $119.99
38 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99
40 532406558 SPRING Price: $6.99
54 580953406 GBAG.34710090.H-GREY MS498 This part replaces 532425732. Price: $54.99
57 532411950 FRAME.GBAG.21.FWGD Price: $64.99
