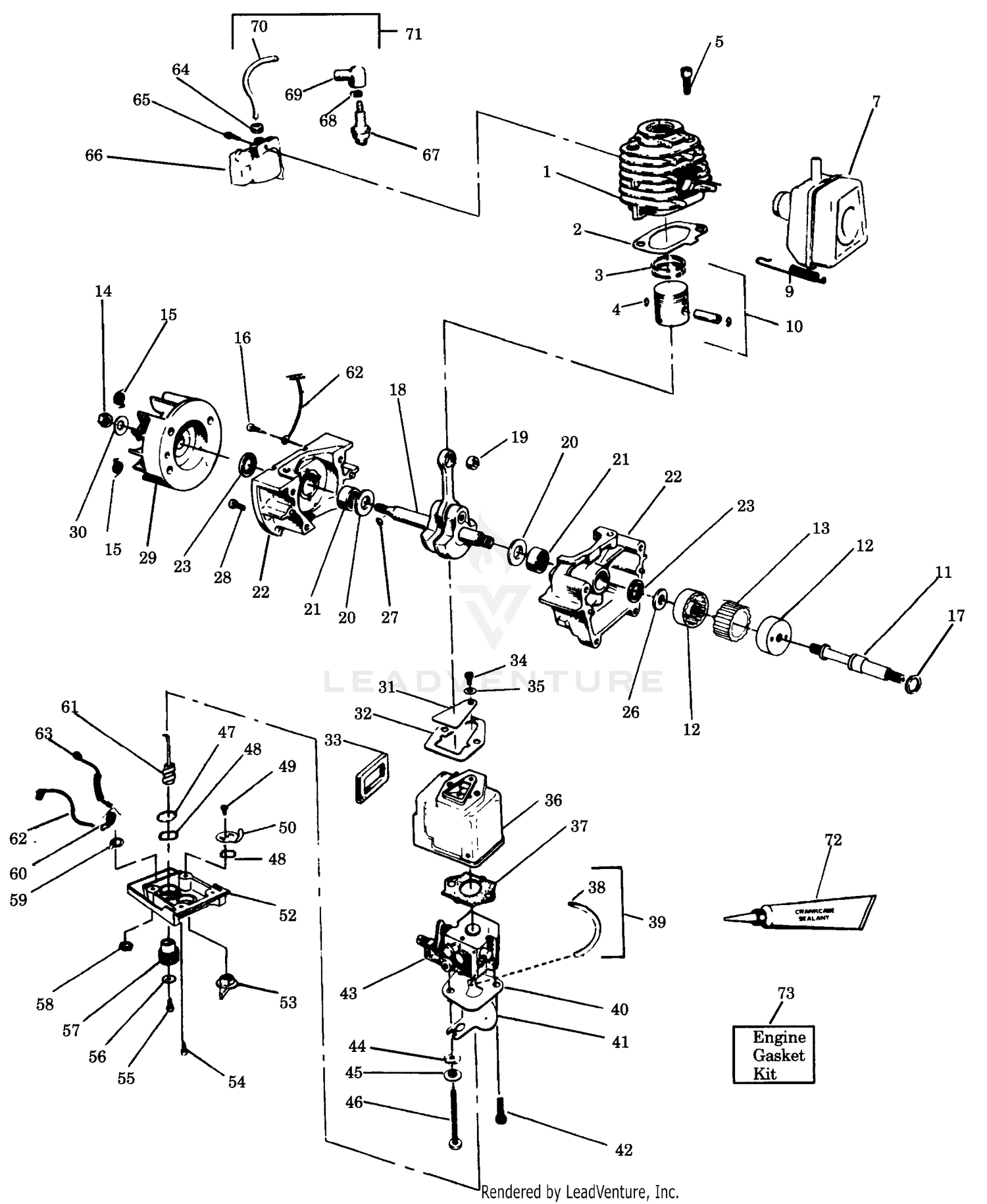

| Ref | Part Number | Description |
|---|
| 1 |
530012252 |
Cylinder Price: $17.99 |
| 1 |
SGH08011 |
HEAD-TINE, ADAPTER This part replaces SGH08011-03. Price: $233.73 |
| 2 |
530069219 |
Engine Gasket Kit This part replaces 530019111. Price: $11.54 |
| 2 |
SG715706 |
SHANK-ADAPTER Price: $16.94 |
| 3 |
530026681 |
Piston Ring Price: Call Us |
| 4 |
530015162 |
Wrist Pin Retainer Price: $1.99 |
| 5 |
530015239 |
Screw Price: $1.99 |
| 7 |
530069245 |
Muffler Ass'y. Price: $11.99 |
| 9 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 12 |
530094218 |
Shaft Coupling Price: $3.33 |
| 13 |
530094243 |
Plastic Coupling Price: Call Us |
| 14 |
530626605 |
Flywheel Nut Price: $1.99 |
| 15 |
530023817 |
Starter Dog Spring Price: $1.99 |
| 16 |
530015004 |
Screw Price: $1.99 |
| 17 |
530015763 |
Washer Price: $0.99 |
| 18 |
530010853 |
Crankshaft & Rod Ass'y. Price: $89.99 |
| 19 |
530032092 |
Piston Pin Bearing Price: $6.99 |
| 20 |
530015351 |
Washer Price: $3.99 |
| 21 |
530032029 |
Crankshaft Bearing Price: $7.99 |
| 23 |
530019059 |
Crankcase Seal Price: $4.99 |
| 26 |
530001717 |
Coupling Washer Price: $1.99 |
| 27 |
530015126 |
Flywheel Key Price: $1.99 |
| 28 |
530015168 |
Screw Price: $1.46 |
| 29 |
530047198 |
Flywheel Ass'y This part replaces 530039111. Price: $23.99 |
| 30 |
530015127 |
Flywheel Washer Price: $1.99 |
| 31 |
530024438 |
Reed Valve Price: Call Us |
| 32 |
530019108 |
Carburetor Case to Crank-case Gasket Price: $2.99 |
| 33 |
530019105 |
Carburetor Case Seal Price: Call Us |
| 34 |
530015241 |
Screw Price: $1.99 |
| 35 |
530023367 |
Washer Price: Call Us |
| 36 |
530026818 |
Carburetor Case Price: $6.99 |
| 37 |
530019157 |
Carburetor Gasket Price: $0.74 |
| 38 |
530026981 |
Fuel Line Fitting Price: $1.99 |
| 39 |
530010875 |
Fuel Line & Fitting Ass'y. Price: $2.99 |
| 40 |
530026797 |
Choke Guide Plate Price: Call Us |
| 41 |
530026772 |
Choke Shutter Price: $2.99 |
| 42 |
530015674 |
Screw Price: $1.99 |
| 43 |
530035183 |
Model 1400 G.TRIMMER-T1-T2-WA-149 This part replaces 530035196. Price: $65.89 |
| 44 |
530015254 |
Wave Washer Price: $1.99 |
| 45 |
530015673 |
Spacer Price: $1.99 |
| 46 |
530015630 |
Screw Price: $1.99 |
| 47 |
530015654 |
Retaining Ring Price: $1.99 |
| 48 |
530015147 |
Wave Washer Price: $1.99 |
| 49 |
530015407 |
Screw Price: $0.56 |
| 50 |
530026773 |
Choke Actuator Price: $1.99 |
| 52 |
530026764 |
Carb. Case Cover Price: $2.99 |
| 53 |
530023807 |
Choke Knob Price: $1.99 |
| 54 |
530015675 |
Screw Price: $1.99 |
| 55 |
530015660 |
Screw Price: $1.99 |
| 56 |
530015123 |
Washer Price: $1.99 |
| 57 |
530015614 |
Throttle Knob Price: $3.99 |
| 58 |
530002582 |
Switch- Plate and Nut This part replaces 530023575. Price: $6.69 |
| 59 |
530024569 |
Washer Price: Call Us |
| 61 |
530026771 |
Throttle Wire Ass'y. Price: Call Us |
| 62 |
530026951 |
Ignition Wire Price: Call Us |
| 63 |
530026829 |
Ground Wire Price: $1.99 |
| 64 |
530024435 |
Plug Wire Grommet Price: $1.99 |
| 65 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 66 |
530039124 |
Ignition Module Price: Call Us |
| 67 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 530030005. Price: $3.99 |
| 68 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 69 |
530003934 |
Spark Plug Boot Price: Call Us |
| 70 |
530039082 |
High Tension Lead Wire Price: Call Us |
