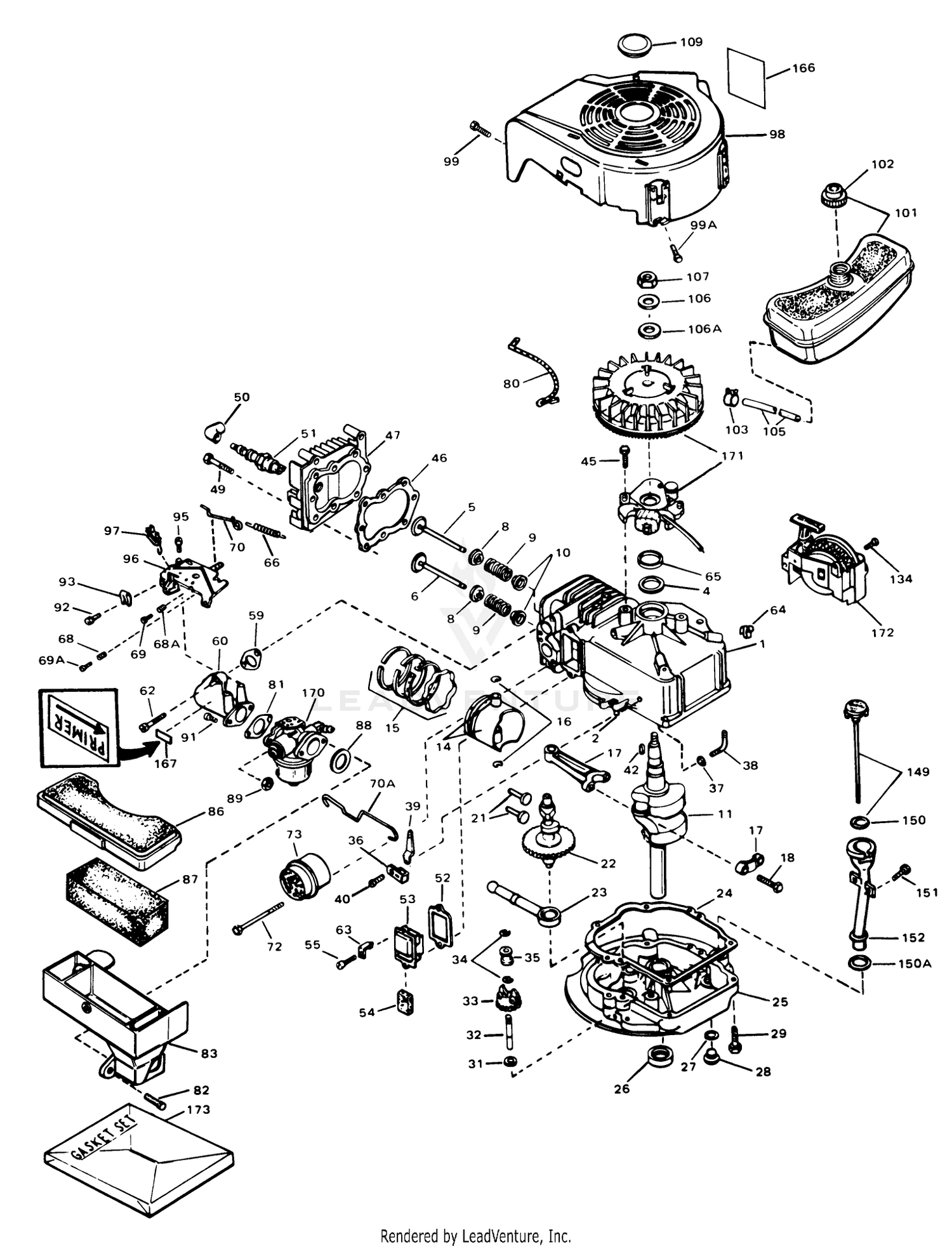

| Ref | Part Number | Description |
|---|
| 1 |
32537B |
Cylinder Assembly (Incl. Ref. #2 4) Price: Call Us |
| 2 |
26727 |
Pin-Dowel Price: Call Us |
| 4 |
29183 |
OIL SEAL Price: Call Us |
| 5 |
29314A |
Valve, Intake (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 5 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 6 |
29313B |
Valve, Exhaust (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 6 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 8 |
31671 |
Cap-Upper Valve Spring Price: Call Us |
| 9 |
31672 |
Spring-Valve Price: Call Us |
| 10 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 11 |
34233A |
Crankshaft Price: Call Us |
| 14 |
32538A |
Piston, Pin Ring Assembly (Std.) (Incl. Nos. 15 16) Price: Call Us |
| 14 |
32548A |
Piston, Pin Ring Assy. (.010 Oversize) (Incl. Ref. #15 16) Price: Call Us |
| 14 |
32549A |
Piston, Pin Ring Assy. (.020 Oversize) (Incl. Nos. 15 16) Price: Call Us |
| 15 |
28986 |
Piston Ring Set Std. Price: Call Us |
| 15 |
28987 |
Piston Ring Set .010 O.S. Price: Call Us |
| 15 |
28988 |
Piston Ring Set .020 O.S. Price: Call Us |
| 16 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 17 |
30963B |
Rod Assy., Connecting (Incl. Nos.18, 19 20) Price: Call Us |
| 18 |
32610A |
Bolt-Rod, Connecting Price: Call Us |
| 21 |
27241 |
Lifter-Valve Price: Call Us |
| 22 |
33553 |
Camshaft(Mech.Comp. Release) Price: Call Us |
| 23 |
29914 |
Oil Pump ASM Price: Call Us |
| 25 |
30594B |
Flange Assembly, Mounting (Incl. Ref. #26 thru 30) Price: Call Us |
| 26 |
26208 |
Seal Oil Price: Call Us |
| 28 |
27244 |
Plug Oil Drain Price: Call Us |
| 29 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 31 |
30590A |
Washer-Flat Price: Call Us |
| 32 |
30574 |
Shaft-Governor Price: Call Us |
| 33 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 34 |
29193 |
Ring-Retaining Price: Call Us |
| 35 |
30588A |
Spool-Governor Price: Call Us |
| 36 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 37 |
28277 |
Washer-Flat Price: Call Us |
| 38 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 39 |
31383 |
Lever, Governor Price: Call Us |
| 40 |
650648 |
Screw, Hex Washer Hd. Price: Call Us |
| 42 |
610961 |
Key-Flywheel Price: Call Us |
| 45 |
650489 |
Screw Price: Call Us |
| 49 |
6021A |
Screw (5/16-18x1-1/2) Price: Call Us |
| 50 |
610118 |
Cover-Spark Plug Price: Call Us |
| 51 |
33636 |
Plug, Spark (J17LM or equiv.) Price: Call Us |
| 51 |
34251 |
Plug, Spark (Champion RCJ-8) Price: Call Us |
| 53 |
31337 |
Breather Assembly (Incl. Nos. 52 84) Price: Call Us |
| 54 |
31410 |
Element-Breather Price: Call Us |
| 55 |
650128 |
Screw Price: Call Us |
| 60 |
31384 |
Pipe, Intake Price: Call Us |
| 62 |
650451 |
Screw (1/4-20 x 1) Price: Call Us |
| 63 |
30593 |
Retainer Clip Price: Call Us |
| 65 |
33876 |
Gasket Stator Price: Call Us |
| 66 |
31361 |
Spring Governor Price: Call Us |
| 68A |
31342 |
Spring-Compression Price: Call Us |
| 69 |
650549 |
Screw Price: Call Us |
| 69A |
650777 |
Screw Price: Call Us |
| 70A |
34336 |
Link-Throttle Price: Call Us |
| 72 |
650795 |
Screw Price: Call Us |
| 73 |
27181A |
Muffler Kit (Incl. No. 72) Price: Call Us |
| 80 |
34231 |
Wire-Ground Price: Call Us |
| 82 |
650806 |
Screw Price: Call Us |
| 83 |
34339 |
Body, Air Cleaner Price: Call Us |
| 86 |
34341 |
Cover Air Cleaner Price: Call Us |
| 87 |
34340 |
Filter-Air Cleaner Price: Call Us |
| 89 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 91 |
111-1250 |
WHEEL 180X45 RIBBED This part replaces 6201. Price: $27.74 |
| 92 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 93 |
27793 |
Conduit Price: Call Us |
| 95 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 96 |
33131A |
Bracket Assembly-Control (Incl. Ref. #62-65) Price: Call Us |
| 97 |
610973 |
Terminal Price: Call Us |
| 98 |
34345 |
Housing, Blower Price: Call Us |
| 99 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 99A |
650497 |
Screw Price: Call Us |
| 101 |
32170A |
Tank, Fuel Price: Call Us |
| 102 |
32387A |
Cap, Fuel Price: Call Us |
| 103 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 105 |
29774 |
Line-Fuel (8.62) Price: Call Us |
| 106 |
650763 |
Washer-Spring Price: Call Us |
| 106A |
650791 |
Washer Flat Price: Call Us |
| 107 |
650607 |
Hex Nut Price: Call Us |
| 109 |
34113 |
Plug, Screen Price: Call Us |
| 134 |
650802 |
Screw (1/2-20x5/8) Price: Call Us |
| 149 |
34281 |
Dipstick-Oil (Incl. Ref. #112) Price: Call Us |
| 150 |
33590 |
O-Ring Price: Call Us |
| 150A |
34265 |
Gasket Price: Call Us |
| 151 |
650562 |
Screw (10-32 x 1/2) Price: Call Us |
| 152 |
34264 |
Tube-Oil Fill Price: Call Us |
| 166 |
34346 |
Decal-Instruction Price: Call Us |
| 167 |
34363 |
Decal, Instruction Price: Call Us |
| 170 |
632046 |
Carburetor (Incl. No. 81) Price: Call Us |
| 171 |
610793A |
Magneto Price: Call Us |
| 172 |
590531 |
Starter-Sidemount Price: Call Us |
