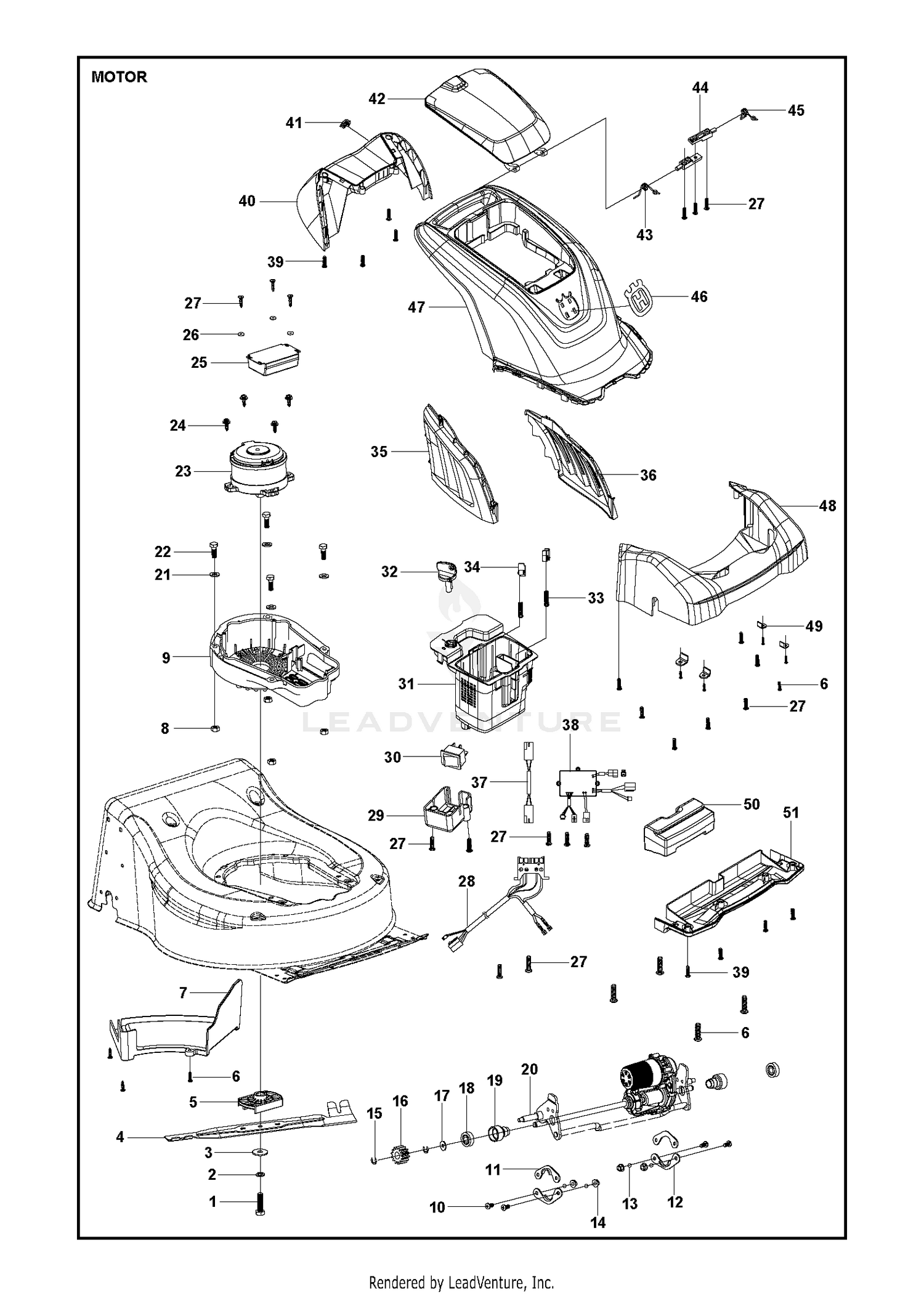

MOTOR
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 579684101 | BOLT Price: $2.99 |
| 2 | 579684201 | SPRING WASHER Price: $2.99 |
| 3 | 579684301 | WASHER Price: $2.99 |
| 4 | 501171610 | Blades This part replaces 501171601. Price: $27.99 |
| 5 | 579684501 | BLADE SUPPORT Price: $11.99 |
| 6 | 579687501 | SCREW Price: $2.99 |
| 7 | 582894901 | COVER LOW PROTECT # 2106100379 Price: $6.99 |
| 8 | 579685801 | NUT LOCKING Price: $2.99 |
| 9 | 579685901 | HOLDER Price: $37.99 |
| 10 | 587912601 | SCREW M6*16 #26800204601 Price: $2.99 |
| 11 | 587992401 | FIXING PLATE #26300314601 Price: $4.99 |
| 12 | 587910901 | FIXING PLATE #26300124401 Price: $4.99 |
| 13 | 587992501 | O-RING #25100175201 Price: $4.99 |
| 14 | 587913401 | LOCK NUT M6,GB/T6187.1-2000 #2 Price: $2.99 |
| 15 | 587914701 | WASHER φ9,GB896 #26800900201 Price: $2.99 |
| 16 | 589757901 | GEAR #26900215601 Price: $37.99 |
| 17 | 587914501 | WASHER φ12.8*φ20*0.8 #268007 Price: $2.99 |
| 18 | 587913001 | BEARING Price: $9.99 |
| 19 | 587915501 | BEARING HOUSING #26900211501 Price: $32.99 |
| 20 | 589758001 | GEARBOX ASSY #23050206401 Price: $179.99 |
| 21 | 579686001 | WASHER Price: $2.99 |
| 22 | 579686101 | BOLT Price: $3.99 |
| 23 | 598764301 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 579686301 | SCREW Price: $2.99 |
| 25 | 598764501 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 579686501 | WASHER Price: $2.99 |
| 27 | 579685501 | SCREW Price: $2.99 |
| 28 | 579686602 | WIRE BATTERY CONNECTOR Price: $64.99 |
| 29 | 579686801 | PLATE Price: $3.99 |
| 30 | 579686901 | KEY SWITCH Price: $5.99 |
| 31 | 501489602 | BOX BATTERY BOX Price: $22.99 |
| 32 | 501490101 | KEY Price: $5.99 |
| 33 | 579687001 | SPRING Price: $3.99 |
| 34 | 501490201 | CAP COMPRESSION SPRING CAP Price: $3.99 |
| 35 | 501488701 | COVER RIGHT AIR WINDOW PLATE Price: $17.99 |
| 36 | 501488501 | COVER LEFT AIR WINDOW PLATE Price: $17.99 |
| 37 | 589759201 | LINE CONNECTING # 27100124701 Price: $24.99 |
| 39 | 579686701 | SCREW Price: $2.99 |
| 40 | 501488801 | COVER BACK COVER Price: $22.99 |
| 41 | 579687101 | WIRE Price: $3.99 |
| 42 | 501488301 | COVER BATTERY LID Price: $22.99 |
| 43 | 579687701 | TORSION SPRING Price: $3.99 |
| 44 | 501489801 | HINGE BATTERY LID HINGE Price: $3.99 |
| 45 | 579687801 | TORSION SPRING LEFT Price: $3.99 |
| 46 | 501489101 | DECAL LOGO Price: $2.99 |
| 47 | 501488401 | COVER MOTOR COVER Price: $34.99 |
| 48 | 501488901 | COVER FRONT COVER Price: $27.99 |
| 49 | 579687601 | WASHER Price: $2.99 |
| 50 | 579843901 | WEIGHT # 25100184101 Price: $19.99 |
| 51 | 501489501 | COVER FRONT HANDLE (UNDER SIDE Price: $22.99 |
