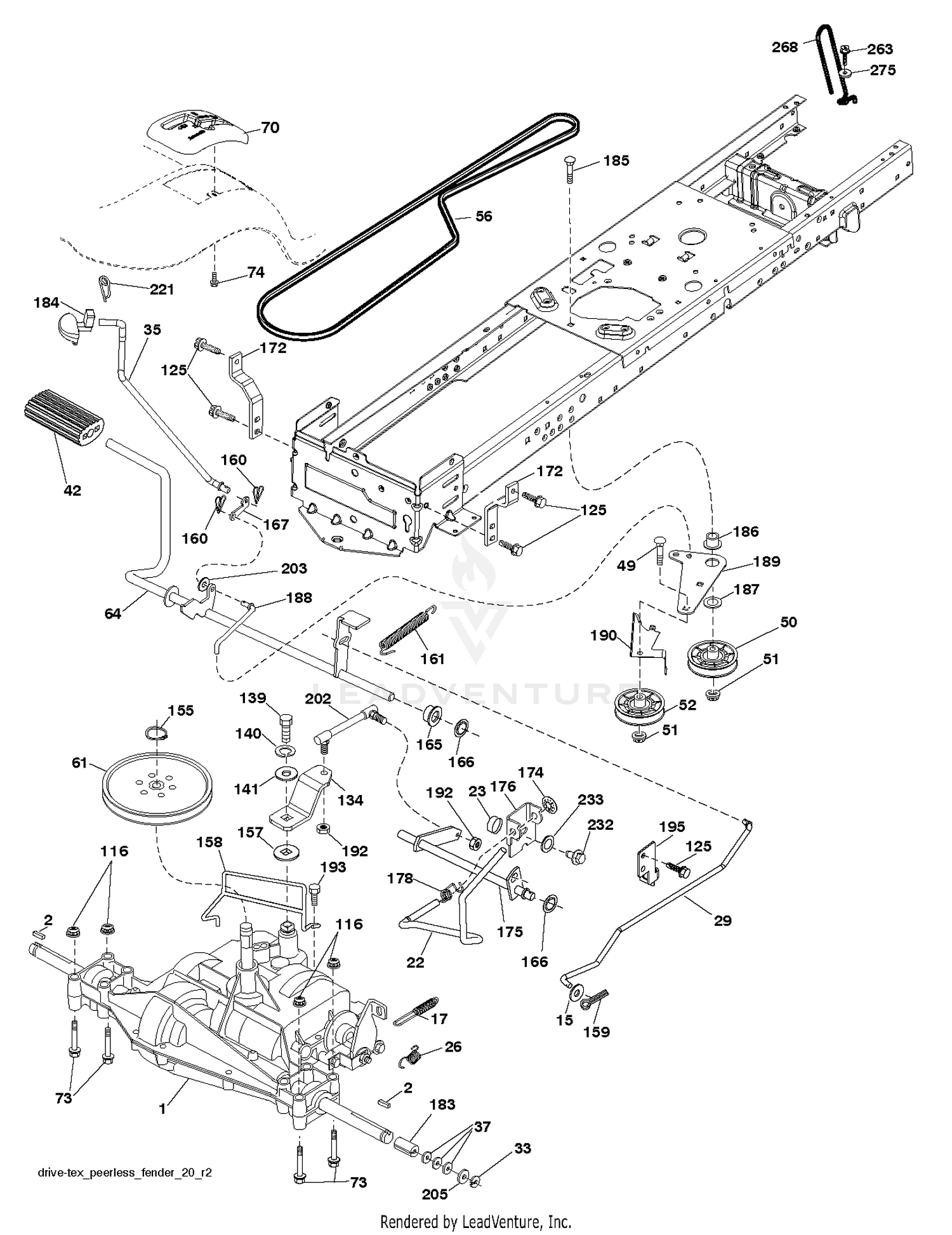

| Ref | Part Number | Description |
|---|
| 1 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 2 |
532123583 |
SQUARE KEY Price: $2.69 |
| 2 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 3 |
98-9622 |
PIPE-INJECTION Price: $74.03 |
| 4 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 5 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 6 |
98-9624 |
OVERFLOW PIPE ASM Price: $5.18 |
| 7 |
99-8377 |
NUT-FLANGE Price: $2.56 |
| 8 |
98-9621 |
OVERFLOW PIPE ASM Price: $73.29 |
| 9 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 10 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
| 11 |
98-9623 |
PLUG-GLOW Price: $93.76 |
| 12 |
98-7676 |
GASKET Price: $2.73 |
| 13 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 14 |
98-7654 |
GASKET Price: $8.84 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 15 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 16 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 17 |
532197297 |
SPRING.BRAKE.PEERLESS.TEX Price: $3.99 |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $30.99 |
| 23 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $5.99 |
| 26 |
532197455 |
SPRING.BRAKE.RTN.GR.DR Price: $2.99 |
| 29 |
532197267 |
ROD.BRAKE.PEERLESS Price: $22.99 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
532401031 |
ROD, BRAKE, PARK Price: $12.99 |
| 37 |
532121749 |
WASHER Price: $1.99 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532194346 |
V-BELT.TRACTOR.DRIVE.P Price: $25.99 |
| 61 |
532123666 |
PULLEY TRANS Price: $22.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532411290 |
CONSOLE.SHIFT. Price: $23.99 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 116 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 134 |
532197857 |
ARM SHIFT Price: $2.99 |
| 139 |
871040412 |
Bolt, Shift Plate This part replaces 874550412. Price: $3.99 |
| 140 |
810040400 |
LOCKWASHER Price: $3.99 |
| 141 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 155 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 157 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 158 |
532194352 |
KEEPER.PMS.18/20.D4365 Price: $11.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 172 |
532197657 |
STRAP.TRQ.LH.GEAR.DRIV Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532197858 |
SHAFT ASM SHIFT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532199996 |
HANDLE.PARKG.BRK.PRED.LT This part replaces 532441407. Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
532194323 |
LINK.CLUTCH.GROUND.DRIVE Price: $7.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 192 |
873610400 |
NUT This part replaces 532150360. Price: $2.99 |
| 193 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 195 |
532197332 |
BRKT.ROD.BRAKE.PEERLES Price: $2.99 |
| 202 |
532197859 |
LINK.SHIFT.PMST.18" Price: $25.99 |
| 203 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 268 |
532182402 |
Price: $4.99 |
