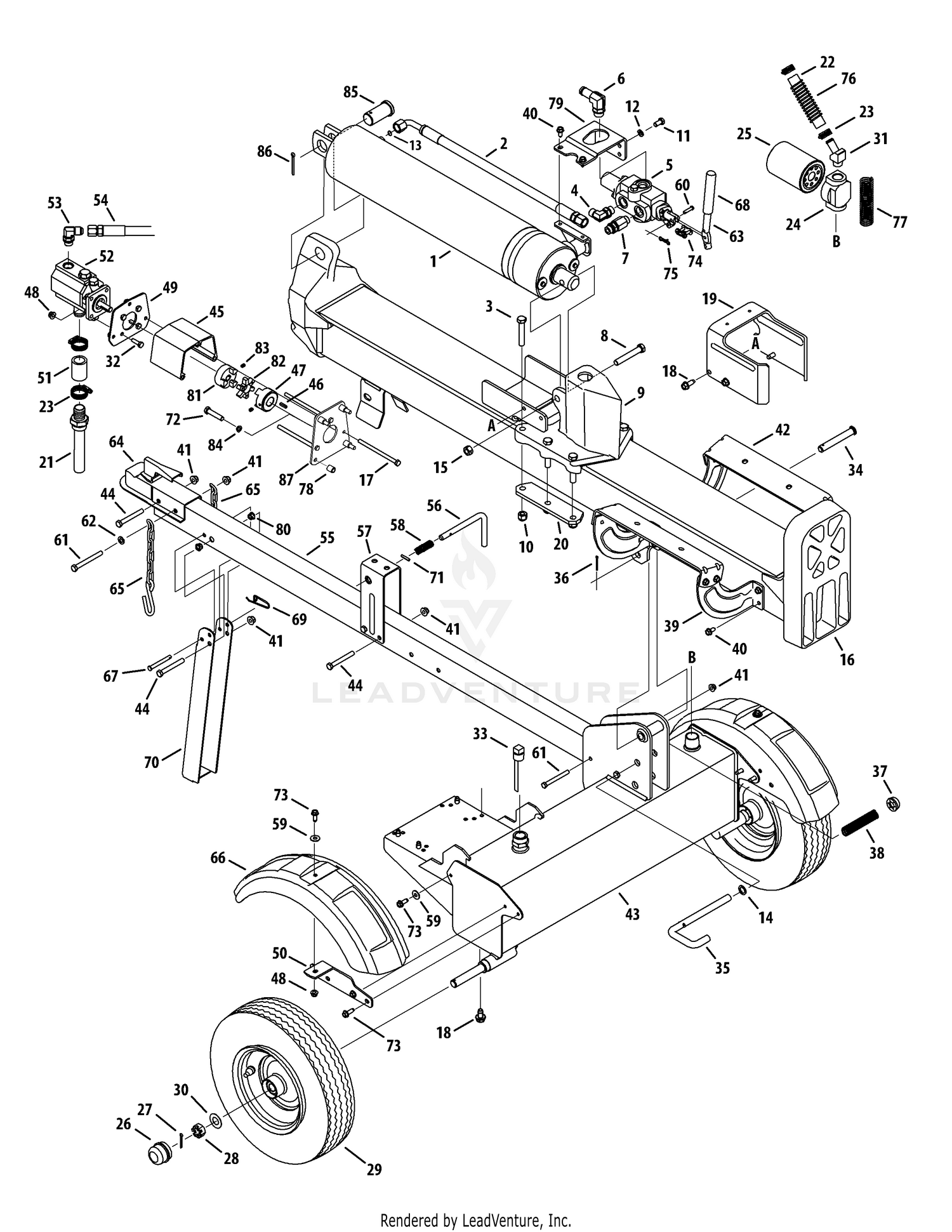

| Ref | Part Number | Description |
|---|
| 2 |
727-04362 |
Hydraulic Tube Price: $80.58 |
| 3 |
710-1018 |
Hex Cap Screw, 1/2-20 x 2.75 Price: $9.86 |
| 4 |
737-04320 |
HYDRAULIC FITTING Price: $18.13 |
| 5 |
718-04706P |
Control Valve Price: $321.57 |
| 6 |
737-04307 |
HYDRAULIC FITTING Price: $21.12 |
| 7 |
737-04309 |
HYDRAULIC FITTING Not Available Price: |
| 8 |
710-1806 |
Hex Cap Screw, 1/2-13 x 3.25 Price: $9.43 |
| 9 |
719-04529 |
Wedge Assembly Price: $221.67 |
| 10 |
912-3058 |
Hex Lock Nut, 1/2-20 Price: $4.92 |
| 11 |
710-0216 |
Hex Cap Screw, 3/8-16 x .75 Price: $3.93 |
| 12 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 13 |
721-04411 |
O-Ring, .489 ID x .070 Dia. Price: $3.43 |
| 14 |
936-0116 |
Flat Washer, .635 x.93 x.06 Price: $6.07 |
| 15 |
712-3022 |
Hex Lock Nut, 1/2-13 Price: $3.61 |
| 16 |
981-04140 |
Beam Assembly Price: $1,397.19 |
| 17 |
710-0974 |
Hex Screw, 5/16-18 x 4.75 Price: $10.48 |
| 18 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683A. Price: $5.67 |
| 19 |
781-0525-0637 |
Dislodger This part replaces 781-0525-0638. Price: $123.80 |
| 20 |
781-0790A-0637 |
Back Plate Price: $35.76 |
| 21 |
737-04308 |
INLET FILTER Not Available Price: |
| 22 |
727-0443 |
Return Hose, 3/4 x 44 Price: $104.04 |
| 23 |
726-0132 |
Hose Clamp, 5/8 Price: $13.50 |
| 24 |
737-04267 |
Filter Housing Price: $50.34 |
| 25 |
723P0405 |
FILTER ELEMENT (10 MICRON LFP-1652) This part replaces 723-0405. Price: $39.50 |
| 26 |
734-0873 |
Hub Cap Price: $10.38 |
| 27 |
714-0162 |
Cotter Pin Price: $4.29 |
| 28 |
712-0359 |
Slotted Nut, 3/4-16 Price: $10.13 |
| 29 |
634-0186 |
Complete Wheel Assembly Price: $337.74 |
| 29 |
921-0168 |
Dust Seal Price: $8.47 |
| 29 |
941-04298 |
Cone Bearing This part replaces 941-04089. Price: $14.84 |
| 30 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 31 |
737-04323 |
Hydraulic Fitting, 1 1/16 Orb x .75 Price: $25.21 |
| 32 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 Price: $3.66 |
| 33 |
737-0348A |
Vented Dipstick Price: $20.53 |
| 34 |
711-05169 |
Clevis Pin Price: $4.64 |
| 35 |
747-04983 |
Lock Rod Price: $22.15 |
| 36 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 37 |
726-0214 |
Push Cap Price: $9.11 |
| 38 |
732-0583 |
Compression Spring Price: $10.65 |
| 39 |
781-04293-0637 |
Log Tray Bracket Price: $17.96 |
| 40 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 41 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 42 |
781-04179-0637 |
Log Tray Price: $44.05 |
| 43 |
981-04171-0637 |
Frame Assembly Price: $464.41 |
| 44 |
710-0521 |
Hex Bolt, 3/8-16 x 3 Price: $4.54 |
| 45 |
719-0281 |
Coupling Shield Price: $38.73 |
| 46 |
714-0122 |
Square Key, 3/16 x .75 This part replaces 914-0122. Price: $3.07 |
| 47 |
718-04395 |
Coupling, .875 Price: $16.37 |
| 48 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 49 |
781-0097-0637 |
Rear Coupling Support Bracket Price: $61.35 |
| 50 |
781-04174-0637 |
Fender Mounting Bracket Price: $46.36 |
| 51 |
727-0451 |
Hose Price: $94.80 |
| 52 |
918-04128 |
Gear Pump Price: $852.43 |
| 53 |
737-04322 |
Hydraulic Fitting, 7/8 Orb x .8125 Price: $27.48 |
| 54 |
727-04288 |
High Pressure Hydraulic Hose Price: $80.58 |
| 55 |
781-04372-0638 |
Tongue Assembly Not Available Price: |
| 56 |
747-1261 |
Latch Rod Price: $35.09 |
| 57 |
781-04420-0637 |
Latch Price: $24.25 |
| 58 |
932-3127 |
Compression Spring Price: $3.82 |
| 59 |
736-0371 |
Flat Washer Price: $3.94 |
| 60 |
711-04585 |
Clevis Pin Price: $6.06 |
| 61 |
710-3085 |
Hex Cap Screw, 3/8-16 x 3.50 Price: $3.90 |
| 62 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 63 |
747-04539A |
Hydraulic Valve Control Price: $40.05 |
| 64 |
681-04030 |
Hitch Coupling Assembly Price: $63.83 |
| 65 |
713-0433A |
Chain Price: $39.25 |
| 66 |
731-2496A |
Fender Price: $72.49 |
| 67 |
911-0813 |
Clevis Pin Price: $5.94 |
| 68 |
720-04088 |
Grip Price: $9.09 |
| 69 |
732-0194 |
Spring Pin Price: $4.11 |
| 70 |
781-04429-0638 |
Jack Stand Price: $34.65 |
| 71 |
715-0120 |
Spiral Pin Price: $9.14 |
| 72 |
710-0157 |
Hex Cap Screw, 5/16-24 x .75 Price: $3.90 |
| 73 |
710-0602 |
Self-Tapping Screw, 5/16-18 x 1.00 Price: $4.05 |
| 74 |
913-04036 |
Valve Handle Link Price: $18.62 |
| 75 |
714-04040 |
Cotter Pin, Bow Tie Price: $1.28 |
| 76 |
781-0526A |
Hose Guard, 44" Price: $46.62 |
| 77 |
781-0538A |
Hose Guard, 48" Price: $31.24 |
| 78 |
711-0396 |
Spacer, .385 x .623 x .75 LG Price: $10.02 |
| 79 |
781-04418-0637 |
Outer Valve Bracket Price: $15.47 |
| 80 |
941-0475 |
Plastic Bushing, .380 ID Price: $3.74 |
| 81 |
718-04392 |
Coupling, .500 Price: $13.09 |
| 82 |
735-04103 |
Spider Bushing Price: $13.09 |
| 83 |
710-1842A |
Set Screws Price: $4.77 |
| 84 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 85 |
711-1135 |
CYLINDER MOUNTING PIN Not Available Price: |
| 86 |
714-0211 |
Cotter Pin, 3/16 x 2 Price: $3.82 |
