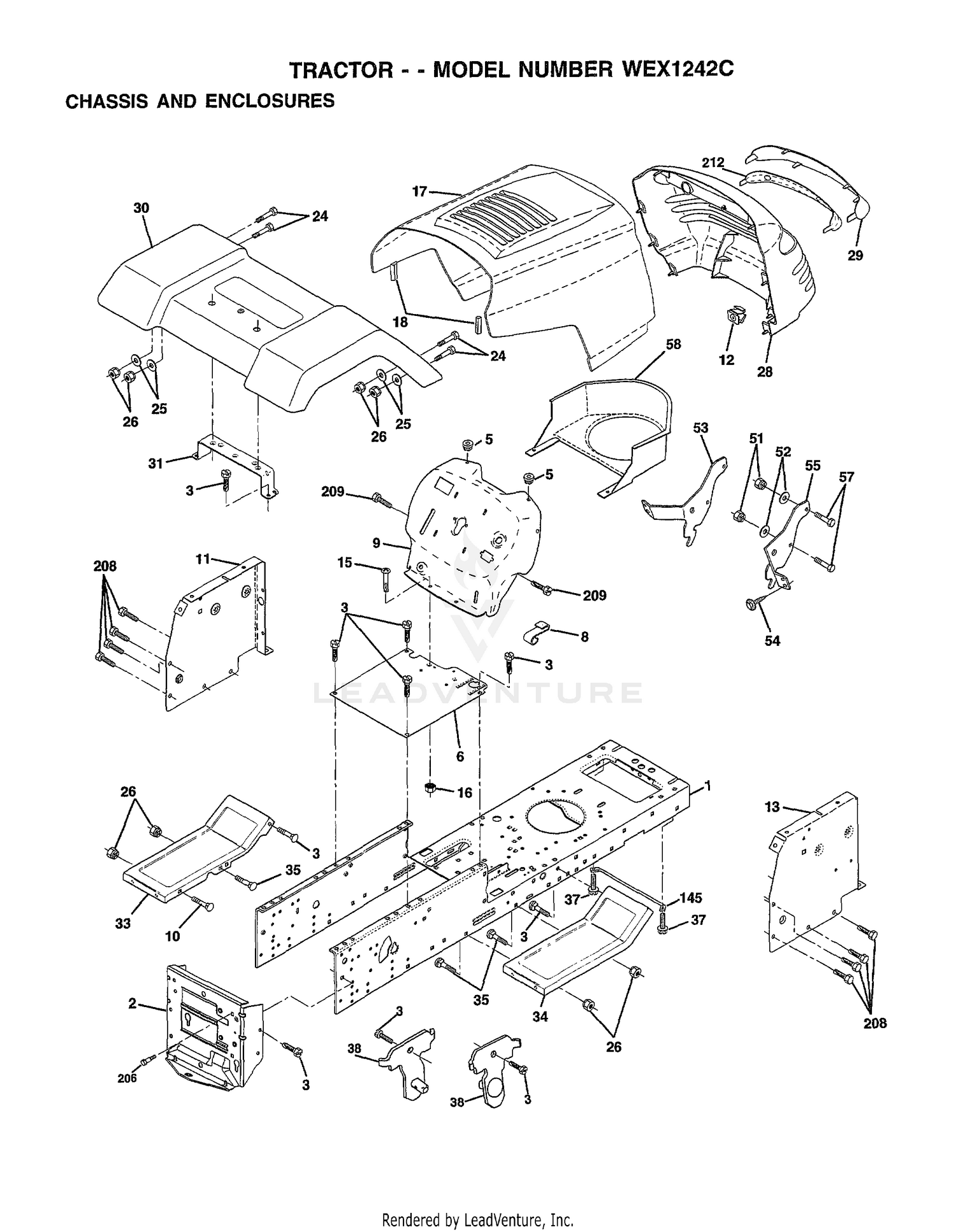

| Ref | Part Number | Description |
|---|
| 1 |
169831 |
CHASSIS Price: Call Us |
| 2 |
169061 |
DRAWBAR Price: Call Us |
| 2 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 3 |
17060612 |
SCREW Price: Call Us |
| 3 |
22-8500 |
O-RING Price: $18.87 |
| 4 |
105-7826 |
SPOOL Price: $312.56 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
22-8380 |
RETAINER Price: $17.86 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
22-8400 |
SPACER Price: $42.41 |
| 7 |
22-8390 |
RETAINER Price: $56.56 |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 8 |
22-8410 |
SPRING Price: $17.61 |
| 9 |
168347X011 |
DASH Price: Call Us |
| 9 |
22-8480 |
RING-SNAP Price: $49.87 |
| 10 |
22-8490 |
RING-SNAP Price: $6.51 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
22-8360 |
PIN Price: $43.02 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
22-8350 |
BALL Price: $12.28 |
| 13 |
172107X010 |
DASHBOARD Price: Call Us |
| 15 |
106-8070 |
DETENT BARREL ASM This part replaces 105-7828. Price: $128.27 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
105-7829 |
BALL-STEEL Price: $18.26 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
105-7830 |
SPRING Price: $32.46 |
| 17 |
159639X550 |
HOOD.STEEL.ASSY Price: Call Us |
| 18 |
105-7831 |
SCREW-SET Price: $19.52 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 19 |
105-7832 |
STUD-DETENT Price: $50.21 |
| 20 |
105-7833 |
SCREW-HSH Price: $14.53 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
140434 |
GRILL.BLK Price: Call Us |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 30 |
169467X550 |
FENDER Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X550 |
FOOTREST.LH.PERF. Price: Call Us |
| 34 |
105475X550 |
FOOTREST.RH.PERF. Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
169834 |
BRKT ASM PIVOT MOWER REAR Price: Call Us |
| 51 |
7380040 |
NUT LOCK Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 206 |
170165 |
BOLT SHOULDER Price: Call Us |
| 208 |
17670608 |
SCREW Price: Call Us |
| 209 |
17000612 |
SCREW Price: Call Us |
| 212 |
156229 |
INSERT LENS REFLECT Price: Call Us |
