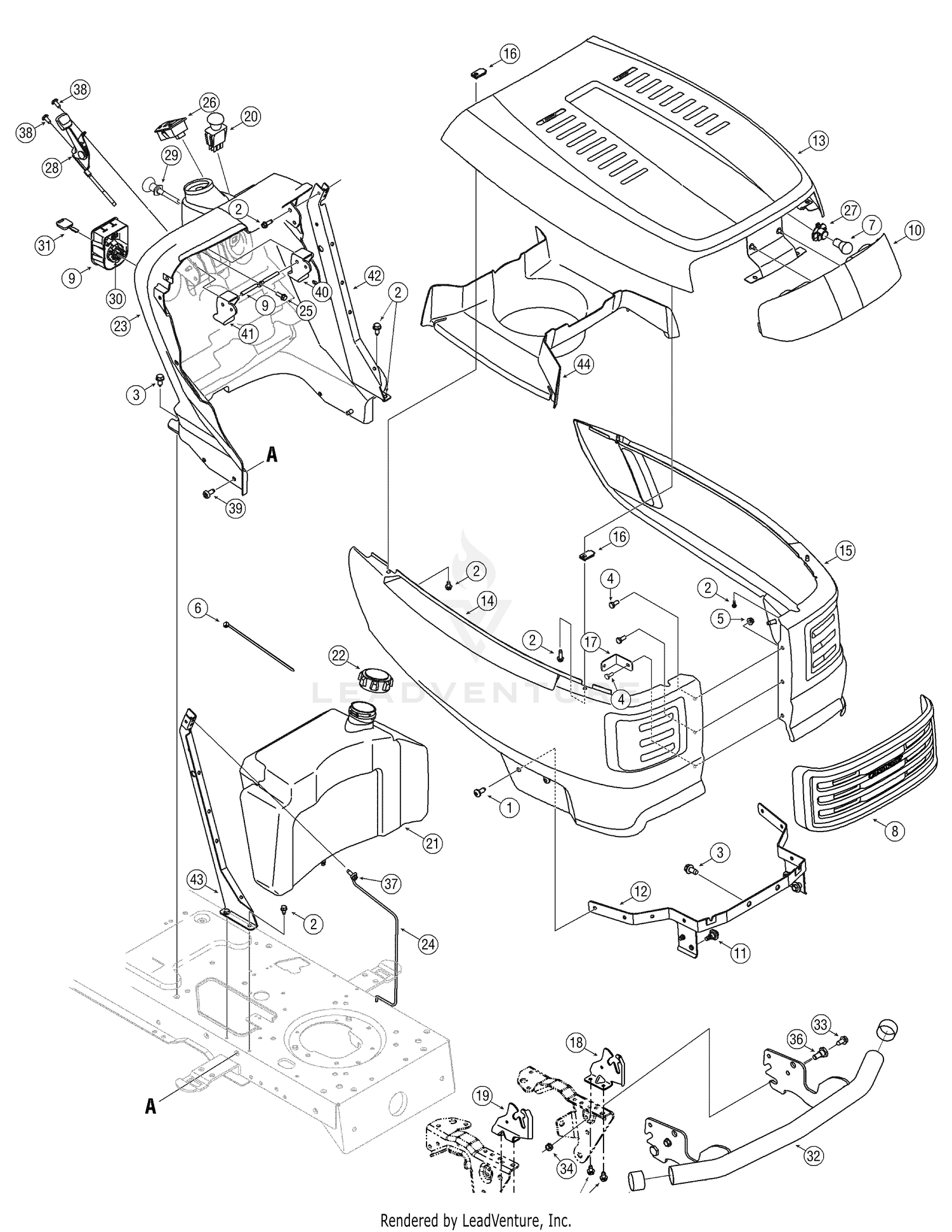

| Ref | Part Number | Description |
|---|
| 1 |
710-04593 |
Screw, 5/16-18, .375 Price: $3.82 |
| 2 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 3 |
710-0607 |
Screw, 5/16-18, 0.500 Price: $6.06 |
| 4 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 6 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 7 |
925-0963 |
Lamp This part replaces 725-0963. Price: $6.73 |
| 8 |
731-05745 |
GRILL INSERT Not Available Price: |
| 9 |
747-1196 |
Bent Lever Rod Price: $13.38 |
| 10 |
731-06414 |
LENS-T STYLE Not Available This part replaces 731-05357. Price: |
| 11 |
738-04091A |
Shoulder Screw, .43 x .29 This part replaces 738-04091. Price: $3.50 |
| 12 |
783-04606C |
Hood Pivot Bracket This part replaces 783-04606B. Price: $34.80 |
| 13 |
783-04827 |
HOOD Not Available Price: |
| 14 |
783-04828 |
SIDE PANEL (RH) Not Available Price: |
| 15 |
783-04829 |
SIDE PANEL (LH) Not Available Price: |
| 16 |
783-05223 |
HOOD FASTENER Not Available Price: |
| 17 |
783-05315-0637 |
HOOD BRACKET Not Available This part replaces 783-05315. Price: |
| 18 |
783-04841 |
HOOD PIVOT BRACKET Not Available Price: |
| 19 |
783-04840 |
Hood Pivot Bracket, RH Price: $16.32 |
| 20 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM This part replaces 725-04174. Price: $62.00 |
| 21 |
751-10283B |
FUEL TANK (3 GAL) This part replaces 751-10283A. Price: $153.84 |
| 22 |
751-0603B |
TANK CAP This part replaces 751-0603. Price: $20.42 |
| 23 |
731-06169 |
DASH PANEL TROY W/EVAC NO/WIND Not Available This part replaces 731-05005B. Price: |
| 24 |
747-04161 |
SUPPORT ROD (LH) Not Available Price: |
| 25 |
710-0895 |
Screw, 1/4-15, .750 Price: $5.82 |
| 26 |
925-06170B |
HOUR METER/SERVICE MINDER This part replaces 725-04036C. Price: $65.84 |
| 27 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 28 |
746P04365 |
THROTTLE CABLE 39" x .62 This part replaces 746-04365. Price: $37.74 |
| 29 |
946-04132 |
Choke Cable This part replaces 746-04132. Price: $31.29 |
| 30 |
925-06119C |
IGNITION MODULE SWITCH RMC (MAN PTO BLK) This part replaces 725-04227B. Price: $102.50 |
| 31 |
925-1745A |
IGNITION KEYS This part replaces 725-1744. Price: $15.91 |
| 32 |
683-04219B-0637 |
Bumper This part replaces 683-04219A. Price: $53.16 |
| 33 |
710-0726 |
Screw, 5/16-12, 0.750 Price: $3.82 |
| 34 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 35 |
731-05674 |
Bumper Cap Price: $4.40 |
| 36 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 37 |
710-0642 |
Screw, 1/4-20, 0.750 Price: $4.05 |
| 38 |
710-1017 |
Screw, 1/4-14, 0.625 Price: $7.26 |
| 39 |
710-1611B |
Screw, 5/16-18, 0.750 Price: $5.94 |
| 40 |
731-04728 |
BRAKE LEVER Not Available Price: |
| 41 |
731-04729 |
CUISE LEVER Not Available Price: |
| 42 |
783-04323F-0637 |
DASH SUPPORT Not Available This part replaces 783-04323D. Price: |
| 43 |
783-04285F-0637 |
DASH SUPPORT Not Available This part replaces 783-04285E. Price: |
| 44 |
731-05979 |
HOOD PLENUM T-STYLE Not Available Price: |
