Home / OPE / Engines / 08201532 - AX 212 All-Season / Engine - AX 212 AS - 08201532

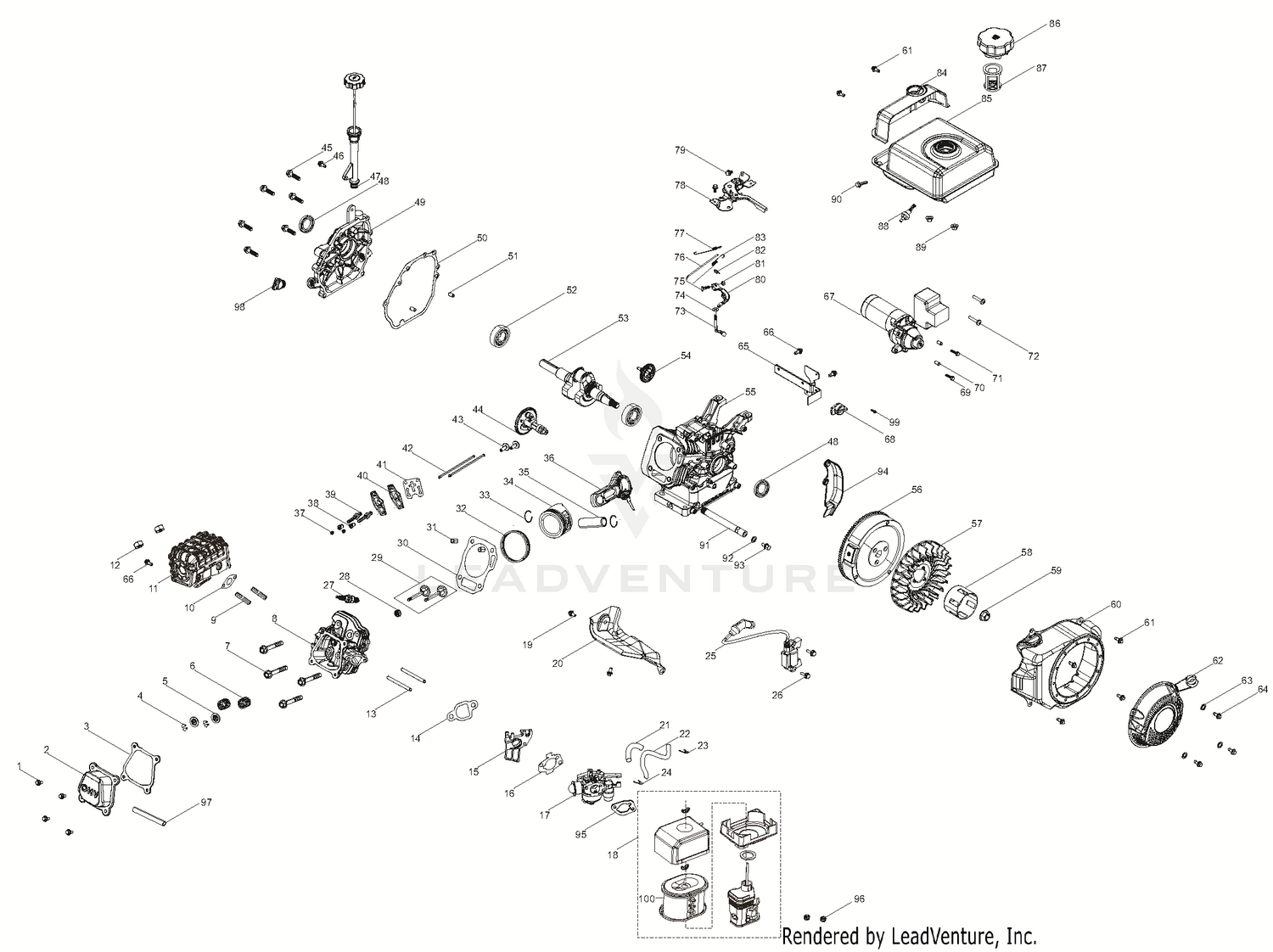

Engine - AX 212 AS - 08201532

Engine - AX 212 AS - 08201532

Parts (95)

RefPart NumberDescription
NS 20100416 KIT, HIGH ALT 3K-6K FT 212CCAS Price: Call Us
1 20100386 BLT, HEX-FLG M6X12 Price: $0.45
2 20100281 COVER, VALVE Price: $7.95
3 20100282 GASKET, VALVE COVER Price: $1.45
4 20100023 CLAMP, VALVE LOCK Price: $0.95
5 20100027 SEAT, VALVE SPRING Price: $1.45
6 20100019 SPRING, VALVE Price: $1.45
7 20100011 CYLINDER HEAD BOLT Price: $2.45
8 20100286 CYLD, HEAD SUBASM Price: $32.95
9 20100296 BLT, STUD Price: $1.45
10 20100297 GASKET, EXHAUST OUTLET Price: $0.95
11 20100387 ASM, MUFFLER Price: $24.45
12 20100166 TYPE 1 HEXAGON NUT Price: $0.95
13 20100388 BLT, STUD (BM=20) Price: $1.45
14 20100334 GASKET, CARBURETOR INSULATOR Price: $0.45
15 20100304 PLATE, CARBURETOR INSULATOR Price: $2.45
16 20100068 CARBURETOR SEAL GASKET Price: $1.45
17 20100389 ASM, CARBURETOR Price: $27.45
18 20100420 ASM, AIR CLEANER Price: $13.45
19 20100146 BOLT, M6X10 HEX FLANGE Price: $0.95
20 20100323 SHROUD, CLYD BODY Price: $3.45
21 20100306 JACKET, RUBBER Price: $0.45
22 20100336 TUBE, FUEL Price: $3.45
23 20100190 PIPE CLAMP Price: $0.95
24 20100189 PIPE CLAMP Price: $0.95
25 20100390 COIL, IGNITION Price: $15.45
26 20100391 BLT, HEX-FLG M6X25X1 Price: $0.45
27 20001113 SPARK PLUG - PLATINUM Price: $8.95
28 20100018 GUIDE, SEAL Price: $2.45
29 20100289 VALVE, SET Price: $9.95
30 20100287 GASKET, CYLD HD Price: $7.95
31 20100288 PIN, POSITION Price: $0.95
35 20100332 PIN, PISTION Price: $2.45
37 20100060 NUT, VALVE LOCK Price: $0.95
38 20100062 NUT, VALVE ADJUSTING Price: $1.45
39 20100061 ROCKSHAFT BOLT Price: $1.45
40 20100284 VALVE, ROCKER Price: $1.45
41 20100285 PLATE, SUBASM LIFTER STOPPER Price: $1.45
42 20100290 VALVE, LIFTER Price: $2.45
43 20100053 TAPPET, VALVE Price: $3.45
44 20100393 ASM, CAMSHAFT Price: $20.95
45 20100394 BLT, HEX-FLG M8X32X1.25 Price: $0.95
46 20100395 HEX, SOCKET-FLG M6X20 Price: $0.45
47 20100319 SUBASM, OIL DIPSTICK Price: $7.95
48 20100186 SEAL, OIL Price: $6.95
49 20100321 COVER, CRANKCASE Price: $21.95
50 20100318 GASKET, CRANKCASE Price: $4.45
51 20100179 POSITION PIN - TYPE A Price: $0.95
52 20100315 BRG-BALL, DEEP GROOVE Price: $6.95
54 20100339 ASM, GEAR GOVERNOR Price: $4.45
56 20100397 SUBASM, FLYWHEEL Price: $29.95
57 20100328 IMPELLER Price: $4.45
58 20100398 PULLEY, STARTER Price: $4.45
59 20100047 NUT, FLYWHEEL Price: $1.95
60 20100399 SHROUD Price: $15.45
61 20100386 BLT, HEX-FLG M6X12 Price: $0.45
62 20100401 ASM, STARTER RECOIL Price: $16.45
63 21596900 WSHR-FL, GR A Price: $0.95
64 20100144 BOLT, M6X8 HEX FLANGE Price: $0.95
65 20100340 SUBASM, CONTROL BOX SUPPORT Price: $6.95
66 20100403 BLT, HEX-FLG M6X14X1 Price: $0.45
67 20100131 STARTING MOTOR ASSEMBLY Price: $131.95
68 20100404 BRKT, ENGINE STOP MTG SWITCH Price: $4.45
69 20100391 BLT, HEX-FLG M6X25X1 Price: $0.45
70 20100178 POSITION PIN - TYPE A Price: $0.95
71 20100405 BLT, HEX-FLG M6X35X1 Price: $0.45
72 20100160 SCREW, PAN HEAD M4X55X0.7 Price: $0.95
73 20100310 ARM, GOVERNOR Price: $1.95
74 20100173 FLAT WASHER - GRADE A Price: $0.95
75 20100084 BOLT, GOVERNOR SUPPORT Price: $0.95
76 20100077 ROD, GOVERNEOR Price: $0.95
77 20100406 SPRG, GOVERNOR Price: $0.45
78 20100407 ASM, CONTORL THROTTLE Price: $5.45
79 20100146 BOLT, M6X10 HEX FLANGE Price: $0.95
80 20100081 ASM, GOVERNOR BRACKET Price: $3.45
81 20100167 HEXAGON NUT WITH FLANGE Price: $0.95
82 20100408 PIN, COTTER Price: $0.45
83 20100073 SPRING, THROTTLE VLV RETURNING Price: $0.45
84 20100101 FUEL TANK PLATE Price: $6.95
85 20100409 TANK, FUEL Price: $25.45
86 20100410 CAP, FUEL Price: $17.95
87 20100411 STRAINER, FUEL Price: $1.45
88 20100103 OUTLET WITH FILTER Price: $2.45
89 20100167 HEXAGON NUT WITH FLANGE Price: $0.95
90 20100413 BLT, HEX-FLG M6X32X1 Price: $0.95
91 20100006 TUBE, OIL DRAIN Price: $6.95
92 20100174 FLAT WASHER - GRADE A Price: $0.95
93 20100003 BOLT, DRAIN PLUG Price: $1.45
94 20100414 SHEILD, LOWER Price: $2.45
95 20100337 GASKET, AIR CLEANER SEAL Price: $2.45
96 20100167 HEXAGON NUT WITH FLANGE Price: $0.95
97 20100415 TUBE, BREATHER Price: $0.95
98 20100066 ASM, ENGINE OIL PLUG Price: $2.45
99 20100403 BLT, HEX-FLG M6X14X1 Price: $0.45
100 20100419 AIR CLEANER ELEMENT Price: $6.95
