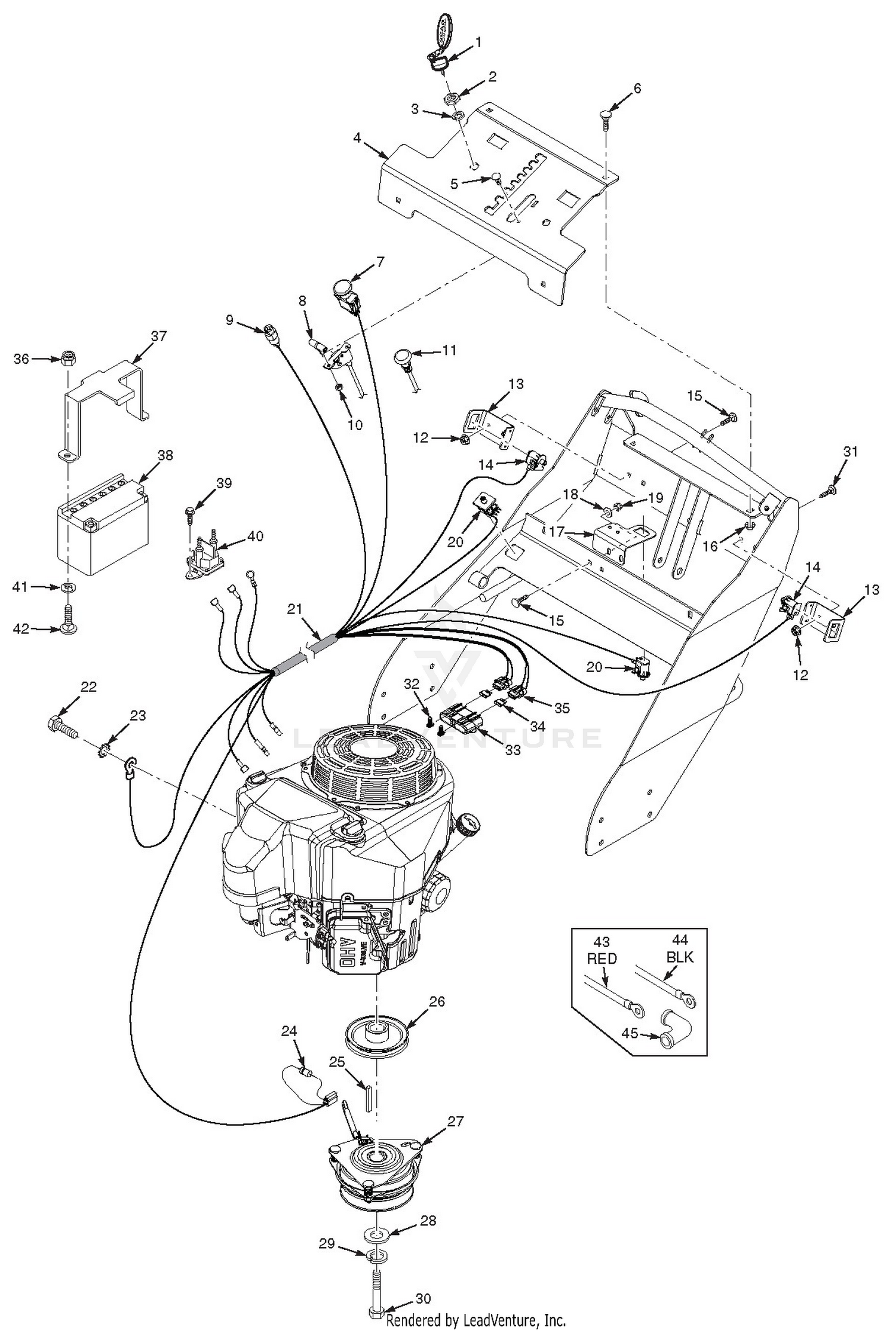

| Ref | Part Number | Description |
|---|
| 1 |
462069 |
Key Assembly w/Fob Price: Call Us |
| 1 |
483609 |
Key w/Shroud Price: Call Us |
| 2 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 3 |
48017-03 |
Lockwasher, 5/8" Internal Tooth Price: Call Us |
| 4 |
462684 |
Instrument Panel w/Decal Price: Call Us |
| 5 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 6 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 7 |
463034 |
SEALED PTO SWITCH KIT This part replaces 483957. Price: Call Us |
| 8 |
484665 |
Throttle Cable Price: Call Us |
| 9 |
48798 |
Key Switch Price: Call Us |
| 10 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 11 |
483552 |
Choke Control Price: Call Us |
| 12 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 13 |
425937 |
Bracket, Operator Presence Switch Price: Call Us |
| 14 |
48717 |
Switch Price: Call Us |
| 15 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 16 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 17 |
426568 |
Bracket, Neutral Switch Price: Call Us |
| 18 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 19 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 20 |
483473 |
Switch, Brake Interlock Price: Call Us |
| 21 |
485184 |
Wire Harness Price: Call Us |
| 22 |
04002-17 |
Bolt, Hex Head M8-1.25 x 14 Price: Call Us |
| 23 |
04031-03 |
Lockwasher, 5/16" External Tooth Price: Call Us |
| 24 |
483958 |
Diode Price: Call Us |
| 25 |
04063-03 |
Key, 1/4 x 1/4 x 2-1/2" Price: Call Us |
| 26 |
484595 |
Pulley, 4-1/2" Dia. 1" Bore Price: Call Us |
| 27 |
462610 |
Electric Clutch Assembly Price: Call Us |
| 28 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 Price: Call Us |
| 29 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 30 |
04102-06 |
Bolt, Hex Head 7/16-20 x 3" w/t Patch Price: Call Us |
| 31 |
04003-09 |
Bolt, Carriage 1/4-20 x 1-1/4" Price: Call Us |
| 32 |
482588 |
Clip, Wire Price: Call Us |
| 33 |
483571 |
Cover, Sealed Double Price: Call Us |
| 34 |
48298 |
Fuse, 20 Amp Price: Call Us |
| 35 |
483629 |
Fuse Holder Price: Call Us |
| 36 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 37 |
426140 |
Bracket, Battery Price: Call Us |
| 38 |
484805 |
Battery (not available through Scag) Price: Call Us |
| 39 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 This part replaces 04011-13. Price: Call Us |
| 40 |
483278 |
Solenoid, Sealed Price: Call Us |
| 41 |
04024-03 |
Nut, Push-On 5/16" Price: Call Us |
| 42 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 43 |
48029-09 |
Cable, Battery - Red Price: Call Us |
| 44 |
48029-25 |
Cable, Battery - Black Price: Call Us |
