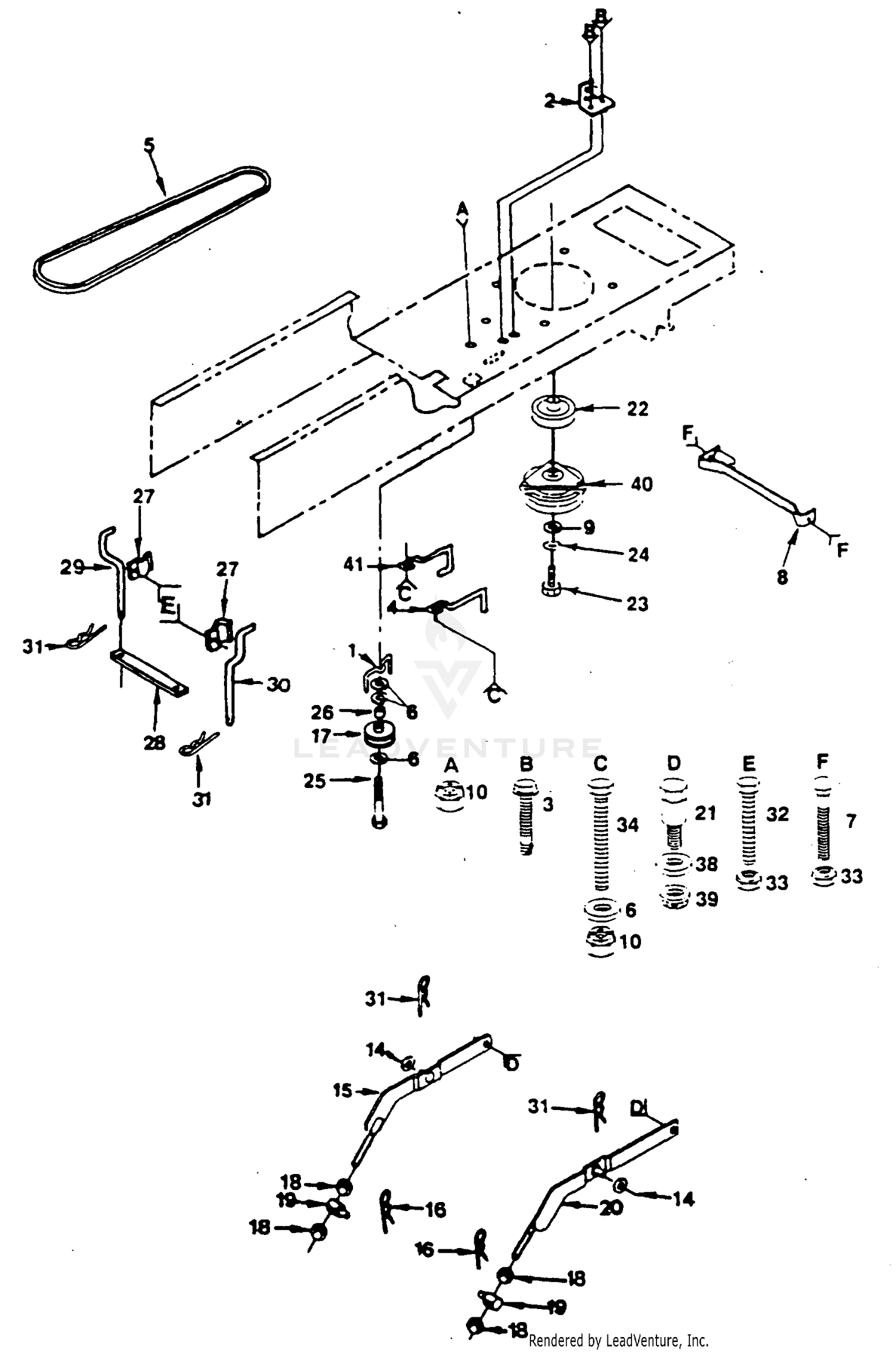

| Ref | Part Number | Description |
|---|
| 1 |
532109070 |
Keeper, Belt Price: $3.99 |
| 2 |
532108236 |
Bracket, Switch Price: $2.99 |
| 3 |
817021008 |
Screw, Hex, Tapping #10-24 x 1/2 Price: $1.99 |
| 4 |
532105730 |
Keeper, Belt, Engine Price: $2.99 |
| 5 |
532125907 |
V-Belt, Drive Price: $25.99 |
| 6 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 7 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 8 |
532109172 |
RETAINER KIT This part replaces 532109169. Price: $16.78 |
| 9 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $4.99 |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 14 |
532052160 |
Washer This part replaces 819171516. Price: $3.99 |
| 15 |
532121599 |
Arm Assembly, Suspension, L.H. Price: $21.14 |
| 16 |
532009135 |
Retainer, Spring This part replaces 532124960. Price: $2.99 |
| 17 |
532123674 |
Idler, Flat Price: $17.99 |
| 18 |
873350800 |
Nut Jam Hex 1/2-13 Unc This part replaces 873220800. Price: $1.99 |
| 19 |
532175689 |
Trunnion Blk Zinc This part replaces 532106308. Price: $2.99 |
| 20 |
532121598 |
Arm Assembly, Suspension, R.H. Price: $13.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
532105848 |
Bolt, Shoulder 3/8-16 Price: $2.02 |
| 22 |
532140189 |
Engine Pulley LT/YT This part replaces 532109841. Price: $29.99 |
| 23 |
871130768 |
Bolt, Hex Fin 7/16-20 UNF x 4.00 Price: Call Us |
| 24 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 25 |
874760644 |
Bolt, Hex 3/8-16 x 2-3/4 Price: $3.99 |
| 26 |
532124965 |
Spacer Price: $3.99 |
| 27 |
532106190 |
Clamp Price: $4.62 |
| 28 |
532123770 |
Strap, Locater Price: $4.62 |
| 29 |
532123662 |
Keeper, Belt, L.H. Price: $20.17 |
| 30 |
532123663 |
Keeper, Belt, R.H. Price: $20.17 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 32 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 34 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 38 |
532110739 |
Washer, Spring Price: $2.99 |
| 39 |
873680600 |
Nut This part replaces 873980600. Price: $1.99 |
| 40 |
532142600 |
KIT CLUTCH ELECT REPL This part replaces 532108218. Price: $313.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
