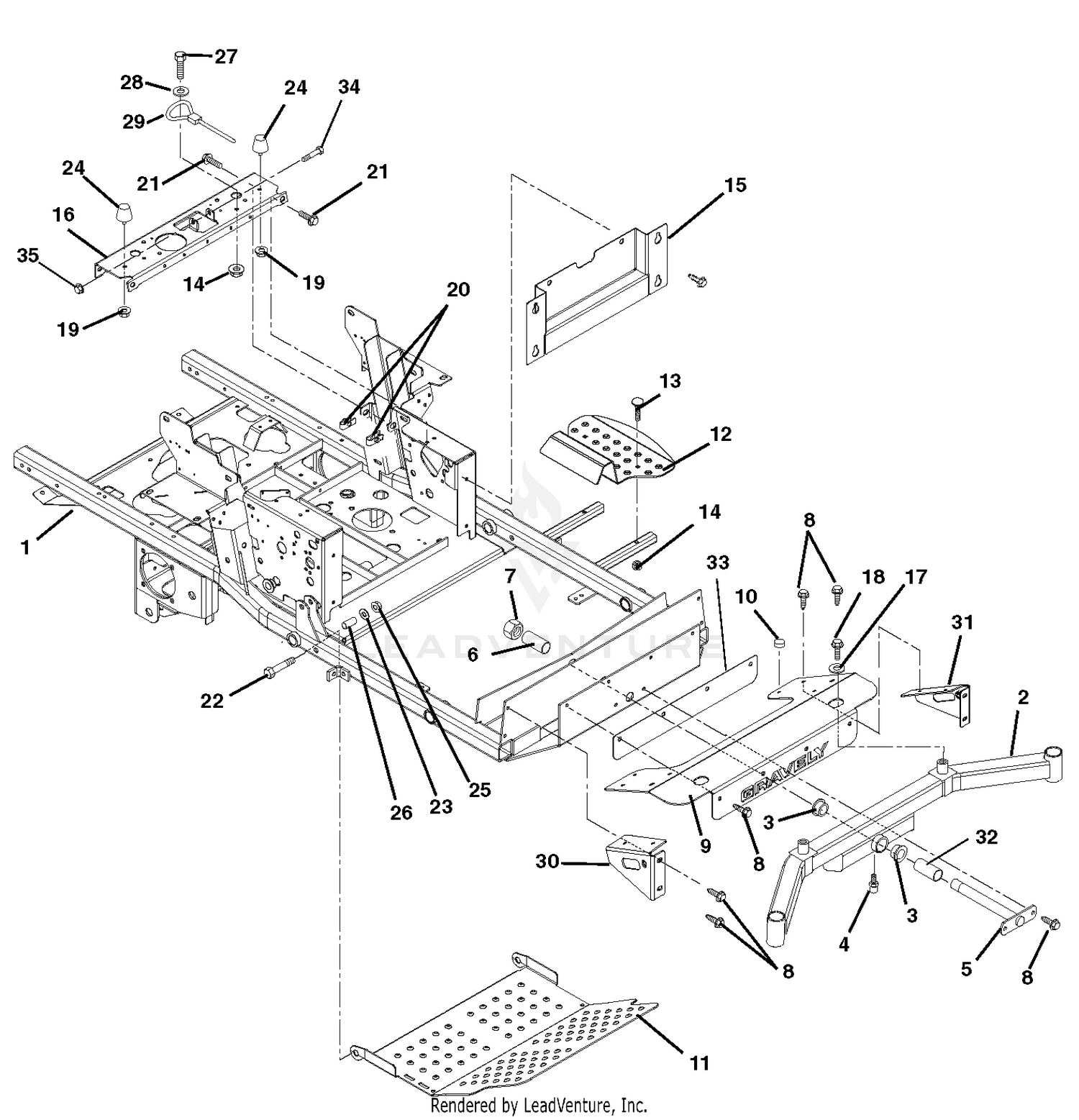

| Ref | Part Number | Description |
|---|
| 1 |
00595253 |
WLDMT, FRAME Price: $1,319.95 |
| 2 |
00978153 |
WMT, FRONT AXLE Price: $538.95 |
| 3 |
05500914 |
BUSH, FLG 1.25X1.50X1.00X.200 Price: $19.95 |
| 4 |
07012700 |
FTG,LUBE 45 DEG Price: $3.95 |
| 5 |
09232000 |
PIN - AXLE Price: $61.45 |
| 6 |
09231900 |
SPACER 1.009 X 1.250 X 4.23 Price: $19.45 |
| 7 |
06543200 |
NUT-LK-NYL 1.0-14 YWZC Price: $8.95 |
| 8 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 9 |
03998953 |
AXLE COVER Price: $111.45 |
| 10 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 11 |
00444051 |
PANEL, INSPECTION Price: $112.45 |
| 12 |
09231251 |
STEP, INGRESS (BLACK) Price: Call Us |
| 13 |
06200324 |
BLT, RHSN .31-18X1.75 G5 ZCC This part replaces 06220200. Price: $2.95 |
| 14 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 15 |
00483153 |
PLATE - KICK Price: $69.45 |
| 16 |
04044953 |
BRACE, SEAT CROSS WITH LATCH Price: Call Us |
| 17 |
06400829 |
WSHR-FLT .640X1.75X.250 This part replaces 06435200. Price: $3.95 |
| 18 |
05975000 |
BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45 |
| 19 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 20 |
07053300 |
NUT-RTNR .375-16X.37 Price: $3.45 |
| 21 |
07049900 |
BLT-SERHFWH .375-16X1.0 YWZC Price: $2.45 |
| 22 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 23 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 24 |
07533000 |
BUMPER, RUBBER CONE,STUD MOUNT Price: $13.45 |
| 25 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 26 |
05532100 |
BSHG-FLG .515X.750X.285X1.120 Price: $6.25 |
| 27 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 28 |
06401104 |
WSHR, FLT .340X1.125X.135 ZCC This part replaces 06446300. Price: $3.95 |
| 29 |
06900010 |
CABLE, SEAT PROP. Price: $39.95 |
| 30 |
03972253 |
WMT - RH AXLE COVER SUPPORT Price: $66.95 |
| 31 |
03972353 |
WMT - LH AXLE COVER SUPPORT Price: $66.95 |
| 32 |
00978200 |
SPCR, 1.25ODX1.0IDX3.63 Price: $22.95 |
| 33 |
03999051 |
PLATE, BACKER Price: $14.95 |
| 34 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
