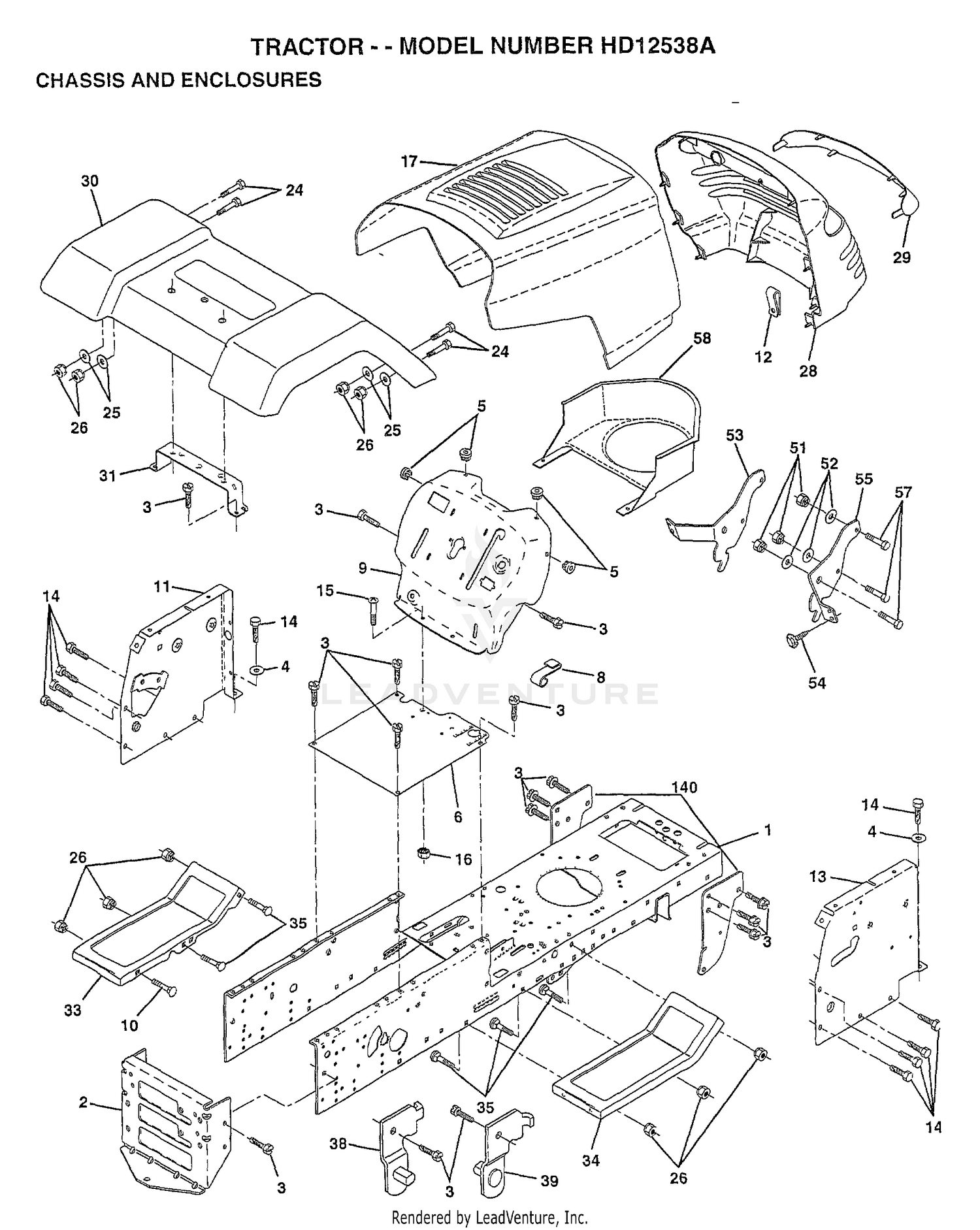

| Ref | Part Number | Description |
|---|
| 1 |
155051 |
CHASSIS ASM Price: Call Us |
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3547 |
PULLEY-DRIVEN, DOUBLE Price: $218.26 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 6 |
155924X011 |
SADDLE-SILKSCREEN Price: Call Us |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 9 |
147627X011 |
DASH.SILKSCREENED Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
139394X550 |
SUB= 159639X550 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157539 |
GRILLE Price: Call Us |
| 29 |
150209 |
LENS QUADRA Price: Call Us |
| 30 |
109872X550 |
FENDER.PNT. Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X550 |
FOOTREST.LH.PERF. Price: Call Us |
| 34 |
105475X550 |
FOOTREST.RH.PERF. Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
