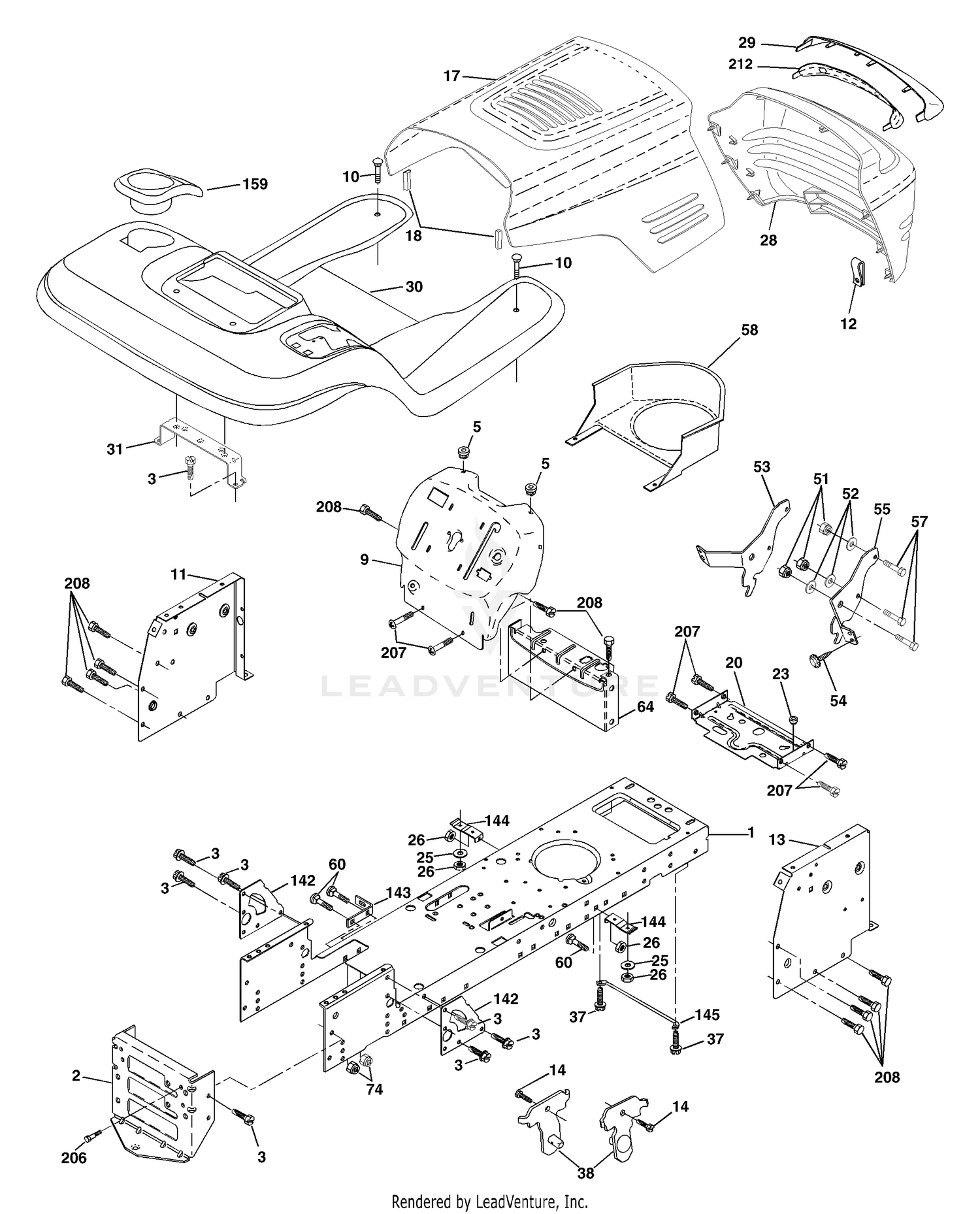

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
60-5860 |
PLUG Price: $27.34 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 2 |
60-5720 |
O-RING Price: $1.86 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
60-5760 |
PIN Price: $2.58 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
60-5710 |
PLUG Price: $13.84 |
| 7 |
60-5780 |
GEAR Price: $268.84 |
| 8 |
60-5730 |
DISC Price: $1.52 |
| 9 |
532168346 |
DASH SLKSCRN. This part replaces 532171682. Price: $29.54 |
| 9 |
60-5820 |
SPRING Price: $12.04 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
60-5770 |
DISCONTINUED Price: Call Us |
| 11 |
42-3140 |
CAPSCREW Price: $9.42 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
49-2640 |
SEAL-SHAFT Price: $14.83 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 13 |
60-5890 |
WASHER Price: $4.68 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
49-2660 |
FRONT PLT ASM RH Price: $449.50 |
| 16 |
56-6710 |
O-RING Price: $3.82 |
| 17 |
49-2680 |
MOLDED O-RING Price: $4.51 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
49-2700 |
DISCONTINUED Price: Call Us |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 19 |
49-2690 |
DISCONTINUED Price: Call Us |
| 20 |
49-2670 |
WEAR PLATE Price: $66.47 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $9.99 |
| 21 |
60-5740 |
DISCONTINUED Price: Call Us |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 23 |
92-9253 |
VALVE-RELIEF Price: $461.84 |
| 24 |
92-9255 |
O-RING Price: $2.27 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 25 |
92-9256 |
WASHER-BACKUP Price: $4.18 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 26 |
92-9254 |
O-RING Price: $7.70 |
| 28 |
532179845 |
GRILLE/LENS ASM This part replaces 532170475. Price: $173.99 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
583713401 |
KIT.FENDER.PNT.STL.W/CPH. This part replaces 532181001. Price: $249.99 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532174930 |
DUCT, INTAKE AIR Price: $19.99 |
| 60 |
872140606 |
Bolt RDHD SQNK 3/8-16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 159 |
532155123 |
CUPHOLDER, BLK This part replaces 532166508. Price: $24.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
