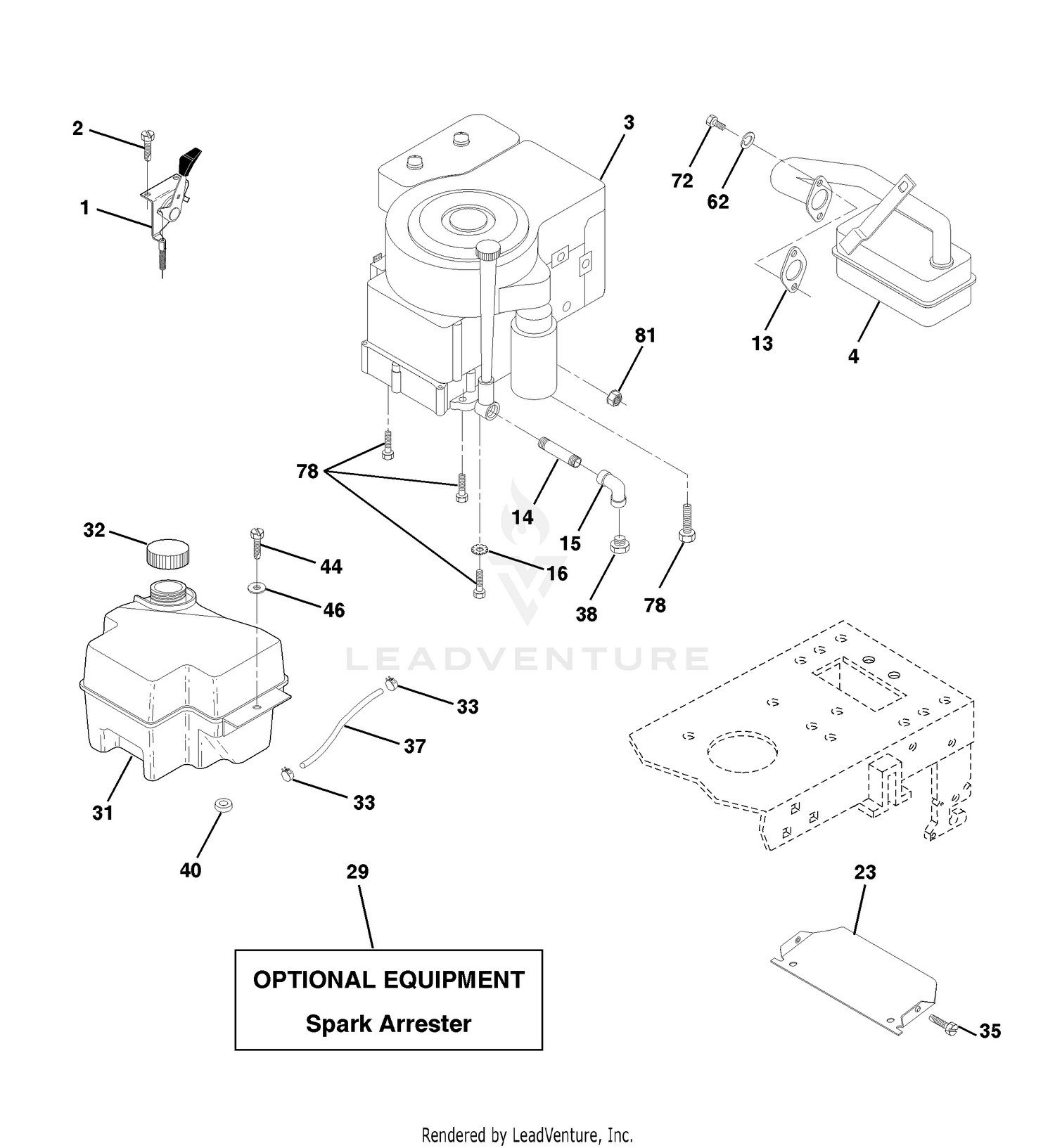

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99 |
| 1 |
67-4630 |
ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
67-4670 |
NUT Price: $1.65 |
| 3 |
67-3260 |
WASHER Price: $1.58 |
| 4 |
42-9660 |
WASHER Price: $2.50 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
43-0370 |
DISCONTINUED Price: Call Us |
| 6 |
67-4870 |
REAR BEARING Price: $46.57 |
| 7 |
67-4860 |
DISCONTINUED Price: Call Us |
| 8 |
67-4930 |
DISCONTINUED Price: Call Us |
| 9 |
67-4890 |
REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 |
67-4880 |
DISCONTINUED Price: Call Us |
| 11 |
67-4900 |
DISCONTINUED Price: Call Us |
| 12 |
67-4910 |
REGULATOR ASSEMBLY Price: $649.68 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED Price: $8.99 |
| 13 |
67-4920 |
BRUSH Price: $19.03 |
| 14 |
43-0510 |
BRUSH SPRNG Price: $6.49 |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3" Price: $3.12 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 15 |
67-4830 |
FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
67-4810 |
PULLEY SET Price: $48.24 |
| 17 |
51-7850 |
NUT SET This part replaces 43-1920. Price: $1.46 |
| 18 |
67-4840 |
SCREW SET Price: $5.18 |
| 19 |
67-4850 |
FRONT BEARING Price: $24.45 |
| 20 |
67-4820 |
BOLT SET Price: $9.73 |
| 21 |
67-4620 |
SPACER Price: $17.73 |
| 22 |
67-4640 |
BOLT Price: $9.56 |
| 23 |
532156123 |
SHIELD HEAT Price: $6.23 |
| 23 |
75-4940 |
BRACE Price: $20.68 |
| 24 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 25 |
54-8660 |
WASHER Price: $2.23 |
| 26 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532140280. Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
