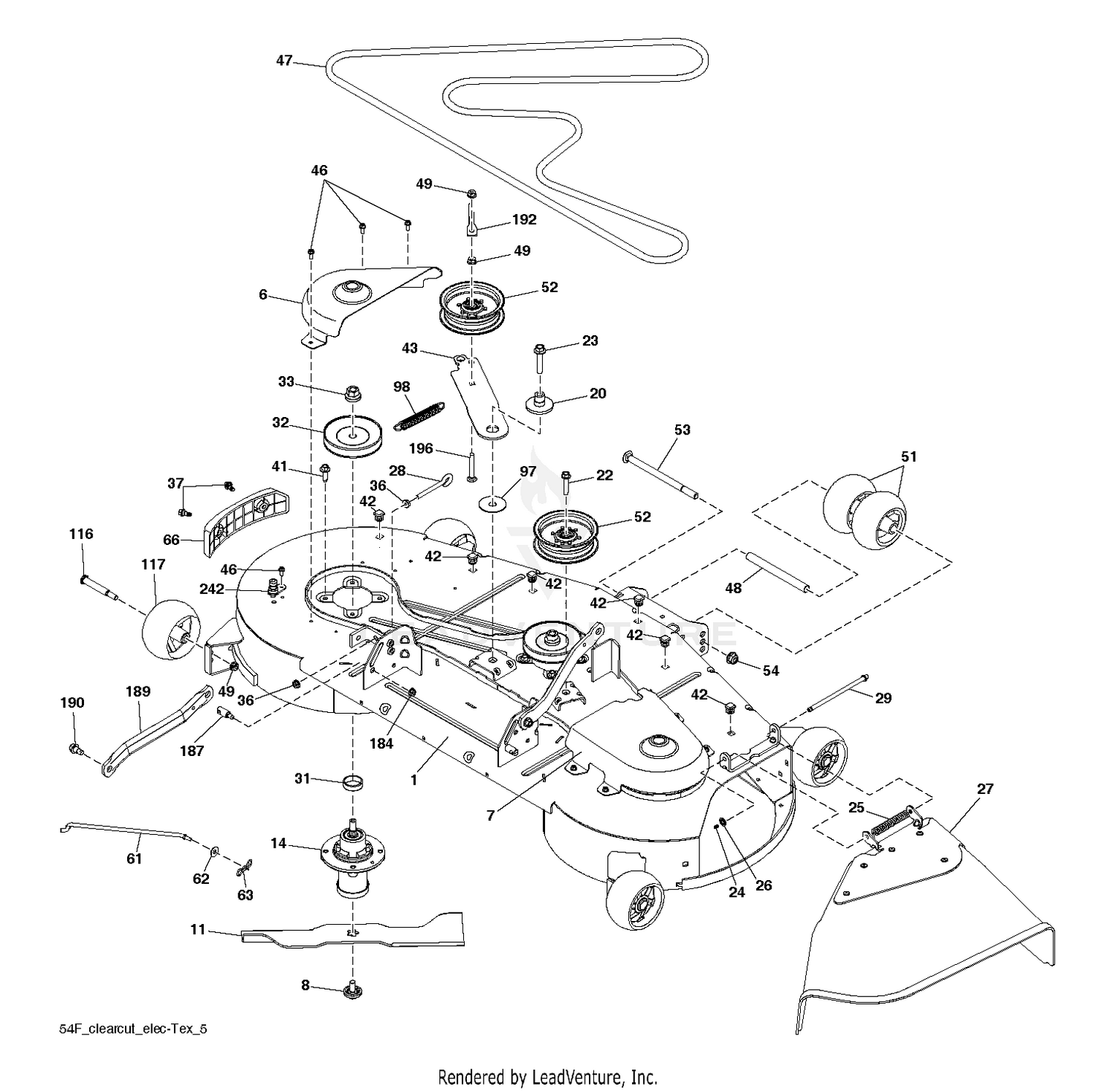

| Ref | Part Number | Description |
|---|
| 1 |
592618801 |
SERVICE KIT KIT.SVC.WELDMENT.5 This part replaces 588549002. Price: $1,199.99 |
| 6 |
590304303 |
COVER 54 CLEARCUT, LH MANDREL, Price: $9.99 |
| 7 |
590304203 |
COVER 54 CLEARCUT RH MANDREL G Price: $22.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 10 |
112-0185 |
TAPPET Price: $25.58 |
| 11 |
582760502 |
BLADE CC54 PZ STYLE HI LIFT BL Price: $34.99 |
| 14 |
539131898 |
MANDREL ASM, CAST IRON This part replaces 539131767. Price: $69.99 |
| 20 |
127-0421 |
ROD-PUSH This part replaces 98-9509. Price: $5.90 |
| 20 |
532197236 |
SPACER.IDLER.PULLY.HUB Price: $7.99 |
| 22 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 23 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
590632201 |
DEFLECTOR ASSY 54 CLEARCUT RES Price: $64.99 |
| 28 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
115-4128 |
CAMSHAFT ASM Price: $511.64 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 36 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 37 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 40 |
98-7449 |
SCREW-SET Price: $1.83 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
596952201 |
Plugs Price: $2.99 |
| 43 |
582219602 |
ARM IDLER ARM, CLEARCUT 54 BLA Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
582236301 |
BELT CLEARCUT 54, TRACTOR DECK Price: $59.99 |
| 48 |
574196502 |
Tubes This part replaces 574196501. Price: $17.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
98-9512 |
GEAR-CAM Price: $246.18 |
| 51 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 53 |
594944501 |
Bolts This part replaces 872140864. Price: $7.99 |
| 54 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 60 |
98-9378 |
KEY-FEATHER Price: $1.23 |
| 61 |
596274401 |
Rods This part replaces 532400337. Price: $9.99 |
| 62 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 63 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 66 |
590732501 |
BUMPER ASSY 54 CLEARCUT TRIM S Price: $8.99 |
| 70 |
98-9510 |
STOPPER-CAMSHAFT Price: $12.25 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 90 |
98-9649 |
IDLE GEAR ASM Price: $88.78 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 100 |
98-9650 |
BUSHING-GEAR, IDLE Price: $9.36 |
| 110 |
98-9535 |
COLLAR-GEAR, IDLE Price: $2.37 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
98-9536 |
COLLAR-GEAR, IDLE Price: $3.41 |
| 130 |
98-9534 |
CIRCLIP-GEAR, IDLE Price: $1.69 |
| 140 |
98-9533 |
SHAFT-GEAR, IDLE Price: $101.45 |
| 184 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 196 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
