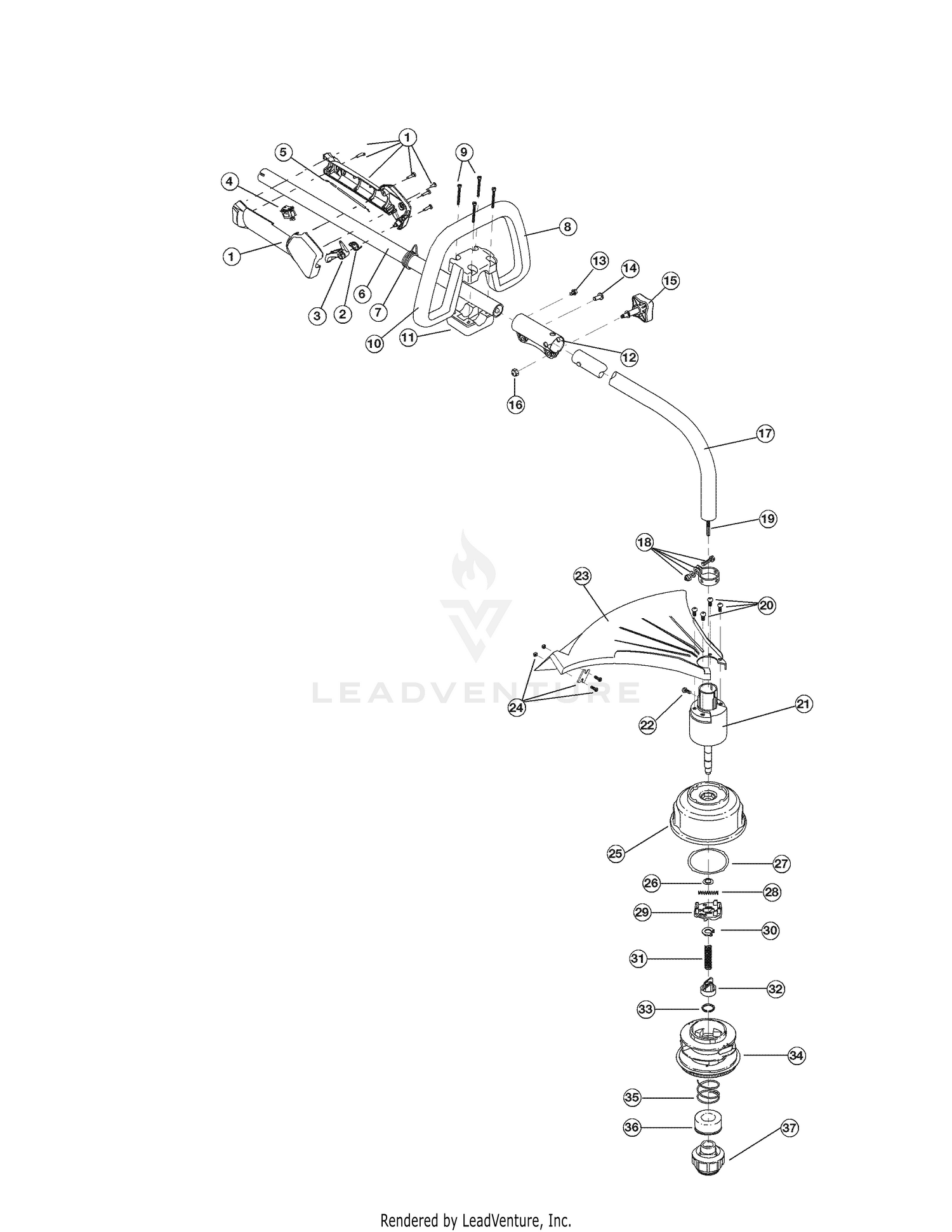

| Ref | Part Number | Description |
|---|
| 1 |
753-04234 |
Throttle Housing Assembly (includes 2-4) Price: $18.62 |
| 2 |
791-182690 |
Throttle Trigger Spring Price: $7.01 |
| 3 |
753-04119 |
Throttle Trigger Price: $6.56 |
| 4 |
791-182405 |
Switch Price: $9.29 |
| 5 |
791-182877 |
Throttle Cable Assembly Price: $15.04 |
| 6 |
753-04236 |
Upper Drive Shaft Housing Assembly Price: $87.52 |
| 7 |
4301A |
SHOULDER STRAP CLAMP Price: $3.06 |
| 7 |
791-610327 |
Harness Clip Price: $28.62 |
| 8 |
791-180869 |
D-HANDLE A Not Available Price: |
| 9 |
791-181070 |
Screw Price: $3.95 |
| 10 |
791-182167 |
HANDLE-LOOP Not Available Price: |
| 11 |
791-182168 |
BASE-LOOP HANDLE Not Available Price: |
| 12 |
753-1190 |
Split boom Coupler (includes 13-16) Price: $20.56 |
| 13 |
791-182057 |
Screw Price: $3.93 |
| 14 |
791-181617 |
Bolt Price: $4.59 |
| 15 |
697-00661-9 |
CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 16 |
791-181886 |
NUT, ELASTIC LOCK Not Available Price: |
| 17 |
753-1218 |
Lower Drive Shaft Housing Assembly Price: $92.90 |
| 18 |
791-153597 |
CLAMP ASSEMBLY-LOWER Not Available Price: |
| 19 |
791-181852 |
Lower Flexible Drive Shaft Price: $51.93 |
| 20 |
791-181858 |
SCREW, #10-24X.50 M Not Available This part replaces 791-180531. Price: |
| 21 |
791-181857 |
BUSHING HO Not Available Price: |
| 22 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 23 |
791-181659 |
SHIELD ASSEMBLY WITH BLADE Not Available Price: |
| 24 |
791-181823 |
BLADE ASSEMBLY Not Available Price: |
| 25 |
791-181457 |
Outer Spool Assembly (includes 26) Price: $34.96 |
| 26 |
791-181458 |
Retainer Price: $3.93 |
| 27 |
791-181561 |
Thrust Washer Price: $3.86 |
| 28 |
791-181459 |
SPRING, SPEED SPOOL S Not Available Price: |
| 29 |
753-04257 |
Slider Price: $6.92 |
| 30 |
791-181532 |
E-Clip Price: $3.86 |
| 31 |
791-181531 |
SPRING, PLUNGER Not Available Price: |
| 32 |
791-181462 |
PLUNGER, SPEED SPO Not Available Price: |
| 33 |
791-181463 |
C-CLIP Not Available Price: |
| 34 |
791-181460B |
Reel and Line Assembly This part replaces 791-181464. Price: $30.51 |
| 35 |
791-181465B |
Large Spring Price: $10.07 |
| 36 |
791-181467 |
SEAL, SPEED SPOOL Not Available Price: |
| 37 |
791-181468B |
BUMP HEAD KNOB ASSEMBLY Not Available Price: |
