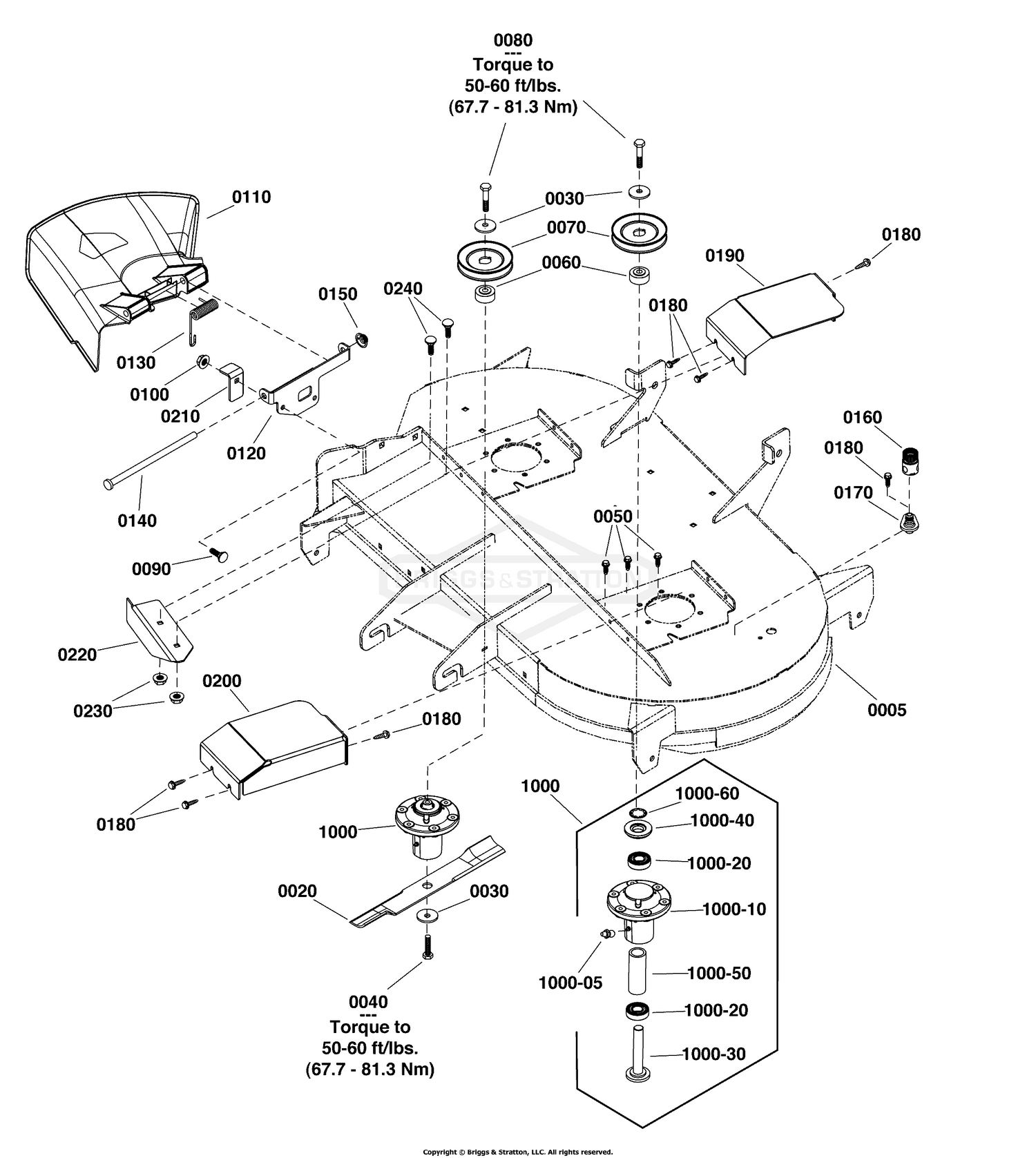

| Ref | Part Number | Description |
|---|
| 0005 |
1687949 |
KIT-MOWER DECK Price: $1,271.99 |
| 0020 |
1758878BMYP |
BLADE, 21.31" Long Price: $25.33 |
| 0030 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0040 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0050 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0060 |
1736445YP |
SPACER, Pulley Price: $12.47 |
| 0070 |
1737835YP |
PULLEY, 4.50 Price: $18.70 |
| 0080 |
703171 |
HHCS This part replaces 705424. Price: $3.50 |
| 0090 |
703815 |
BOLT, RD SQ 3/8-16X1 Price: $3.72 |
| 0100 |
5025128SM |
NUT, 3/8-16 HEX SERRA This part replaces 703793. Price: $2.97 |
| 0110 |
7104733YP |
CHUTE, SIDE DISCHARGE Price: $81.65 |
| 0120 |
1758982AYP |
BRACKET, DEFLECTOR This part replaces 1758982BMYP. Price: $37.82 |
| 0130 |
7035813SM |
SPRING, TORSION, SIDE Price: $22.45 |
| 0140 |
7104640YP |
ROD, Deflector Price: $26.08 |
| 0150 |
703179 |
PUSHNUT, CAP TYPE Price: $3.17 |
| 0160 |
1756246YP |
CONNECTOR, Washout Port Price: $14.39 |
| 0170 |
1756247YP |
ADAPTER, Washout Port Price: $5.78 |
| 0180 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 703235. Price: $3.94 |
| 0190 |
1758991BMYP |
COVER, Pulley, RH Price: $58.12 |
| 0200 |
1758992BMYP |
COVER, Pulley, LH Price: $58.97 |
| 0210 |
1758593BMYP |
PROP, DEFLECTOR Price: $16.98 |
| 0220 |
1758581BMYP |
BAFFLE, Pinchoff Price: $16.74 |
| 0230 |
703115 |
NUT Price: $3.06 |
| 1000 |
84003173 |
ARBOR ASSEMBLY Price: $89.58 |
