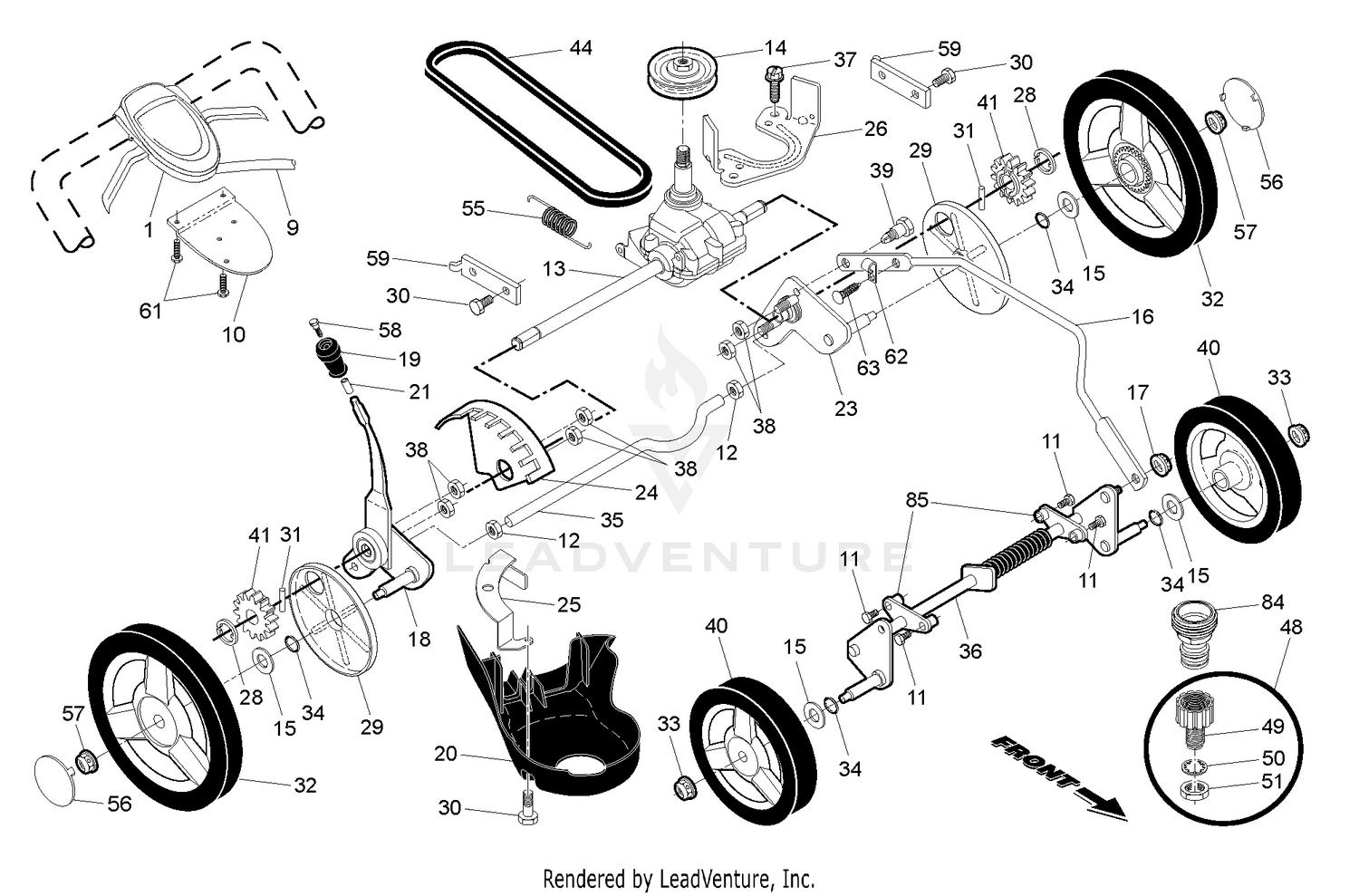

| Ref | Part Number | Description |
|---|
| 9 |
532431650 |
CABLE.CONTROL.22RGD.GEN2 Price: $37.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
817060408 |
SCREW Price: $4.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER This part replaces 532434564. Price: $129.99 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 15 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 16 |
532430030 |
ROD.CONNECTING.RGD.22+.HW.BLAC Price: $17.99 |
| 17 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 18 |
532441420 |
KIT.SEL.ASM.22+HI-WHEEL.ZINC Price: $49.99 |
| 19 |
532433996 |
KNOB.SEL.SPRING.22+.SP.RIB.BLK Price: $5.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 This part replaces 532427023. Price: $19.99 |
| 21 |
532435242 |
SCREW.PLASTIC.ANCHOR.5/16 Price: $4.99 |
| 24 |
532433511 |
BRACKET.WHL.ADJ.9.POS.W/PAD Price: $9.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 30 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 41 |
532428783 |
PINION.12.TEETH.RGD.22+HW Price: $6.99 |
| 44 |
532421527 |
BELT.DRIVE.RGD.PLUS Price: $22.99 |
| 48 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 49 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 50 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 51 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 55 |
532406558 |
SPRING Price: $6.99 |
| 56 |
532441333 |
HUBCAP.H.3SPK.GREY Price: $9.99 |
| 57 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 58 |
532435241 |
SCREW.12-14X1.500 Price: $3.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 62 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 63 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 85 |
532439077 |
BRACKET.FRT.AXLE.SUPPORT Price: $19.99 |
