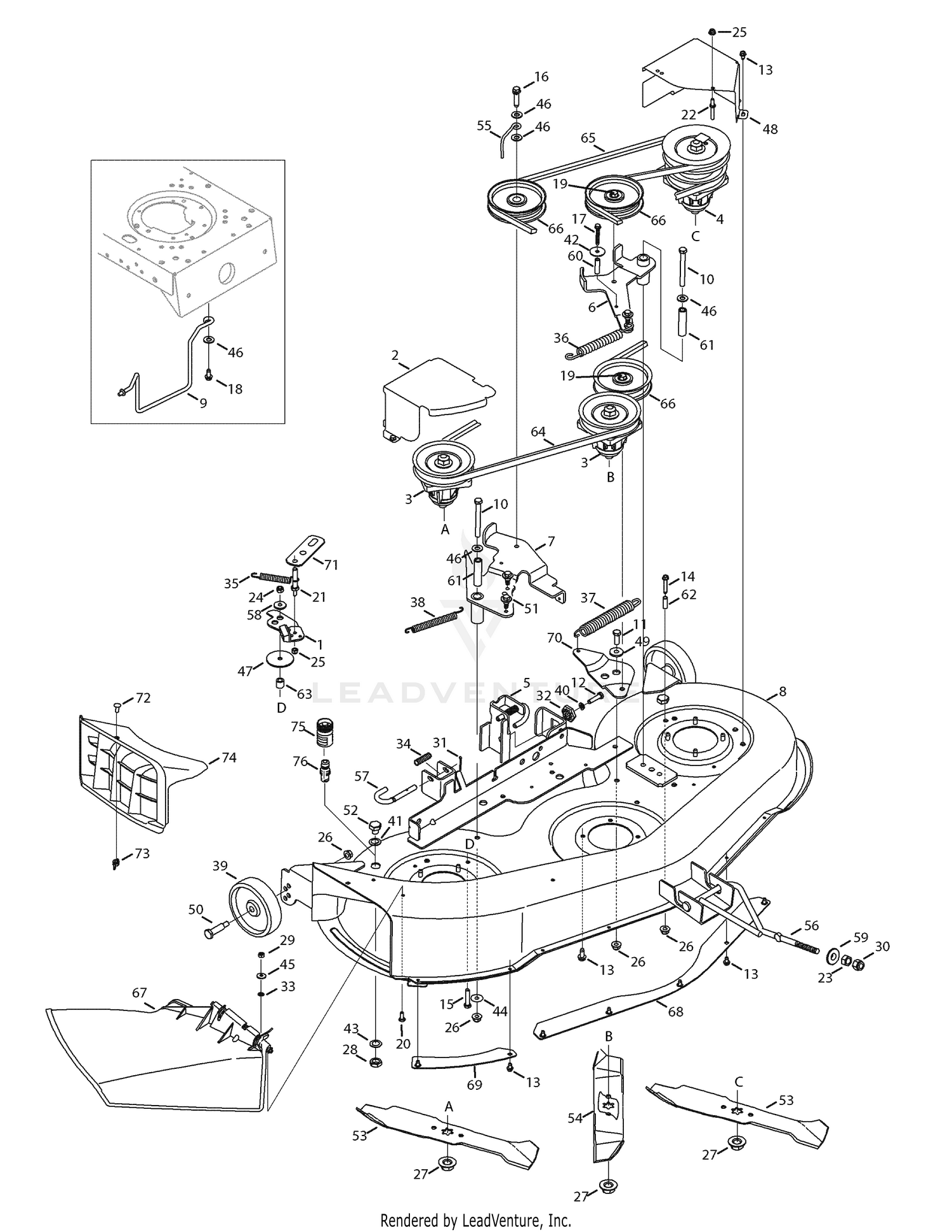

| Ref | Part Number | Description |
|---|
| 1 |
97116 |
Deck Brake Assembly Price: $48.57 |
| 2 |
17258E-0637 |
Deck Belt Cover RH Price: $47.49 |
| 3 |
918-0240C |
Spindle Assembly, 5.00 Dia. This part replaces 918-0430B. Price: $127.04 |
| 4 |
918-04134D |
Spindle Ass’y, Double Pulley This part replaces 918-04134C. Price: $144.06 |
| 5 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 6 |
683-04250A-0637 |
Idler Bracket Assembly LH Not Available Price: |
| 9 |
683-04414-0637 |
Belt Keeper Bracket Price: $22.21 |
| 10 |
710-04754 |
Hex Screw, 3/8-16 x 3.50 Not Available Price: |
| 11 |
710-0514 |
Hex Screw, 3/8-16 x 1.00 Price: $3.78 |
| 12 |
710-0528 |
Hex Screw, 5/16-18 x 1.25 Price: $3.90 |
| 13 |
710-0599 |
Screw, 1/4-20 x .50 Price: $3.86 |
| 14 |
710-0778 |
Screw, 1/4-20 x 1.50 Price: $3.90 |
| 15 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 16 |
710-1007 |
Sems Screw, 3/8-16 x 1.50 Price: $5.71 |
| 17 |
710-1026 |
Screw, 1/4-20 x 1.75 Price: $5.94 |
| 18 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 19 |
710-1315 |
Screw, 3/8-16, x 1.25 Price: $3.90 |
| 20 |
710-3015 |
Screw, 1/4-20 x .75 Price: $3.65 |
| 21 |
711-04636 |
PIN 1/4-20:3/8 x 2.685 Not Available Price: |
| 22 |
911-0993 |
Belt Guard Pin, 1/4 x 1.43 lg. Price: $3.90 |
| 23 |
712-0206 |
HEX NUT This part replaces 912-0206. Price: $3.90 |
| 24 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 25 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 26 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 27 |
712-0417A |
HEX NUT Price: $6.50 |
| 28 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 29 |
712-3006 |
HEX NUT Price: $4.05 |
| 30 |
712-3083 |
Hex Lock Nut, 1/2-13 Price: $4.05 |
| 31 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 32 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 33 |
726-0233 |
Push Nut, .25 ID x .50 OD Price: $3.93 |
| 34 |
932-0306A |
Compression Spring .531 x 1.75 Price: $7.69 |
| 35 |
932-0429A |
Extension Spring, .50 x 3.97 Lg. Price: $8.29 |
| 36 |
732-04400 |
Extension Spring, .75 x 6.835 Lg. Price: $9.97 |
| 37 |
932-0594A |
Extension Spring, .91 x 7.33 Lg. Price: $13.74 |
| 38 |
732-0814 |
Extension Spring, .56 x 5.52 lg. Price: $7.29 |
| 39 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 40 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 41 |
736-0187 |
Flat Washer, .64 x 1.24 x .06 Price: $4.02 |
| 42 |
736-0211 |
Flat Washer, .285 x 1.25 x .08 This part replaces 936-0211. Price: $5.99 |
| 43 |
736-0225 |
Lock Washer, 5/8 Int. Tooth Price: $3.90 |
| 44 |
736-0258 |
Flat Washer, .385 x 1.0 x .135 Price: $3.93 |
| 45 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 46 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 47 |
736-0418A |
Flat Washer, .406 x .875 x .059 Price: $9.09 |
| 48 |
783-1348D-0637 |
Deck Belt Cover LH Price: $44.01 |
| 49 |
938-0347 |
Shoulder Spacer, .625 ID x .169 Price: $8.93 |
| 50 |
938-0373 |
Shoulder Bolt .496 x 1.525: 3/8-16 Price: $8.45 |
| 51 |
738-04091A |
Shoulder Screw .43 x .29:5/16-18 Price: $3.50 |
| 52 |
738-04146 |
Bolt Plug, M16 x 1.5 Price: $8.02 |
| 55 |
747-04530 |
Belt Keeper Rod Price: $6.33 |
| 56 |
747-04645 |
Front Deck Adjustment Rod Price: $41.11 |
| 57 |
747-1116 |
Deck Release Handle Rod Price: $11.17 |
| 58 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 59 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 60 |
750-04456 |
Spacer, .260 x .372 x 1.420 Lg. Price: $6.20 |
| 61 |
750-04999 |
Spacer, .380 x .625 x 2.515 Lg. Price: $10.28 |
| 62 |
750-0566A |
Spacer, .260 x .372 x 1.030 Lg. Price: $9.17 |
| 63 |
750-1320 |
SPACER .375X.63X.5 Not Available Price: |
| 64 |
954-0349 |
V-Belt, 79.10 Lg. Price: $37.46 |
| 65 |
954-04122 |
V-Belt, 90.24 Lg. Price: $38.65 |
| 66 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 67 |
631-05229 |
CHUTE ASSEMBLY This part replaces 931-1032B. Price: $71.37 |
| 68 |
783-0141-0637 |
Center Deck Skirt Price: $57.24 |
| 69 |
783-0142-0637 |
RH Deck Skirt Price: $42.48 |
| 71 |
783-05321-0637 |
BRAKE BRACKET Not Available Price: |
| 72 |
710-0134 |
Carriage Screw, 1/4-20 x .62 Price: $3.71 |
| 73 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 74 |
731-05264 |
Mulch Plug, 46" Deck Price: $25.31 |
| 75 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
