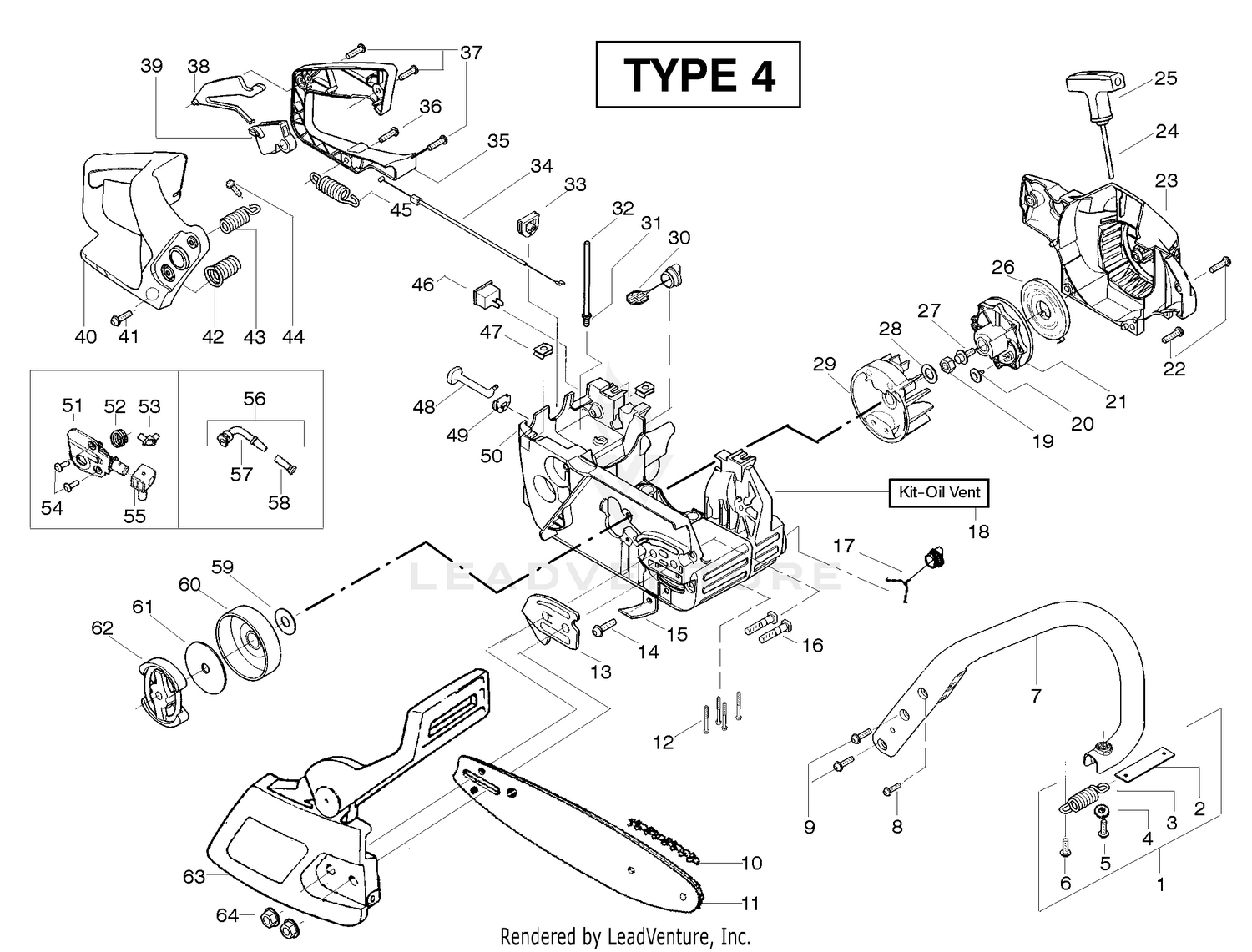

| Ref | Part Number | Description |
|---|
| 1 |
27-6860 |
DISCONTINUED Price: Call Us |
| 1 |
545006036 |
SPRING This part replaces 530047963. Price: $5.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 4 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 5 |
21-9410 |
SEE P.B.#734A Price: Call Us |
| 5 |
530016018 |
Screw Price: $1.99 |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 6 |
530015843 |
Screw Price: $1.99 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 7 |
545048001 |
HANDLE This part replaces 530047583. Price: $27.99 |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 8 |
530015940 |
Screw Price: $1.99 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 10 |
581562201 |
ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 11 |
530044864 |
Bar-16" Quick Adjust Price: Call Us |
| 12 |
32152-5 |
NUT-HEX Price: $0.54 |
| 12 |
530016132 |
Screw Price: $1.99 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 13 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
530015814 |
Screw Price: $1.99 |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 15 |
530029850 |
Chain Catcher Price: $1.99 |
| 16 |
21-9470 |
SEE PB #747 Price: Call Us |
| 16 |
530016133 |
Bolt-Bar Price: $1.99 |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 17 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 18 |
530071666 |
Kit-Oil Check Valve Price: $7.99 |
| 19 |
27-6880 |
BRAKE LEVER ASSY Price: $85.13 |
| 19 |
530016134 |
Nut- Flywheel Price: $1.99 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 20 |
530016080 |
Screw Price: $1.99 |
| 21 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 21 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
| 22 |
530015892 |
Screw Price: $1.99 |
| 23 |
530049335 |
Assy-Fan Housing Price: $9.99 |
| 24 |
530069232 |
Kit - Rope Price: $3.99 |
| 25 |
530056422 |
Handle-Starter This part replaces 530049797. Price: $1.99 |
| 26 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 27 |
530015920 |
Screw Price: $1.99 |
| 28 |
530015127 |
Washer- Flywheel Price: $1.99 |
| 29 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 30 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 31 |
530023877 |
Fitting- fuel line Price: $1.99 |
| 32 |
530069216 |
Kit-Fuel line (large) Price: $3.99 |
| 33 |
530047631 |
Grommet-Cable Price: $1.99 |
| 34 |
530047602 |
Cable-Throttle Price: $3.99 |
| 35 |
530047581 |
Cover-Rear Handle Price: $3.99 |
| 36 |
530015886 |
Screw Price: $1.99 |
| 37 |
530015906 |
Screw Price: $1.99 |
| 38 |
530036098 |
Throttle Lockout Price: $1.99 |
| 39 |
530036097 |
Trigger-Throttle Price: $1.99 |
| 40 |
530047582 |
Handle - Rear Price: $11.99 |
| 41 |
530015814 |
Screw Price: $1.99 |
| 42 |
545006036 |
SPRING This part replaces 530053274. Price: $5.99 |
| 43 |
545006036 |
SPRING This part replaces 530071385. Price: $5.99 |
| 44 |
530015875 |
Screw Price: $1.99 |
| 45 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 46 |
530069572 |
Kit-Switch Price: $4.99 |
| 47 |
530015922 |
Nut- "U"-Type Price: $1.99 |
| 48 |
530047605 |
Knob-Choke Price: $1.99 |
| 49 |
530049005 |
Grommet-Knob Price: $1.99 |
| 50 |
530056596 |
Assy-Chassis Price: $27.99 |
| 52 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 53 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 54 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 55 |
530019206 |
Seal Block Price: $1.99 |
| 57 |
530038373 |
Pickup-Oiler Price: $1.99 |
| 58 |
530056533 |
Filter-Oil Price: $2.99 |
| 59 |
530015907 |
Washer-Thrust Price: $1.99 |
| 60 |
530047061 |
Assy.-Clutch Drum w/bearing Price: $11.99 |
| 61 |
530015611 |
Washer-Clutch Price: $1.99 |
| 62 |
530014949 |
Assy. Clutch Price: $7.99 |
| 63 |
545139915 |
Assy.-Chain Brake This part replaces 530054999. Price: $22.99 |
