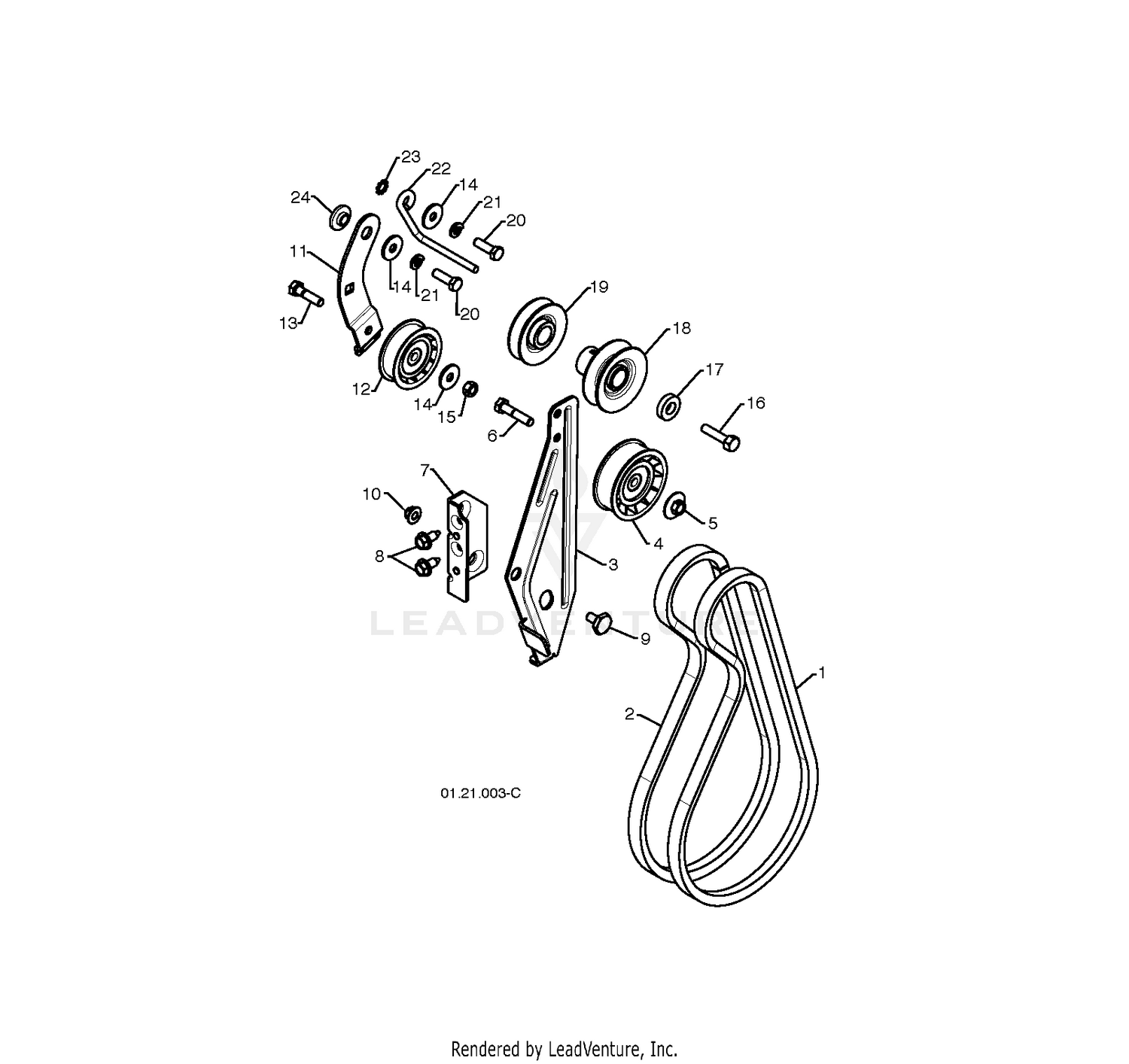

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $28.99 |
| 1 |
98-0927 |
TANK-FUEL Price: $216.25 |
| 2 |
115-5304 |
CAP-FUEL This part replaces 93-7170. Price: $26.87 |
| 2 |
532419744 |
V-BELT.TRACTION Price: $22.99 |
| 3 |
532423723 |
ARM.IDLER.BRAKE.PNT.BLACK This part replaces 532435802. Price: $10.99 |
| 3 |
85-9010 |
BOOT-STEERING Price: $130.84 |
| 4 |
532180523 |
PULLEY.W/SPACER.2.75 Price: $17.99 |
| 4 |
85-8930 |
RETAINER-BOOT Price: $25.86 |
| 5 |
2412-93 |
CLAMP-R Price: $1.02 |
| 5 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 6 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 6 |
539976935 |
HCS.5/16-18X1 1/2.GR5 This part replaces 874780524. Price: $1.99 |
| 7 |
109-0299 |
HOSE-FUEL This part replaces 98-0976. Price: $12.99 |
| 7 |
532423990 |
BRACKET.IDLER.PIVOT.BLACK This part replaces 532435801. Price: $3.99 |
| 8 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 8 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $2.49 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $2.99 |
| 9 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 10 |
32103-12 |
NUT-WING Price: $1.15 |
| 10 |
532751153 |
NUT, LOCK 5/16-18 Price: $1.99 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532192128 |
ARM.ASM.IDLER.(TRACTION).HYDRO This part replaces 532187786. Price: $15.99 |
| 12 |
100-6434 |
ROD-HOLD DOWN, BATTERY This part replaces 72-4790. Price: $10.10 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $17.99 |
| 13 |
3217-5 |
NUT-HEX Price: $0.25 |
| 13 |
874520520 |
Bolt 5/16-18 x 1-1/4 This part replaces 874780520. Price: $2.99 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 14 |
532059289 |
STEEL WASHER Price: $2.99 |
| 15 |
104-8162 |
BATTERY-DRY Price: $114.99 |
| 15 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 16 |
100-6435 |
POST-BATTERY This part replaces 56-7720. Price: $15.91 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.69 |
| 17 |
237-143 |
O-RING Price: $1.34 |
| 17 |
532400026 |
WASHER, FLAT 3/8 Price: $2.99 |
| 18 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 18 |
83-1390 |
VALVE-SHUT-OFF, FUEL Price: $55.01 |
| 19 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 19 |
532426490 |
PULLEY.ENG.TRACTION Price: $11.99 |
| 20 |
2412-109 |
CLIP-J Price: $3.82 |
| 20 |
874610516 |
SCREW Price: $2.99 |
| 21 |
810040500 |
LOCKWASHER Price: $2.99 |
| 21 |
98-0995 |
DISCONTINUED Price: Call Us |
| 22 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 22 |
532155452 |
GUIDE BELT Price: $3.99 |
| 23 |
63-8410 |
WASHER Price: $1.76 |
| 23 |
810040500 |
Washer Lock Hvy Hlcl Spr 5/16 This part replaces 811050500. Price: $2.99 |
| 24 |
323-5 |
SCREW-HH Price: $0.41 |
| 27 |
237-124 |
GROMMET Price: $2.30 |
| 28 |
3290-509 |
TIE-MOUNT Price: $4.42 |
| 29 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 30 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 31 |
98-0999 |
GROUND WIRE ASM Price: $17.65 |
