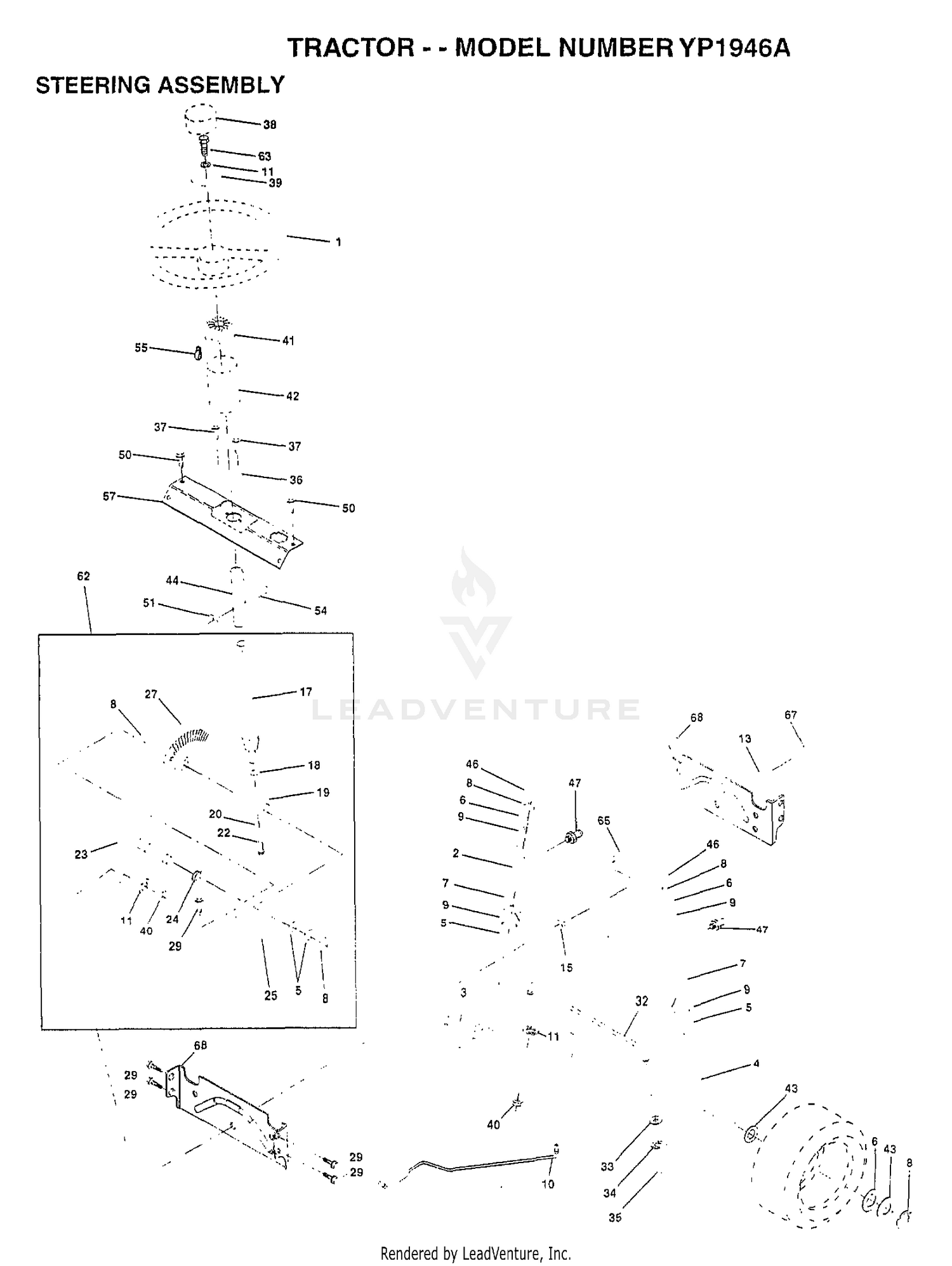

| Ref | Part Number | Description |
|---|
| 1 |
121472X |
SUB= 150546 Price: Call Us |
| 1 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
154427 |
AXLE ASM Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
156483 |
SPINDLE.ASM.LH Price: Call Us |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 6 |
121748X |
WASHER Price: Call Us |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 7 |
145-4569 |
HYD CYLINDER ASM This part replaces 106-9064. Price: $461.20 |
| 7 |
19272016 |
WASHER Price: Call Us |
| 8 |
110-3955 |
CENTER LIFT ARM ASM This part replaces 107-9500. Price: $148.89 |
| 8 |
12000029 |
RING Price: Call Us |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 10 |
156438 |
DRAGLINK-STAMPED Price: Call Us |
| 10 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
154779 |
BEARING AXLE Price: Call Us |
| 13 |
322-1 |
SCREW-HH Price: $0.22 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 17 |
156546 |
SHAFT ASM STEERIN Price: Call Us |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
124035X |
SUPPORT.SHAFT Price: Call Us |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
126684X |
SUB= 532126684 Price: Call Us |
| 20 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 21 |
5-1226 |
WASHER Price: $3.90 |
| 22 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 22 |
71200410 |
SCREW HEX SOC1/4- Price: Call Us |
| 23 |
105-0452 |
PIVOT HINGE ASM Price: $477.65 |
| 23 |
127501 |
SUB= 918127501 Price: Call Us |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
136-8485 |
FRAME-PULL, CENTER This part replaces 105-0451. Price: $382.66 |
| 25 |
154406 |
BRKT-STEERING Price: Call Us |
| 26 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 27 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 28 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 29 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 29 |
17490612 |
SCREW Price: Call Us |
| 30 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 31 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 32 |
110-3953 |
SPRING-TORSION, CENTER This part replaces 106-9080. Price: $9.16 |
| 32 |
139929 |
ROD.TIE.19.75 Price: Call Us |
| 33 |
19111216 |
WASHER M Price: Call Us |
| 34 |
10040500 |
LOCKWASHER Price: Call Us |
| 34 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 35 |
73810500 |
NUT.LOCK.5/16-24 Price: Call Us |
| 36 |
155104 |
BUSHING.STR.623 Price: Call Us |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 38 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 39 |
105-5740 |
HOOK-LIFT Price: $13.14 |
| 39 |
19133808 |
WASHER T Price: Call Us |
| 40 |
33115-025 |
SCREW-HH Price: $0.61 |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 41 |
100711L |
ADAPTER LT Price: Call Us |
| 41 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 42 |
140216 |
BOOT SHAFT STEER Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
153721 |
SHAFT EXT STEERIN Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 50 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 51 |
73800500 |
NUT Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 55 |
140285 |
CLIP TINNERMAN Price: Call Us |
| 57 |
140172 |
SUPPORT SHAFT STR Price: Call Us |
| 62 |
156594 |
KIT STEERING ASM Price: Call Us |
| 63 |
74780616 |
BOLT Price: Call Us |
| 65 |
154780 |
SPACER AXLE Price: Call Us |
| 67 |
74781044 |
BOLT Price: Call Us |
