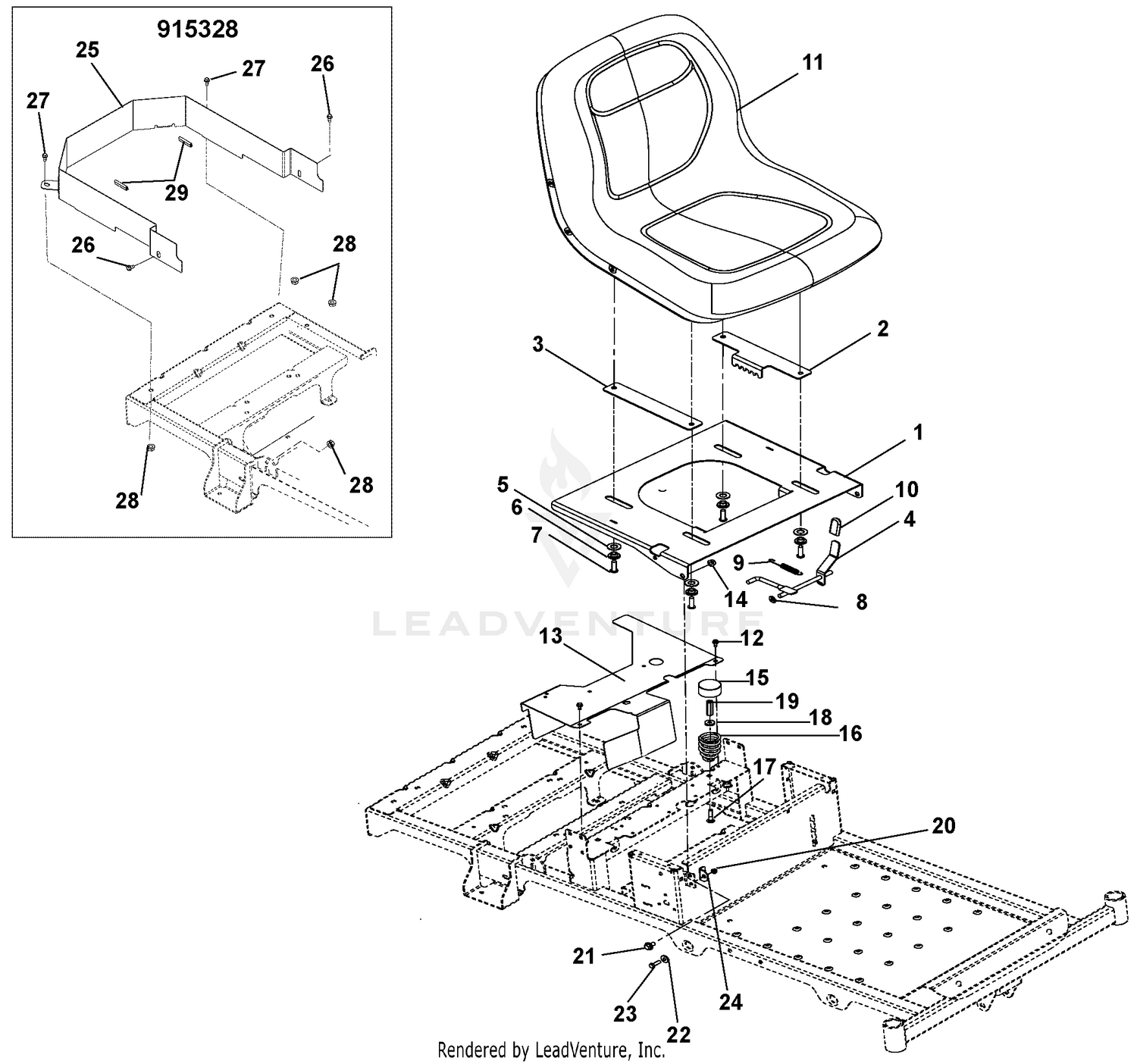

| Ref | Part Number | Description |
|---|
| 1 |
04376251 |
PLATE, SEAT, ADJUSTABLE Price: $81.45 |
| 2 |
04376951 |
PLATE, ADJUSTABLE SEAT TRACK Price: $12.45 |
| 3 |
04377051 |
PLATE, ADJUSTABLE SEAT SLIDE Price: $20.45 |
| 4 |
04377167 |
WLDMT, ADJUSTABLE SEAT LATCH Price: Call Us |
| 5 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95 |
| 6 |
05514800 |
BSHG-FLG .32X.500X.344X.880 Price: $1.95 |
| 7 |
05901840 |
BLT,SHCS-BTN .31-18X1.00 ZCC This part replaces 05901508. Price: $2.45 |
| 8 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 9 |
08321100 |
SG-TENS .043X.44X3.31 WLD 5.8 Price: $5.45 |
| 10 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 11 |
51521700 |
KIT, SEAT MILSCO XB180 This part replaces 04278000. Price: $199.95 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 13 |
04305351 |
COVER, ZOOM CE FAN Price: Call Us |
| 14 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 15 |
00337700 |
HUB CAP Price: $2.45 |
| 16 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 17 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 18 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
| 19 |
06500927 |
NUT, COUPLING .31-18X1.75 ZCC This part replaces 06500015. Price: $3.95 |
| 20 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 21 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 22 |
01305900 |
BSHG, FLG .325X.499X.26X.88 Price: $1.95 |
| 23 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 24 |
03798751 |
BRKT, SEAT STOP Price: $50.95 |
| 25 |
04732051 |
SHIELD, ZT CE REACH-IN Price: $19.95 |
| 26 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 27 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 28 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC This part replaces 06534800. Price: $0.95 |
