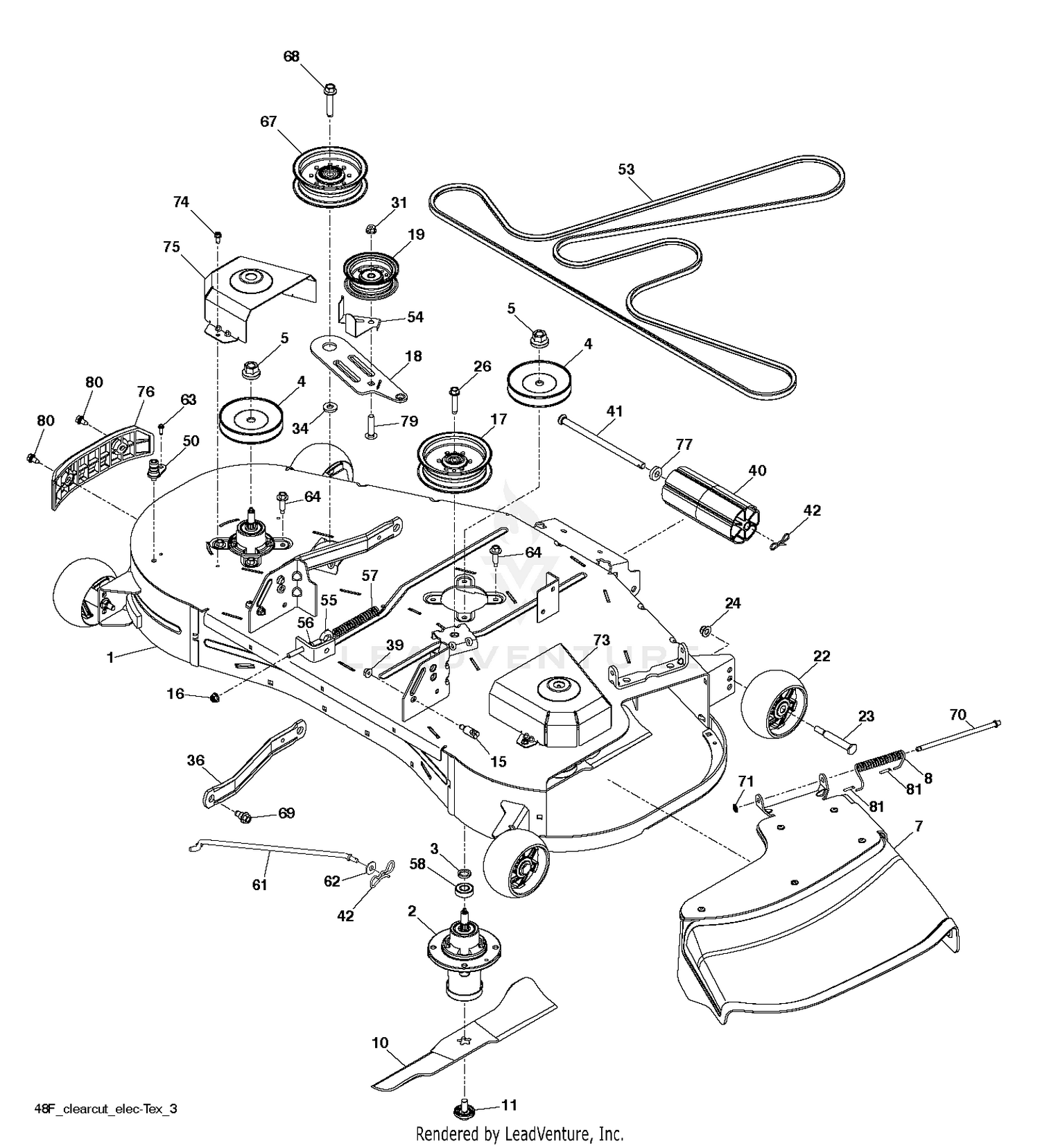

| Ref | Part Number | Description |
|---|
| 1 |
583810001 |
DECK.SVC.48.CC.ASM.668 This part replaces 588788002. Price: $699.99 |
| 1 |
98-1459 |
DECAL Price: $3.93 |
| 2 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 4 |
532173434 |
MANDREL PULLEY Price: $14.99 |
| 4 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 5 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 6 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 7 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 7 |
593649701 |
GSPW Deflectors This part replaces 588980701. Price: $84.99 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 8 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 10 |
588811002 |
BLADE.BAGGER.RES.CLRCT.48".BLK Price: $29.99 |
| 11 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 11 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 12 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 13 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 15 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 15 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 16 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 16 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 17 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 17 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 18 |
136-2889 |
PEDAL-BRAKE, RH This part replaces 119-0005. Price: $429.93 |
| 18 |
529470302 |
IDLER ARM This part replaces 588812202. Price: $6.99 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH This part replaces 115-4421-03. Price: $159.32 |
| 19 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 20 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 21 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 22 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 22 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 23 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 23 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 24 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 24 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 29 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 30 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 31 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 32 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 33 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 34 |
532178515 |
WASHER Price: $5.99 |
| 35 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 36 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 37 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 38 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 40 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 41 |
322-3 |
SCREW-HH Price: $0.79 |
| 41 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 42 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 43 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 44 |
32128-20 |
NUT-HF Price: $0.99 |
| 45 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 46 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 50 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 53 |
599275701 |
Belts This part replaces 588814301. Price: $54.99 |
| 54 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 57 |
587358401 |
SPRING.EXTN.42.FCS.TR.DECK.DRV Price: $6.99 |
| 61 |
589464805 |
Links This part replaces 532403407. Price: $14.99 |
| 62 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 63 |
596637301 |
Screws This part replaces 817490410. Price: $2.99 |
| 64 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 67 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 68 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 69 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 70 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 71 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
588812402 |
COVER.PNT.MANDREL.RH.GREY Price: $34.99 |
| 74 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 75 |
588813102 |
COVER.PNT.MANDREL.LH.TR.GREY Price: $17.99 |
| 76 |
582541103 |
BUMPER 48 CLEARCUT TRIM SIDE A Price: $11.99 |
| 77 |
582360501 |
BUSHING.NOSE.ROLLER Price: $3.99 |
| 79 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 80 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 81 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
