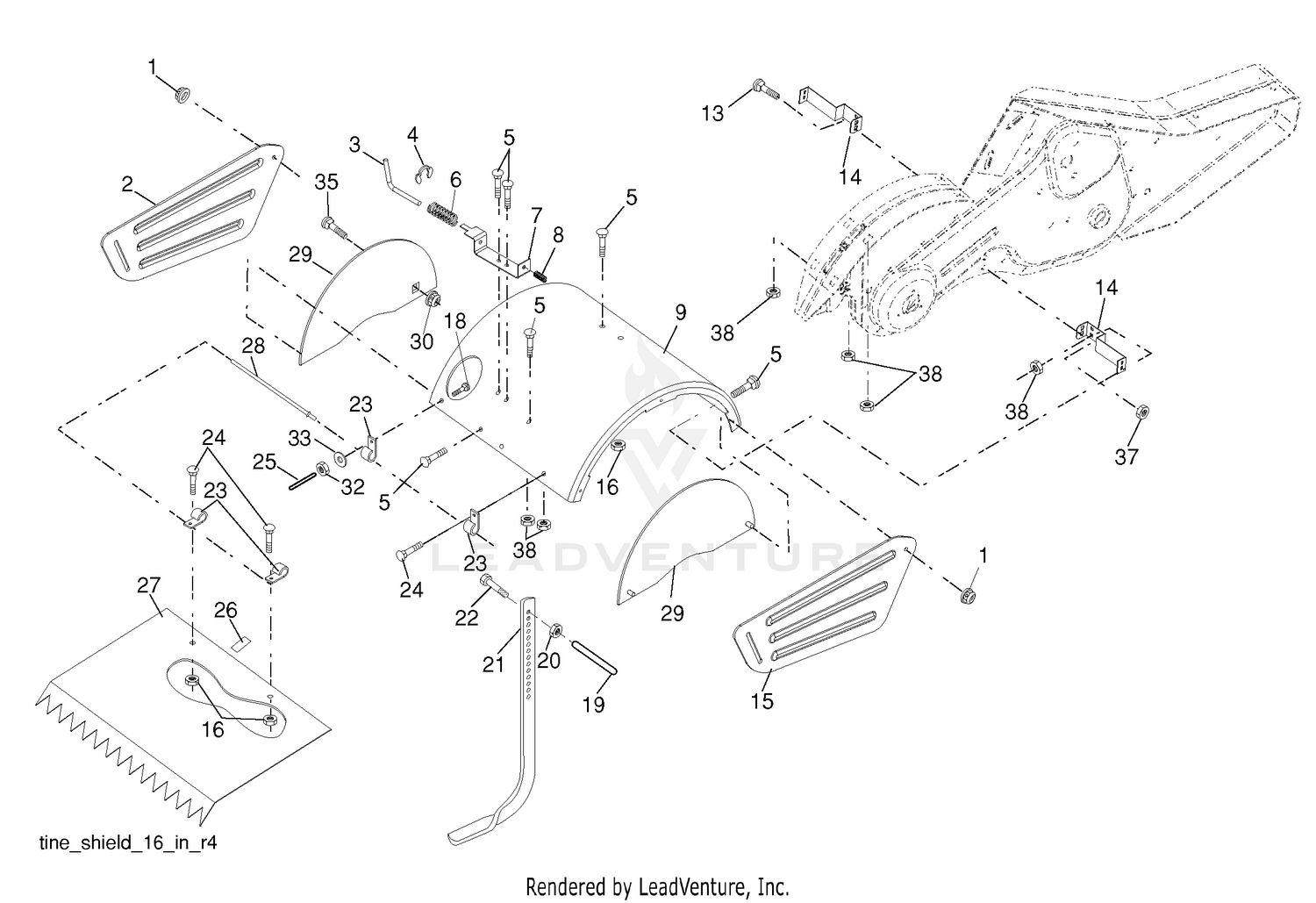

| Ref | Part Number | Description |
|---|
| 1 |
104-0000-03 |
PULLEY Price: $400.11 |
| 1 |
73900500 |
Nut, Lock Hex Flange 5/16-18 Price: Call Us |
| 2 |
161415X428 |
Shield, Side, Outer L. H. Price: Call Us |
| 2 |
99-6937 |
FAN Price: $304.08 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 3 |
8393J |
Pin, Stake, Depth Price: Call Us |
| 4 |
12000035 |
Ring, Klip Price: Call Us |
| 5 |
180847 |
Bolt 5/16-18 x 3/4 ZNC Price: Call Us |
| 6 |
8394J |
Spring Price: Call Us |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 7 |
8392J |
Bracket, Latch Price: Call Us |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 8 |
109230X |
Spring, Depth Stake Price: Call Us |
| 9 |
104-0017 |
HUB This part replaces 104-0017-03. Price: $185.06 |
| 9 |
124289X428 |
Shield, Tine Price: Call Us |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 13 |
104-1487 |
BOLT-CARR Price: $3.93 |
| 13 |
72110510 |
Bolt, Carriage 5/16-18 x 1-1/4 Price: Call Us |
| 14 |
124311X |
Bracket, Shield Tine Price: Call Us |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
104-1440-03 |
SUPPORT-FAN Price: $395.73 |
| 15 |
161414X428 |
Shield, Side, Outer R.H. Price: Call Us |
| 16 |
104-0006-03 |
LEVER-FAN, IDLER Price: $61.11 |
| 16 |
73900400 |
Nut, Hex Flange 1/4-20 unc Price: Call Us |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
72040410 |
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 Price: Call Us |
| 18 |
98-3921 |
BELT Price: $16.95 |
| 19 |
102701X |
Grip Price: Call Us |
| 19 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 20 |
73220600 |
Nut, Hex 3/8-16 Price: Call Us |
| 21 |
102156X |
Stake, Depth Price: Call Us |
| 21 |
104-1447-03 |
BRACKET-FAN, SUPPORT Price: $39.88 |
| 22 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 22 |
74930632 |
Bolt, Hex 3/8-16 x 2 Price: Call Us |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 23 |
4440J |
Hinge Price: Call Us |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 24 |
72140404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 Price: Call Us |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 |
6712 |
J Cap, Vinyl Price: Call Us 6712 J |
| 26 |
104-1481-03 |
BRACKET-MOUNT, FAN Price: $58.30 |
| 26 |
109227X |
Pad, Idler Price: Call Us |
| 27 |
102695X428 |
Shield, Leveling Price: Call Us |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
120588X |
Pin, Hinge Price: Call Us |
| 29 |
197761X428 |
Shield, Side Price: Call Us |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 30 |
73970500 |
Locknut, Flange 5/16-18 Price: Call Us |
| 31 |
33114-020 |
SCREW-HH Price: $0.28 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 32 |
73220400 |
Nut Fin Hex 1/4-20 unc Price: Call Us |
| 33 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 33 |
104-0007 |
SPACER Price: $39.26 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
104-1482 |
PLATE-WASHER Price: $15.25 |
| 35 |
72110505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 37 |
73800500 |
Nut, Lock Hex 5/16-18 unc Price: Call Us |
