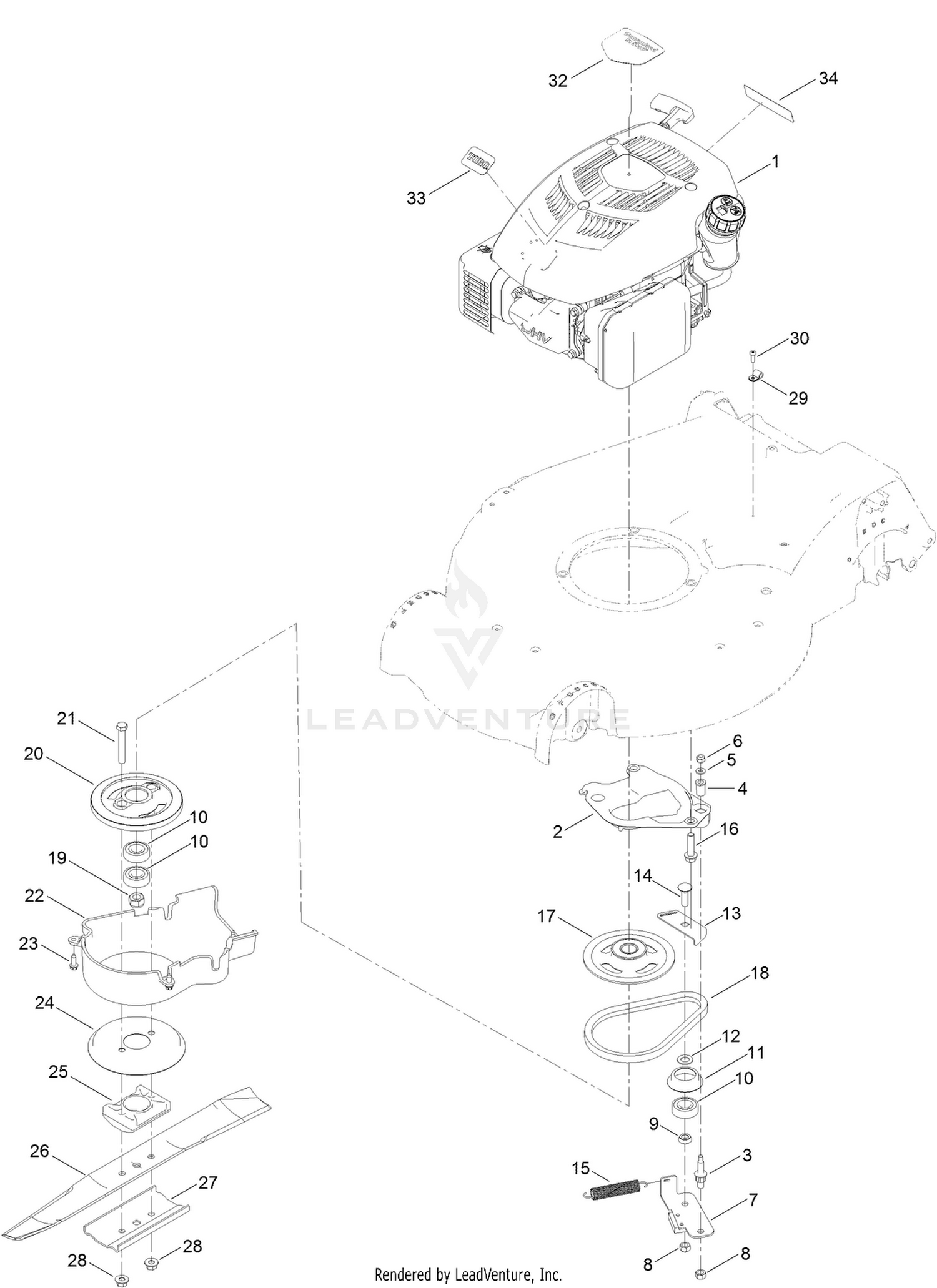

| Ref | Part Number | Description |
|---|
| 1 |
136-7858 |
ENGINE-1P65F-2 Price: $426.99 |
| 2 |
133-8189 |
PLATE-ANCHOR Price: $23.99 |
| 3 |
107-0759 |
BOLT-SHOULDER Price: $9.99 |
| 4 |
107-0797 |
BUSHING Price: $4.79 |
| 5 |
3256-16 |
WASHER-FLAT Price: $0.39 |
| 6 |
3296-73 |
NUT-LOCK, NI Price: $3.59 |
| 7 |
125-1063 |
PLATE-BRAKE Price: $21.99 |
| 8 |
603773 |
LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 9 |
107-0758 |
SPACER-BEARING Price: $2.89 |
| 10 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 11 |
138-3217 |
RETAINER-BELT Price: $2.99 |
| 12 |
605256 |
SPACER Price: $1.79 |
| 13 |
138-3222 |
PLATE-GUIDE This part replaces 107-7471. Price: $3.39 |
| 14 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
108-3792 |
SPRING-TENSION, BRAKE Price: $10.99 |
| 16 |
32144-102 |
SCREW-HWH Price: $3.19 |
| 17 |
117-5970 |
PULLEY Price: $34.99 |
| 18 |
110-1790 |
BELT Price: $28.99 |
| 19 |
108-9342 |
NUT-HEX Price: $3.49 |
| 20 |
126-8108 |
DRUM Price: $52.99 |
| 21 |
3211-42 |
SCREW-HH Price: $4.87 |
| 22 |
107-7488 |
COVER Price: $20.99 |
| 23 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 24 |
138-3225 |
DISK This part replaces 108-3787. Price: $11.99 |
| 25 |
107-7487 |
SUPPORT-BLADE Price: $21.99 |
| 26 |
133-8183-03 |
BLADE-21IN, RECYCLING Price: $20.99 |
| 27 |
108-3766-03 |
SUPPORT-BLADE Price: $9.99 |
| 28 |
127-6852 |
NUT-FLANGE, LOCK Price: $1.79 |
| 29 |
98-2256 |
CLAMP Price: $4.89 |
| 30 |
32144-32 |
SCREW Price: $2.29 |
| 32 |
136-9054 |
DECAL-SHROUD Price: $3.89 |
| 33 |
136-5863 |
DECAL Price: $1.89 |
