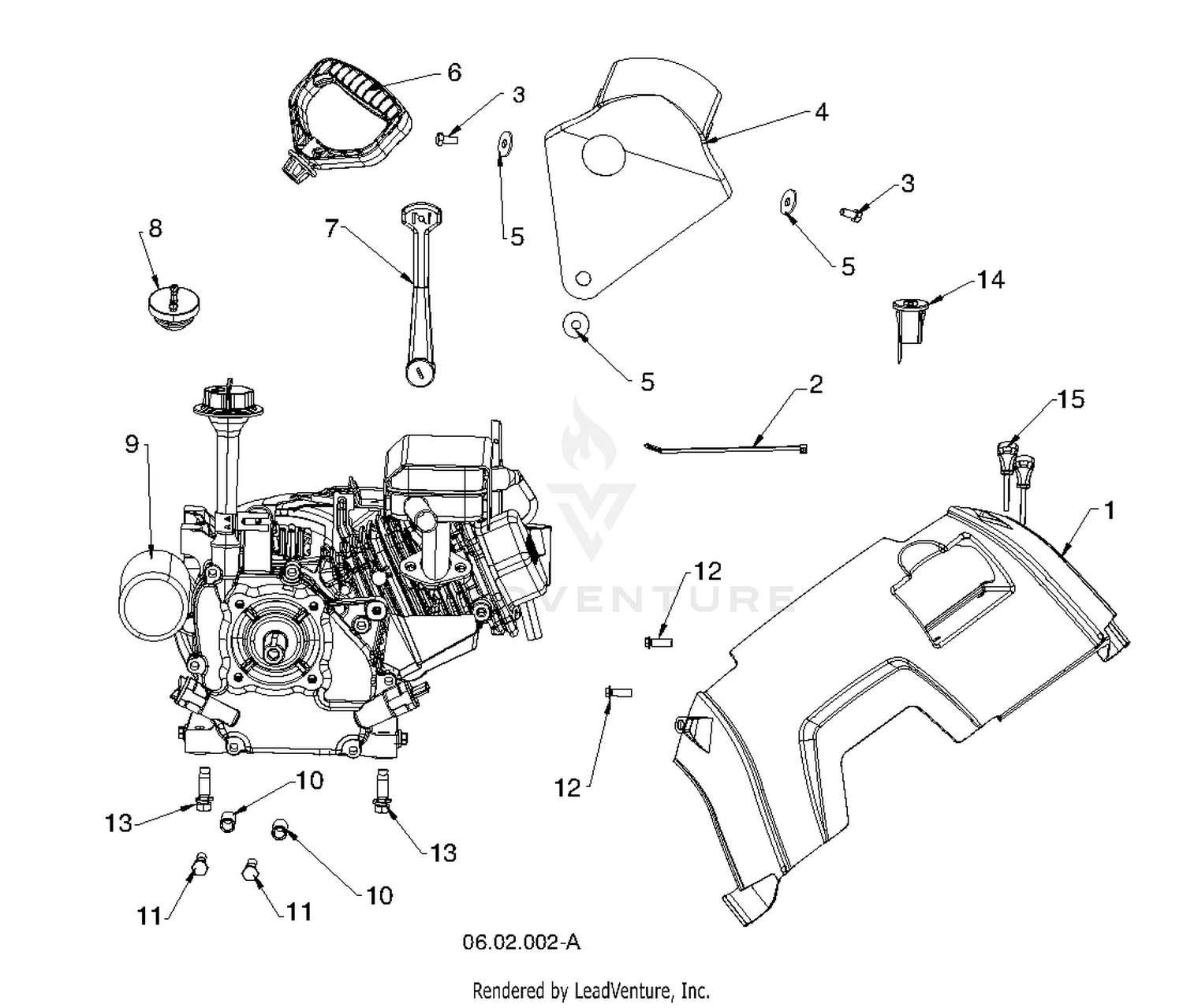

| Ref | Part Number | Description |
|---|
| 1 |
532437658 |
COVER REAR.LOWER.SSST.BLACK Price: $14.99 |
| 2 |
532007192 |
WIRE TIE This part replaces 532444649. Price: $3.99 |
| 3 |
581562601 |
SCREW M6-1.0 X 14MM HEX (2 2MC Price: $1.99 |
| 4 |
532437619 |
COVER.MUFFLER.136CC/208CC.LCT Price: $29.99 |
| 5 |
819091416 |
Washer 9/32 x 7/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 6 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT This part replaces 532436276. Price: $6.99 |
| 7 |
532434874 |
LEVER.CHOKE Price: $2.99 |
| 8 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) This part replaces 532436235. Price: $8.99 |
| 9 |
580810702 |
ENGINE LCT.136CC.SNOW. 4 PARTS Price: $279.99 |
| 10 |
532434857 |
SPACER.ENGINE Price: $2.99 |
| 11 |
532435578 |
SCREW. 5/16-24 X 2.00"HHCS Price: $2.99 |
| 12 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 13 |
532150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number) Price: $3.99 |
| 14 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST This part replaces 532435407. Price: $17.99 |
