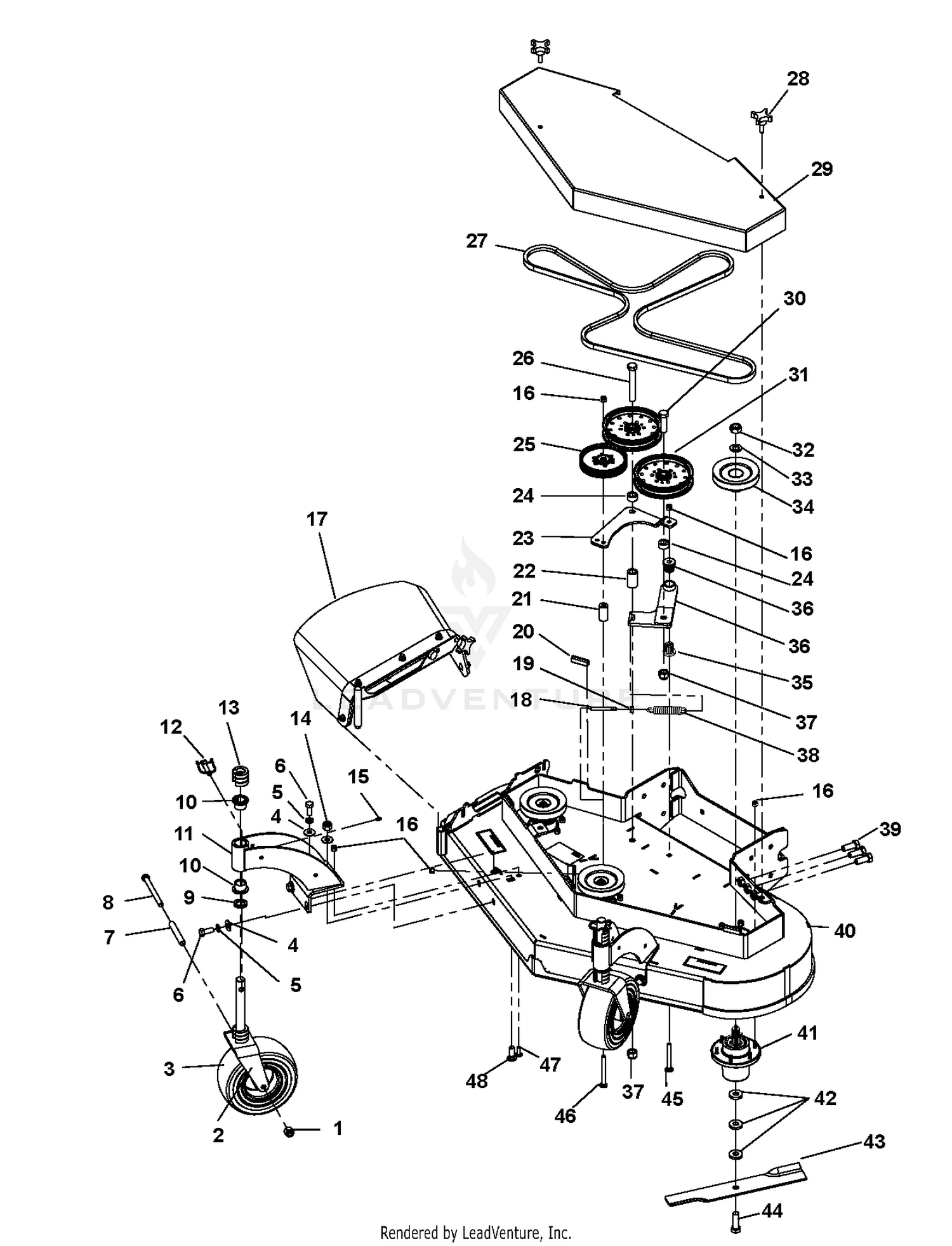

| Ref | Part Number | Description |
|---|
| 1 |
06500830 |
NUT,NYL .50-13 G5 ZCC This part replaces 00964015. Price: $2.45 |
| 2 |
D15030 |
WLDT, CASTER YOKE GD BLACK Price: $107.95 |
| 4 |
00960703 |
MANUAL, OWNERS RAPID XZ FRENCH Price: Call Us |
| 5 |
00960604 |
WASHER, .500 MED SPRG LOCK Y Price: Call Us |
| 6 |
05901637 |
BLT,HEX .50-13X1.25 G5 ZCC This part replaces 05958900. Price: $2.95 |
| 7 |
D13003 |
TUBE, CASTER AXLE Price: $18.95 |
| 8 |
05901632 |
BLT,HEX .50-13X5.50 G5 ZCC This part replaces 05964100. Price: $6.45 |
| 9 |
D13008 |
BUSHING, 1.03 X 1.50 X .179 Y Price: $8.95 |
| 10 |
D18076 |
BRG, FLG 1.00X1.25X1.00 Price: $6.45 |
| 11 |
03987451 |
WLDT, STRUT FRONT FXWLK SCAMPR Price: Call Us |
| 12 |
00161397 |
PIN, KLIK .438X2.00 Price: $8.45 |
| 13 |
00164145 |
C-SPACER, 1.00 X 1.77 X .500 Price: $3.45 |
| 14 |
06500830 |
NUT,NYL .50-13 G5 ZCC This part replaces 00964015. Price: $2.45 |
| 15 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 16 |
00968087 |
LOCKNUT, 3/8-16 NYLOC Y Price: Call Us |
| 17 |
56155063 |
ASSY, DISCHARGE SHIELD GD Price: Call Us |
| 18 |
00104024 |
ROD, THREADED ADJUSTMENT Price: $19.45 |
| 19 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 00964016. Price: $1.45 |
| 20 |
00999538 |
TRIM, LOCK 1/4" EDGE Price: $5.45 |
| 21 |
TCU18742 |
SPACER Price: $16.95 |
| 22 |
03984702 |
BUSHING, .688X1.13X1.89 Price: Call Us |
| 23 |
03985751 |
STRAP, IDLER 52 FXWLK G2 Price: $14.25 |
| 24 |
03846235 |
BUSHING, .688 X 1.13 X .55 Price: $13.95 |
| 25 |
07352400 |
IDLER- 5" FLANGED This part replaces D28050. Price: $35.95 |
| 27 |
00181715 |
BELT, HB 114.9 EL AMD Price: $76.45 |
| 28 |
03820400 |
KNOB, 3/8 X 1.25 - 4 PRONG Price: $9.45 |
| 29 |
03994463 |
WLDT, BELT SHIELD 48 FXWLK GD Price: Call Us |
| 30 |
05982600 |
BLT-HEX .62-11X2.25 GR5 YWZC Price: Call Us |
| 31 |
00140280 |
PULLEY, FLAT 6.00X.635 W/BRG Price: $61.45 |
| 32 |
06500031 |
LOCKNUT, 3/4-16 CROWN GR 8 Y This part replaces 00964024. Price: $3.45 |
| 33 |
06401037 |
WSHR-FL-STL .75X1.312X.12 ZC12 This part replaces 03399703. Price: $1.95 |
| 34 |
03828700 |
PULLEY, SPLINE SPINDLE LSE Price: $57.95 |
| 35 |
TCU14540 |
BRG, FLG M10XM25XM27 FLUTED Price: $15.95 |
| 36 |
03986951 |
WLDT, IDLER ARM 52 FXWLK G2 Price: $35.95 |
| 38 |
00110580 |
SPRG, EXTENSION Price: $15.45 |
| 39 |
05901723 |
BLT, HEX .62-11X1.50 G8 ZCC This part replaces 05901321. Price: $3.45 |
| 40 |
50521008 |
ASSY, DECK 48" SCAMPER W/DECAL Price: Call Us |
| 41 |
00200262 |
ASSY, SPINDLE S/O Price: $258.45 |
| 42 |
06401033 |
WSHR,FLT .630X1.50X.25 ZCC This part replaces D18055. Price: $6.45 |
| 43 |
GDU10230 |
BLADE, 16.500 X .80 LIFT Price: $25.95 |
| 44 |
05901725 |
BLT, HEX .62-11X2.00 G8 ZCC This part replaces 00967348. Price: $5.45 |
| 45 |
03H1836 |
BOLT, 3/8-16X3.50 CRG 5 Y Price: Call Us |
| 46 |
03H1809 |
BOLT, 3/8X4 SHTNK RDHD BOLT A1 Price: Call Us |
| 47 |
00963019 |
BOLT, 3/8-16X1.00 CRG 5 SN Y Price: Call Us |
