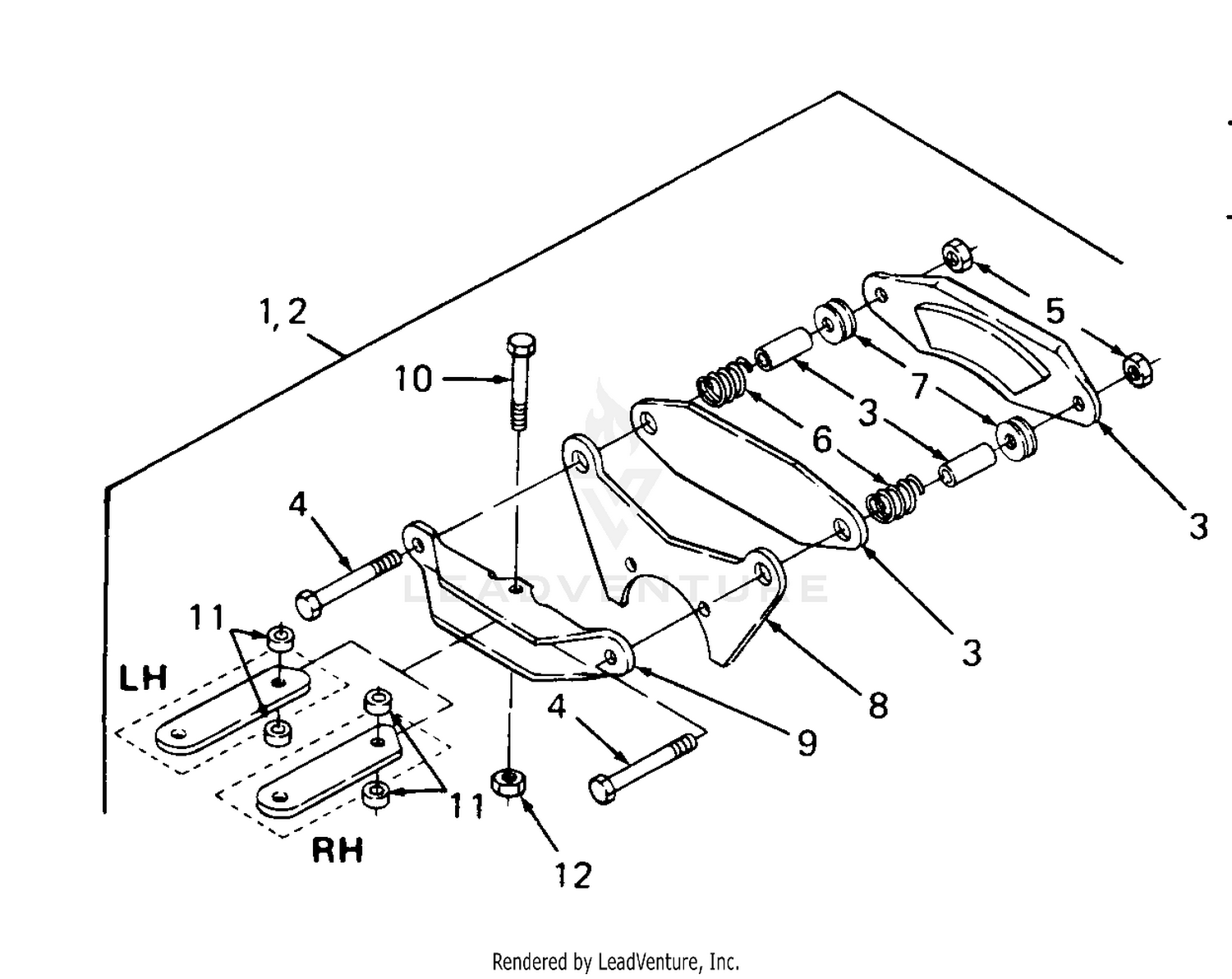

| Ref | Part Number | Description |
|---|
| 1 |
661-3001 |
BRAKE ASSEMBLY (RH) Not Available Price: |
| 1 |
93-3199-03 |
RH SPINDLE ASM This part replaces 93-3199. Price: $366.74 |
| 2 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
661-3002 |
BRAKE ASSEMBLY (LH) Not Available Price: |
| 3 |
92-7807-01 |
REAR AXLE PIN ASM This part replaces 92-7807. Price: $151.97 |
| 4 |
67-1750 |
BUSHING Price: $0.92 |
| 4 |
710-0369 |
Screw, Hex Cap, 3/8-24 X 2.50 Lg GR5 Price: $5.59 |
| 5 |
32128-23 |
NUT-HF Price: $1.51 |
| 5 |
712-3054 |
Nut, Hex Lock, 3/8-24 GR5 Price: $3.90 |
| 6 |
92-7803-01 |
AXLE SUPPORT ASM This part replaces 92-7803. Price: $958.49 |
| 6 |
932-3042 |
Comp. Spring, .515 x .641 x .95 This part replaces 732-3042. Price: $4.29 |
| 7 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 7 |
736-0344 |
Washer, Flat, .390 X 1.0 X .030 Thk HDN Price: $4.13 |
| 8 |
703-1787 |
BRACKET-BRAKE MTG Not Available Price: |
| 8 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 9 |
32146-20 |
NUT-HEX Price: $3.23 |
| 10 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 10 |
710-3133 |
SHOULDER SCREW Not Available Price: |
| 11 |
750-3069 |
SPACER Not Available Price: |
| 12 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 13 |
237-22 |
O-RING Price: $2.43 |
| 14 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 15 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 16 |
115-4524 |
CYLINDER-HYDRAULIC This part replaces 92-7828. Price: $914.47 |
| 17 |
5-1226 |
WASHER Price: $3.90 |
| 18 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 22 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 23 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 24 |
231-105 |
TIRE-RIBBED Price: $62.56 |
| 25 |
3220-7 |
NUT-JAM Price: $4.09 |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 28 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 29 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 30 |
21-2820 |
HUB Price: $269.34 |
| 31 |
253-129 |
SEAL Price: $21.73 |
| 32 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 33 |
99-1292-03 |
LH SPINDLE ASM This part replaces 93-3198. Price: $366.74 |
| 34 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 35 |
100-6566-03 |
REAR AXLE ASM This part replaces 100-6566. Price: $926.46 |
| 36 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 37 |
3220-6 |
NUT-JAM Price: $1.25 |
| 38 |
92-7821 |
DISCONTINUED Price: Call Us |
| 39 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 40 |
3220-5 |
NUT-JAM Price: $0.65 |
| 41 |
256-242 |
BUSHING Price: $3.32 |
| 42 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 43 |
3220-3 |
NUT-HJ Price: $0.28 |
| 45 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 51 |
99-2413-01 |
COVER-GUARD, FLYWHEEL This part replaces 99-2413. Price: $22.07 |
| 52 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 53 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 54 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 55 |
92-7845 |
SPACER-HARDENED Price: $7.44 |
| 56 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 503218825 |
503218876 |
SCREW This part replaces 503218825. Price: $4.99 |
| 503400602 |
503400602 |
HOSE Price: $10.99 |
| 503443201 |
591375401 |
KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 503577602 |
591375201 |
KIT HOSE SPIRAL 300 This part replaces 503577602. Price: $4.99 |
| 503578901 |
503578901 |
TANK LOCK Price: $4.99 |
| 503854101 |
503854101 |
VIBRATION ABSORBER Price: $14.99 |
| 503854401 |
503854401 |
THROTTLE LOCK Price: $6.99 |
| 503854501 |
503854501 |
TRIGGER Price: $5.99 |
| 503923001 |
503923001 |
FUEL TANK W/ ACCESSORIES Price: $99.99 |
| 503923101 |
503923101 |
SPRING Price: $17.99 |
| 503964301 |
503964301 |
PROTECTOR Price: $8.99 |
| 503998601 |
503998601 |
SPRING Price: $7.99 |
| 537215001 |
589241101 |
SEALING This part replaces 537215001. Price: $4.99 |
| 537215202 |
537215207 |
TANK CAP This part replaces 537215202. Price: $9.99 |
| 537215203 |
537215208 |
TANK CAP This part replaces 537215203. Price: $9.99 |
| 537359501 |
501152901 |
FUEL TANK VENT This part replaces 537359501. Price: $14.99 |
