Home / OPE / Gravely Zero Turn / Pro-Turn 500 / 992512 (010000 - 019999) Pro-Turn 572 - Kawasaki FX921V / Deck Lift – 72"

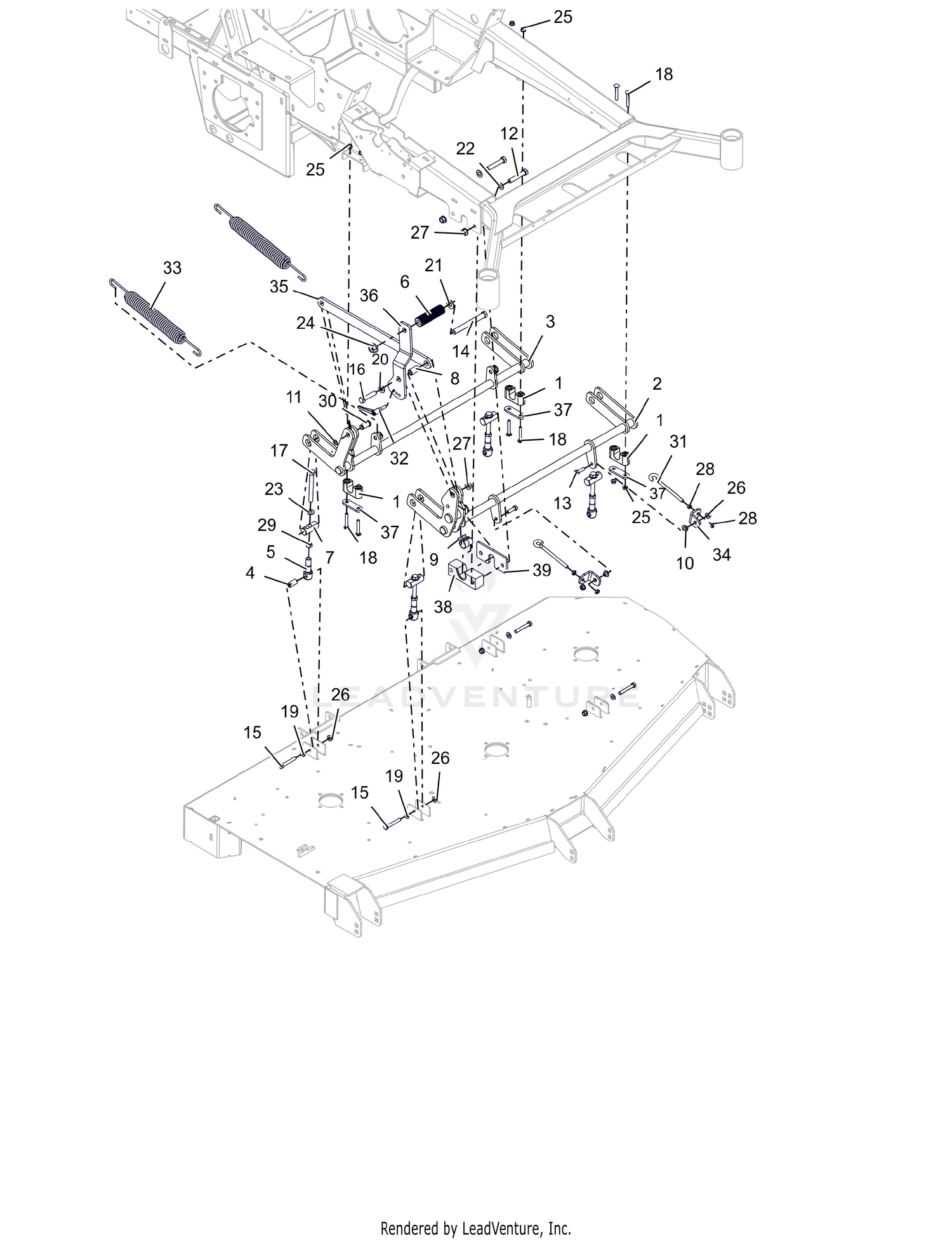

Deck Lift – 72"

Deck Lift – 72"

Parts (38)

RefPart NumberDescription
1 07500414 ASM-BUSHING, DECK LIFT Price: $21.95
2 09367751 WLDMT, FRONT DECK LIFT (BLACK) Price: $174.95
3 09367851 WLDMT, REAR DECK LIFT (BLACK) Price: $159.45
4 04895200 SPACER, DECK LEVELING Price: $2.45
5 05081400 LINK, DECK LIFT FORMED Price: $14.45
6 05120951 ROD, FOOT PEDAL (BLACK) Price: $20.45
7 05149500 PIN, DECK LIFT Price: $14.95
8 05400732 SPCR, SLV .531x.75x1.449 Price: $3.95
9 05400736 BUSHING, SHAFT Price: $12.45
10 05500435 BSHG-FLG .385X.500X.875X.406 Price: $1.95
11 05709200 RG-RTNG-EXT .625X.050 Price: $2.45
12 05901720 BLT,HEX .50-13X2.75 G5 ZCC Price: $4.45
13 05901724 BLT- HEX .38-16X1.25 G5 ZCC Price: $1.45
14 05901730 BLT, HEX .62-11X5.50 G5 FBP Price: $6.45
15 05901811 BLT, HEX .38-16X2.50 G8 ZCC Price: $3.45
16 05901835 BLT, HEX .50-13X2.25 G5 ZCC Price: $3.45
17 05902111 BLT, HEX 0.5-13X4.5S GR5 ZCC Price: $3.45
18 06200311 BLT, RHSSN.31-18X2.25 G5 ZCC Price: $3.95
19 06401013 WSHR-FLT .406X.812X.065 ZCC Price: $0.95
20 06401015 WSHR,FLT .531X1.062X.095 ZCC Price: $0.95
21 06401039 WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45
22 06401115 WSHR, FLT .531X1.00X.063 ZCC Price: $0.45
23 06401116 WSHR, FLT .557X1.040X.102 ZCC Price: $1.45
24 06500835 NUT,FLG-TOP LK .625-11 FBP Price: $6.45
25 06500840 NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95
26 06500901 NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95
27 06500902 NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95
28 06500910 NUT-JAM .375-16 G2 ZCC Price: $0.95
29 06500911 NUT-JAM .500-13 G2 ZCC Price: $1.45
30 06800207 PIN, CLEVIS .625 SNAP RING Price: $6.45
31 07001733 BOLT, EYE .38-16X4.50 .62DIABZ Price: $12.45
32 07500502 HANDLE, CLAMPING Price: $16.45
33 08300722 SPRG, DECK LIFT Price: $20.45
34 09368751 BRKT, SPRING ANCHOR (BLACK) Price: $16.95
35 09368851 LINK, DECK LIFT (BLACK) Price: $22.45
36 09378251 ARM, ADJUSTABLE FOOT PEDAL (BLACK) Price: $33.95
37 09382951 PLATE, PT600 BEARING SUPPORT (BLACK) Price: $5.45
38 09466900 BUSHING- DECK LIFT This part replaces 09394900. Price: $30.95
