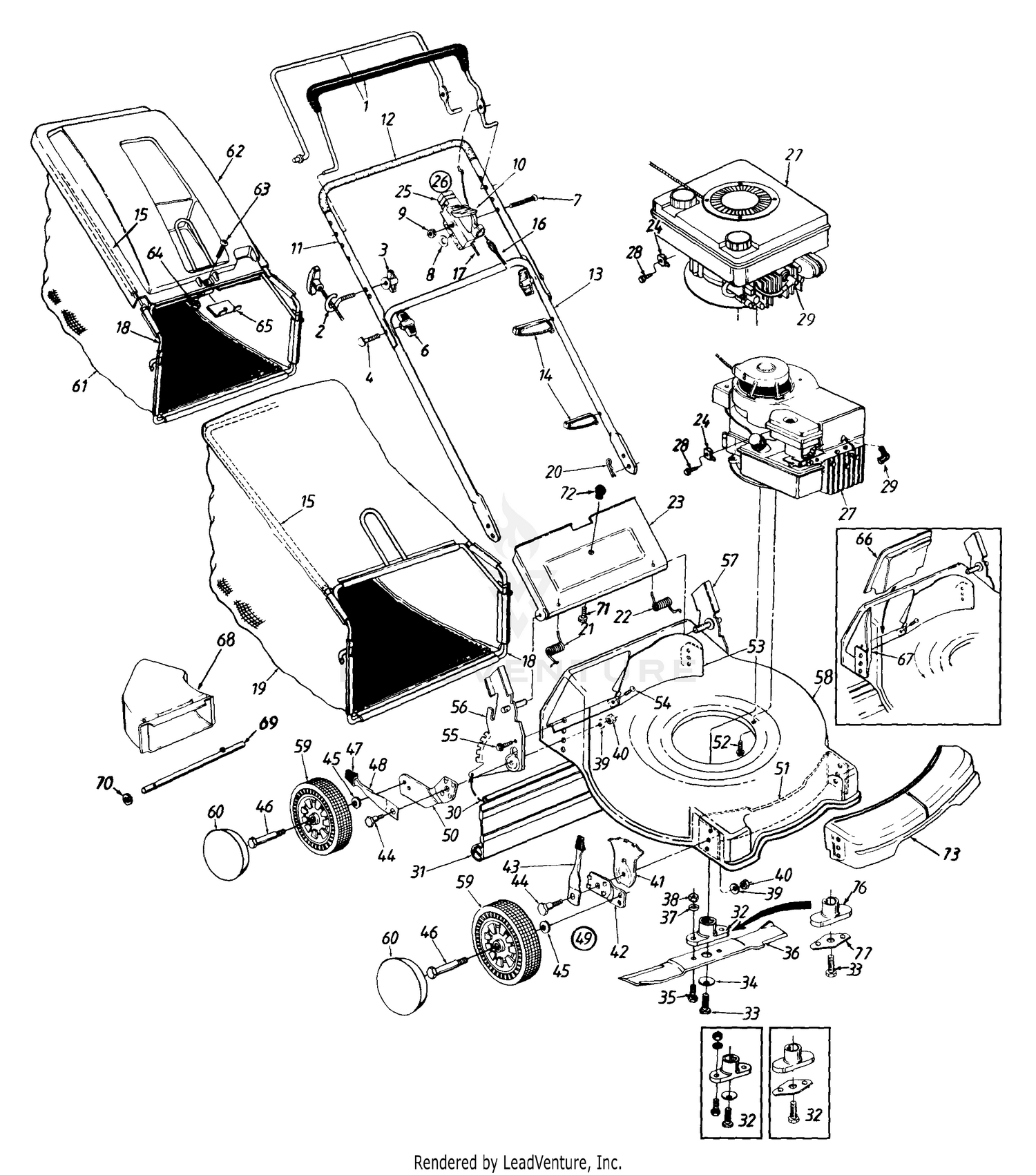

| Ref | Part Number | Description |
|---|
| 2 |
710-1205 |
Rope Guide Price: $3.53 |
| 3 |
720-0279 |
Handle Knob 1/4-20 Thd. Price: $3.93 |
| 4 |
710-1174 |
Curved Hd. Bolt 5/16-18 x 2" Lg. Price: $6.28 |
| 6 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 7 |
710-0605 |
Oval C-Sunk Mach. Scr. Price: $3.85 |
| 8 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 9 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 10 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 11 |
749-0538C |
UPPER HANDLE Not Available Price: |
| 13 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 14 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 20 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 21 |
732-0678 |
Door Spring - R.H. Price: $7.13 |
| 22 |
932-0677 |
SPRING-DOOR (LH) Not Available This part replaces 732-0677. Price: |
| 23 |
782-7000 |
REAR DISCHARGE DOOR Not Available Price: |
| 24 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751B213146. Price: $4.88 |
| 25 |
946-0875 |
Throttle Body This part replaces 646-0875. Price: $8.64 |
| 27 |
N/A |
Engine |
| 28 |
710-1237 |
Hex Wash. Hd. Scr. #10-32 x .62" Lg. Price: $3.89 |
| 30 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 31 |
731-04998 |
Rear Trailing Shield This part replaces 731-1236. Price: $27.86 |
| 32 |
753-0484 |
Blade Adapter Kit Price: $21.69 |
| 33 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Lg. Price: $3.48 |
| 34 |
736-0452 |
Bell-Wash. 39" I.D. Price: $4.05 |
| 35 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 37 |
736-0169 |
L-Wash. 3/8" I. D Price: $3.33 |
| 38 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 39 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 40 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 41 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 42 |
15262B |
Pivot Bar Price: $13.59 |
| 43 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 44 |
738-0507B |
Shld. Bolt .5" Dia. x .357" Price: $3.86 |
| 45 |
736-0105 |
Bell-Wash .38" I.D. x .88" O.D. Price: $3.96 |
| 46 |
738-0102 |
Axle Bolt Price: $9.22 |
| 47 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 48 |
732-0417A |
SPRING LEVER Not Available Price: |
| 49 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 50 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 51 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002. Price: |
| 52 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 53 |
782-5003A |
LH Rear Baffle This part replaces 782-5003. Price: $26.48 |
| 54 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 55 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 56 |
682-0516-0637 |
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available This part replaces 682-0516. Price: |
| 57 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-0515. Price: |
| 59 |
N/A |
Wheel Ass'y. Comp. |
| 60 |
N/A |
Hub Cap |
| 71 |
710-0192 |
Truss Scr #10-24 x .38" Lg. Price: $3.08 |
| 72 |
720-0275 |
KNOB Not Available Price: |
| 7510007755 |
CLAMP-THRO |
Not Available Price: 7510007755 |
