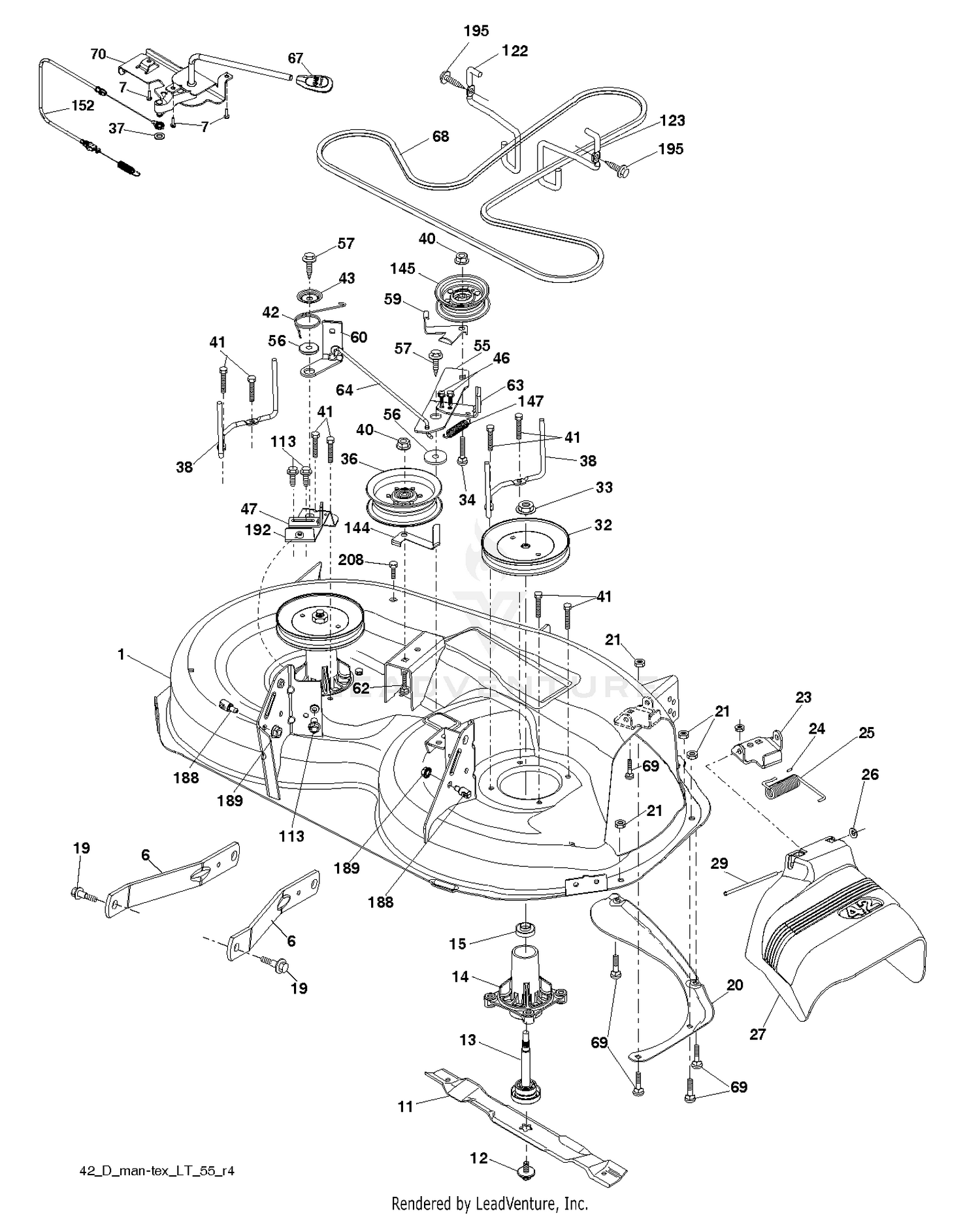

| Ref | Part Number | Description |
|---|
| 1 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 1 |
583338301 |
KIT.SVC.WELDMNT.42"199911X431 This part replaces 532199911. Price: $229.99 |
| 2 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 3 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 4 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 4 |
3230-30 |
SCREW-CARR Price: $10.99 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 6 |
140-5523 |
SCREW-HHF 5/8, PATCH This part replaces 133-7572. Price: $2.94 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
322-16 |
SCREW-HH Price: $3.39 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
584309301 |
SCREW.SEMS.7/16-20X1.HEX.HEAD Price: $1.99 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 587256501. Price: $32.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $7.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
Cap Sleeve 80x 112 Blk Mower (AYP part number) Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
Nut Push Phos & Oil (AYP part number) Price: $1.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $27.99 |
| 29 |
532131491 |
Rod Hinge 42" 6 75 Wlg (AYP part number) Price: $1.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
Bolt Carriage 3/8-16 x 1-1/2 (AYP part number) Price: $3.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
819131316 |
Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number) Price: $2.99 |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 46 |
532137729 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $2.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 55 |
532437110 |
IDLER.ARM.42" Price: $4.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
Guard TUV Idler (AYP part number) Price: $3.99 |
| 60 |
532197402 |
ARM BRAKE MOWER This part replaces 532197261. Price: $11.99 |
| 62 |
872110616 |
Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 (AYP part number) Price: $3.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532429636 |
BELT.DECK.DRIVE.42" Price: $32.99 |
| 69 |
872140505 |
Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number) Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401971 |
RETURN SPRING Price: $3.99 |
| 152 |
584243501 |
CABLE.MECHANICAL.CLUTCH Price: $22.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 192 |
532197260 |
BRKT.BRAKE.STAND.LH. Price: $8.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
