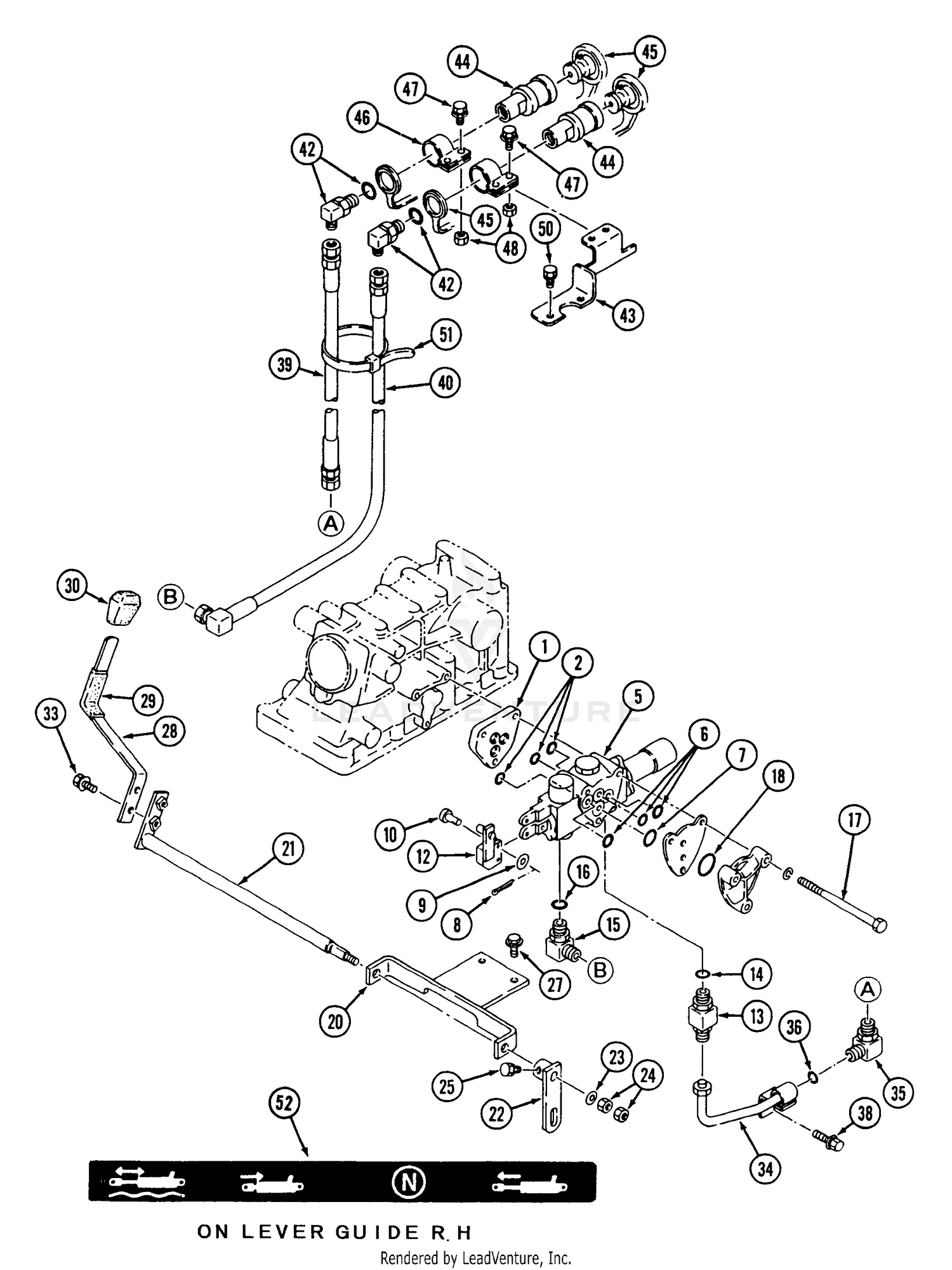

Auxiliary Valve Kit
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-7904 | DISCONTINUED Price: Call Us |
| 1 | MA-12185026000 | SPACER Not Available Price: |
| 2 | 94-3427 | PLUG Price: $105.80 |
| 2 | MA-08301100120 | O-RING Not Available Price: |
| 3 | 237-22 | O-RING Price: $2.43 |
| 5 | None | Body |
| 5 | 354-23 | BALL-CHECK Price: $3.75 |
| 6 | MA-08301100120 | O-RING Not Available This part replaces MA-08300100120. Price: |
| 7 | MA-08300100160 | O-RING Not Available Price: |
| 8 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 9 | MA-03500130815 | WASHER Not Available Price: |
| 10 | 92-7911 | BOOT Price: $31.31 |
| 10 | MA-11556501270 | PIN, CLEVI Not Available Price: |
| 11 | 233-46 | KNOB Price: $24.12 |
| 12 | 3253-5 | WASHER-LOCK Price: $0.29 |
| 12 | MA-19632483000 | ARM Not Available Price: |
| 13 | 94-3426 | DISCONTINUED Price: Call Us |
| 13 | MA-06203112171 | BODY Not Available Price: |
| 14 | 92-7912 | DISCONTINUED Price: Call Us |
| 14 | MA-08301100140 | O-RING Not Available Price: |
| 15 | 32121-38 | PIN-ROLL Price: $0.53 |
| 16 | 94-3425 | DISCONTINUED Price: Call Us |
| 16 | MA-08300100140 | O-RING Not Available Price: |
| 17 | MA-A0540108095 | BOLT Not Available Price: |
| 18 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 20 | MA-19632484AG0 | BRACKET Not Available Price: |
| 21 | MA-19632486000 | SHAFT Not Available Price: |
| 22 | MA-19632487000 | ARM Not Available Price: |
| 23 | MA-03500140818 | WASHER Not Available Price: |
| 24 | MA-A3010108002 | NUT Not Available Price: |
| 25 | MA-A0500108012 | BOLT Not Available Price: |
| 27 | MA-F1550110025 | BOLT,W/SPRING WASH Not Available Price: |
| 28 | None | Lever |
| 29 | MA-19632439000 | TUBE Not Available Price: |
| 30 | MA-11742449000 | GRIP Not Available Price: |
| 33 | MA-H1540108016 | BOLT,W/WASHER Not Available Price: |
| 34 | MA-19632490AG0 | PIPE PRESS. ASS'Y. Not Available Price: |
| 36 | MA-08300100140 | O-RING Not Available Price: |
| 38 | MA-H1550110016 | BOLT W/WASHER Not Available Price: |
| 39 | MA-19632492000 | HOSE ASSEMBLY Not Available Price: |
| 40 | MA-19632493000 | HOSE ASSEMBLY Not Available Price: |
| 42 | MA-19632494000 | FITTING Not Available Price: |
| 43 | MA-19632496AG0 | BRACKET Not Available Price: |
| 44 | 927-3093 | COUPLING Not Available This part replaces 727-3093. Price: |
| 45 | 731-3177 | PLUG-DUST Not Available Price: |
| 46 | MA-12185264000 | CLAMP COUPLER Not Available Price: |
| 47 | MA-H1540108020 | BOLT,W/WASHER Not Available Price: |
| 48 | MA-F3010108001 | NUT Not Available Price: |
| 50 | MA-F1540108012 | BOLT,W/SPRING WASH Not Available Price: |
| 51 | MA-00511070070 | BAND WIRE Not Available Price: |
| 502502601 | 502502601 | PULLER Price: $7.99 |
| 502503004 | 502503004 | FITTING TOOL Price: $22.99 |
| 502503101 | 502503101 | BALL BEARING PULLER Price: $84.99 |
| 502503301 | 502503301 | PISTON STOPPER Price: $5.99 |
| 502504501 | 502504501 | DISTANCE SLEEVE 35 MM Price: $3.99 |
| 502504601 | 502504601 | DISTANCE SLEEVE 57 MM Price: $6.99 |
| 502504701 | 502504701 | GROMMET, INTAKE Price: $6.99 |
| 502504801 | 502504801 | GROMMET, EXHAUST Price: $9.99 |
| 502505301 | 502505301 | FITTING SLEEVE Price: $4.99 |
| 502506602 | 502506602 | U-SPANNER Price: $9.99 |
| 502506702 | 502506702 | Price: Call Us |
| 502510002 | 502510002 | U-SPANNER Price: $8.99 |
| 502514901 | 502514902 | PULLER This part replaces 502514901. Price: $22.99 |
| 502515401 | 502515401 | SCREW SET Price: $12.99 |
| 502516101 | 502516101 | PULLER/ENGINE BLOCK Price: $54.99 |
| 502516901 | 502516901 | FITTING DRIFT Price: $11.99 |
| 502700301 | 502503101 | BALL BEARING PULLER This part replaces 502700301. Price: $84.99 |
| 502713601 | 502713601 | ALLEN KEY Price: $2.99 |
| 504909001 | 504909001 | BALL BEARING PULLER Price: $219.99 |
