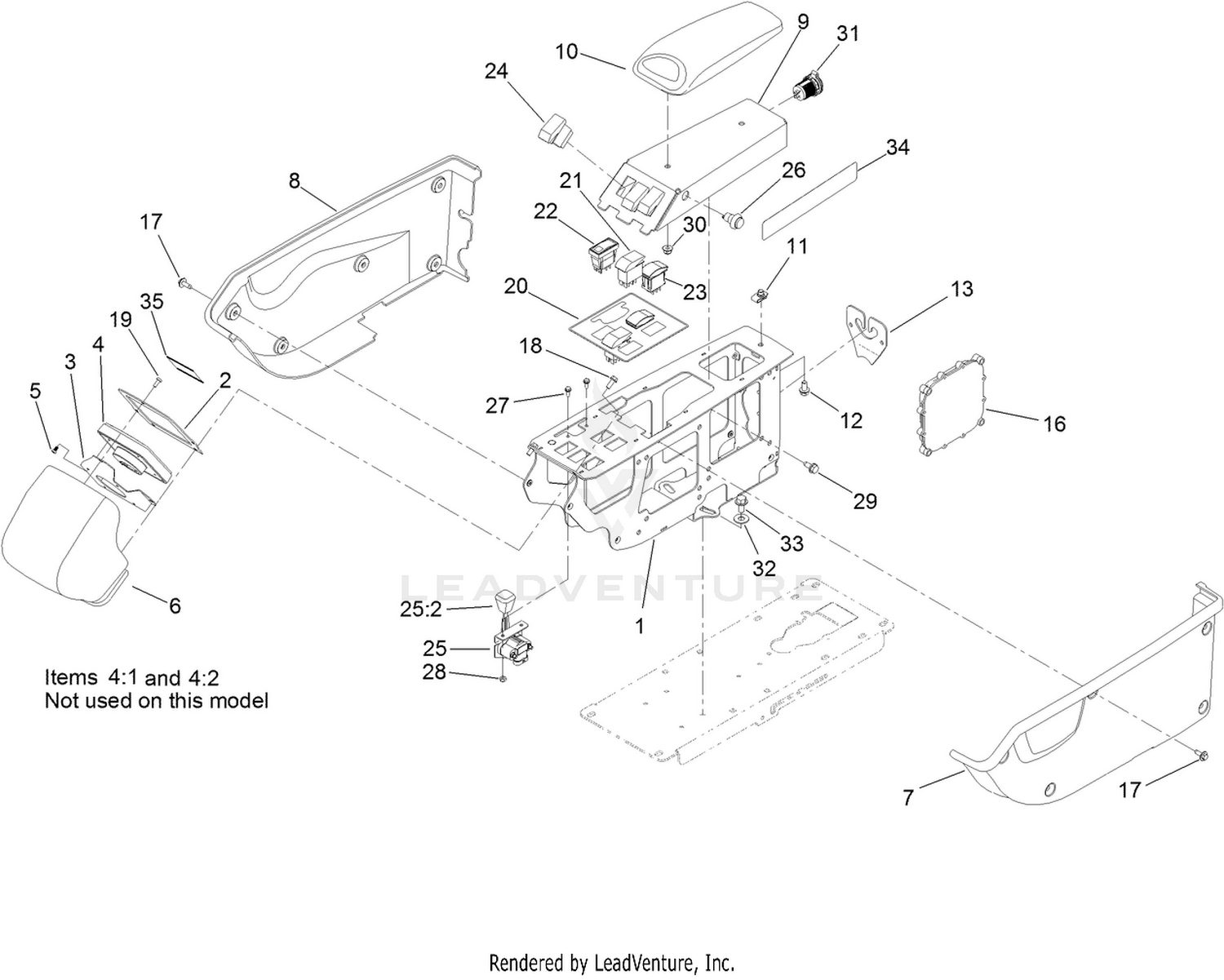

Control Console Assembly
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-5640-03 | FRAME-CONSOLE Price: $290.14 |
| 2 | 132-7615-03 | PLATE-MONITOR Price: $7.98 |
| 3 | 132-7610-0P | RETAINER - MONITOR This part replaces 132-7610-03. Price: $35.34 |
| 4 | 125-5320 | INFOCENTER Price: $1,675.09 |
| 5 | 132-7668 | SCREW-PPH Price: $0.34 |
| 6 | 132-7617 | HOOD-CONSOLE Price: $80.38 |
| 7 | 132-7611 | COVER-LH Price: $93.68 |
| 8 | 132-7612 | COVER-RH Price: $93.68 |
| 9 | 132-5645-03 | PANEL-ARM Price: $67.17 |
| 10 | 131-9637 | ARMREST-QUICK FIND Price: $68.09 |
| 11 | 112-3306 | NUT Price: $0.82 |
| 12 | 3234-14 | SCREW-HHF Price: $0.61 |
| 13 | 132-7704-03 | RETAINER-HARNESS, CONSOLE Price: $14.55 |
| 16 | 114-3321 | CONTROLLER-TEC Price: $1,515.96 |
| 17 | 119-4012 | SCREW-HWHTF Price: $0.61 |
| 18 | 32144-85 | SCREW-HWH Price: $1.59 |
| 19 | 3250-12 | SCREW-PPH Price: $0.25 |
| 20 | 132-7695 | DECAL-CONSOLE Price: $12.17 |
| 21 | 100-8490 | SWITCH-ROCKER, ON-NONE-ON Price: $33.76 |
| 22 | 104-9007 | SWITCH-ROCKER Price: $75.33 |
| 23 | 100-1535 | SWITCH Price: $84.91 |
| 24 | 95-8999 | SWITCH Price: $42.14 |
| 25 | 122-0111 | THROTTLE-ELECTRONIC Price: $238.70 |
| 26 | 125-7996 | SWITCH-PB, MOMENTARY Price: $123.36 |
| 27 | 3290-321 | SCREW-HWH Price: $3.99 |
| 28 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 29 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 30 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 31 | 131-8388 | SOCKET-USB Price: $57.32 |
| 32 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 33 | 110-9380 | SCREW-HWH Price: $1.89 |
| 34 | 132-7786 | DECAL-QUICKFIND Price: $13.48 |
