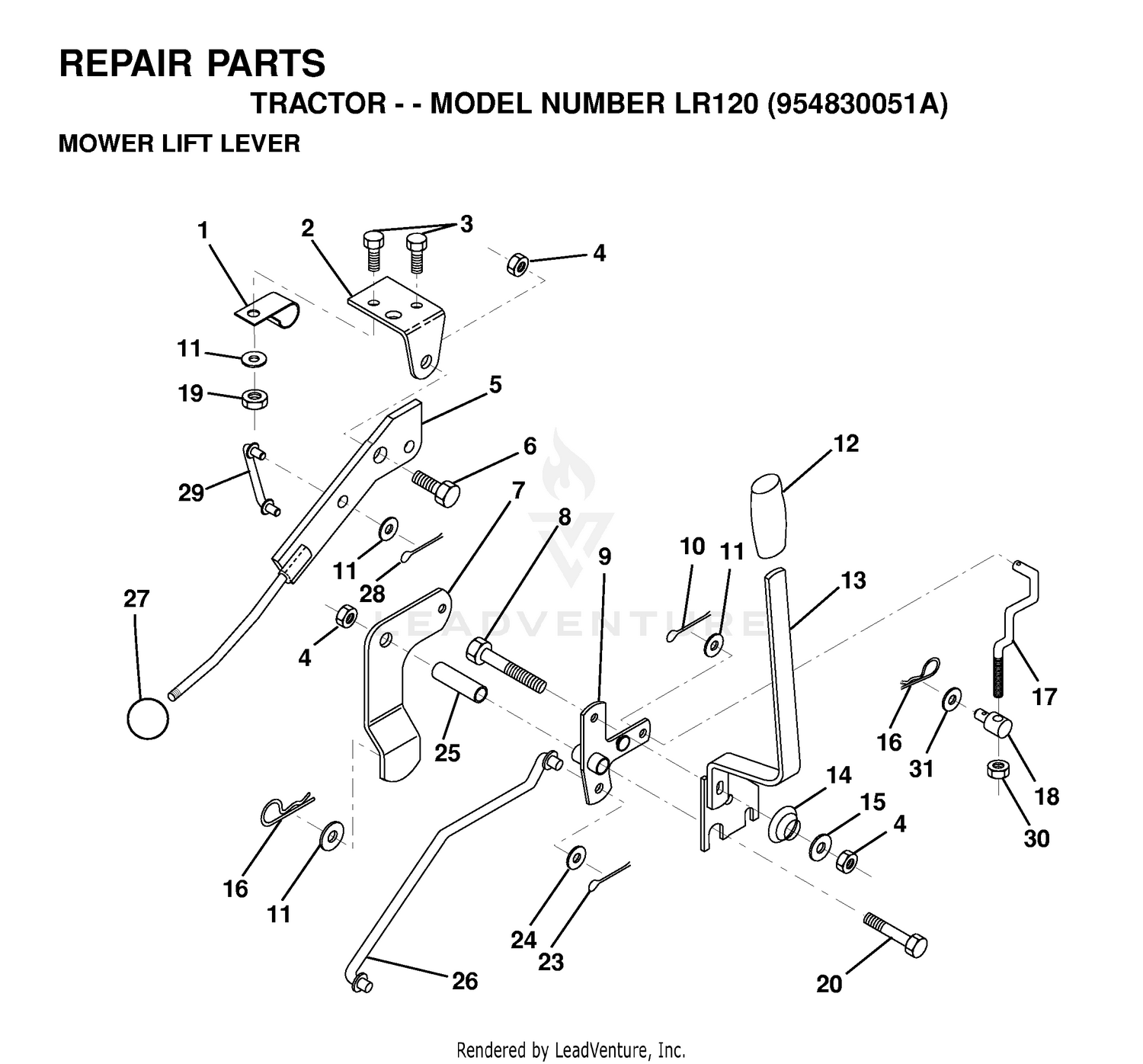

| Ref | Part Number | Description |
|---|
| 1 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 3 |
47-3880-03 |
CONTROL LINKAGE ASM This part replaces 47-3880. Price: $260.93 |
| 3 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 4 |
47-3620 |
BLOCK-PIVOT, LEVER Price: $54.93 |
| 4 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 5 |
532145187 |
CLUTCH LEVER Price: $5.69 |
| 6 |
47-3680-01 |
UPPER CONTROL TOWER ASM This part replaces 47-3680. Price: $528.76 |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 7 |
532135371 |
ASSEMBLY MOWER CLUTCH ARM Price: $7.93 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
874760636 |
BOLT Price: $4.99 |
| 9 |
47-3380-01 |
CONTROL TOWER ASM This part replaces 47-3380. Price: $407.03 |
| 9 |
532121930 |
BELLCRANK,LIFT Price: $11.99 |
| 10 |
3217-8 |
NUT-HEX Price: $1.34 |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 11 |
47-3630 |
ROD-LINKAGE, CONTROL Price: $104.04 |
| 12 |
327-6 |
SCREW-HH Price: $12.99 |
| 12 |
532122027 |
GRIP HANDLE Price: $5.72 |
| 13 |
32128-23 |
NUT-HF Price: $1.51 |
| 13 |
532139352 |
LIFT HANDLE ASSY Price: $15.88 |
| 14 |
325-6 |
SCREW-HH Price: $1.42 |
| 14 |
532123496 |
SPRING COMPRESSIO Price: $2.99 |
| 15 |
55-7380-01 |
TONGUE ASM This part replaces 55-7380. Price: $2,297.13 |
| 15 |
596134901 |
GSPH This part replaces 819131212. Price: $2.99 |
| 16 |
322-6 |
SCREW-HH Price: $0.45 |
| 16 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 17 |
26-8250-01 |
PIN-ARM, LIFT This part replaces 26-8250. Price: $99.04 |
| 17 |
532127359 |
LINK LIFT FRT Price: $19.99 |
| 18 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 18 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 20 |
47-3250-01 |
NO. 2 AND 3 LIFT ARM ASM This part replaces 47-3250. Price: $779.92 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 21 |
26-8160-01 |
SUPPORT-ARM, LIFT This part replaces 26-8160. Price: $1,410.43 |
| 22 |
3296-24 |
NUT-HEX Price: $4.44 |
| 23 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 23 |
T0000-3423 |
JACK-SIDEWIND This part replaces 60-8900. Price: $134.35 |
| 24 |
47-3460 |
U-BOLT Price: $29.53 |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 25 |
327-23 |
SCREW-HH Price: $3.60 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 26 |
532141470 |
LIFT ROD Price: $14.65 |
| 27 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 27 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 28 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 28 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 29 |
49-8180 |
DISCONTINUED Price: $15.10 |
| 29 |
532131655 |
LINK MOWER CLUTCH Price: $4.99 |
| 30 |
353-819 |
COUPLER-BODY Price: $156.66 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 31 |
353-820 |
COUPLER-TIP Price: $84.94 |
| 31 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 32 |
52-5990 |
HYD HOSE Price: $381.48 |
| 33 |
52-5991 |
HYD HOSE Price: $322.07 |
| 34 |
47-3810 |
LEVER-VALVE Price: $60.07 |
| 35 |
137-6138 |
DECAL-OPERATION This part replaces 47-5600. Price: $57.30 |
| 36 |
47-3820-03 |
COVER-COLUMN This part replaces 47-3820. Price: $79.97 |
| 37 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 38 |
47-3770 |
DECAL-MANUAL, OWNER Price: $25.33 |
| 39 |
3-0631 |
BALL-GRIP Price: $10.76 |
| 40 |
47-3450 |
PIVOT PIN Price: $54.81 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
