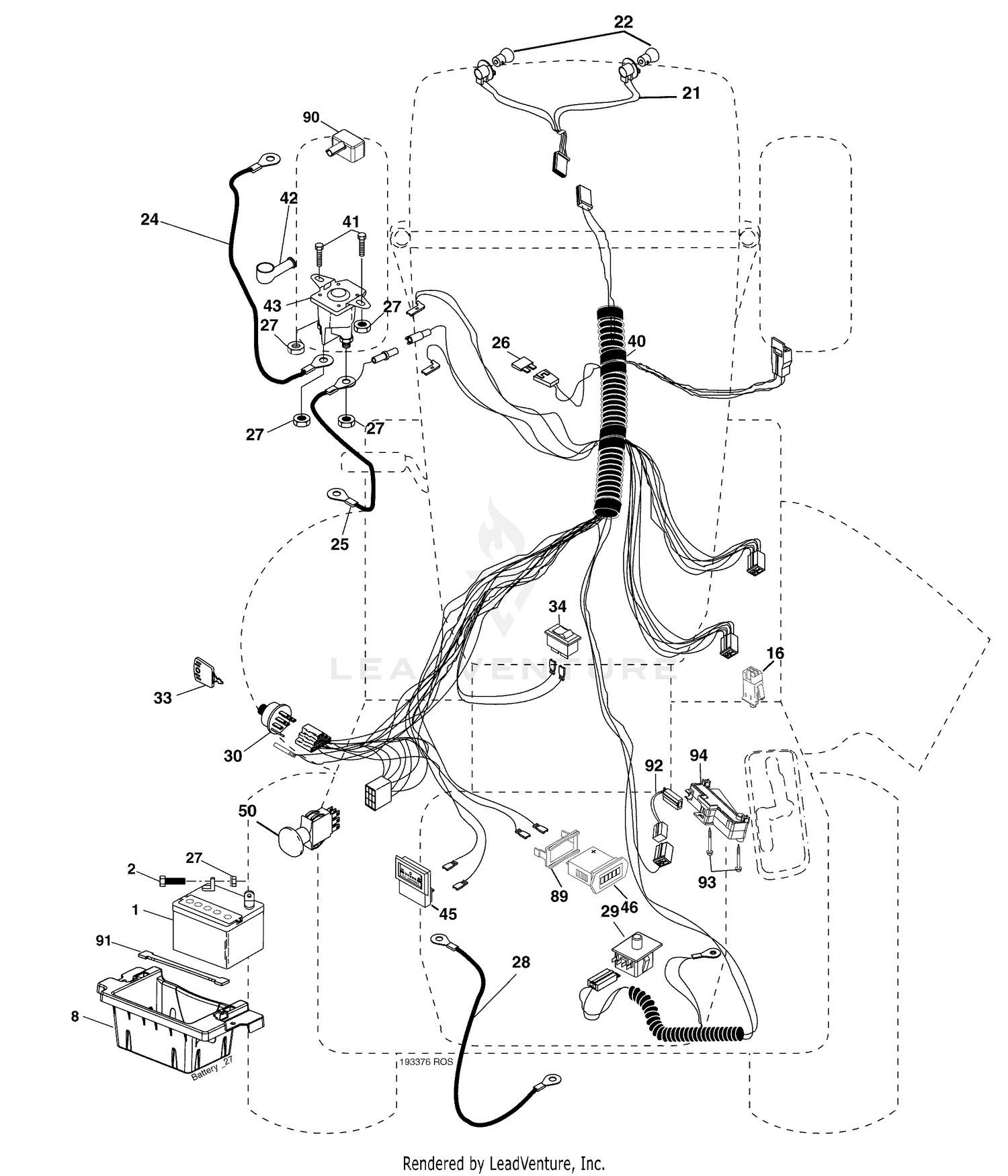

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 4 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 5 |
32128-21 |
NUT-HF Price: $0.39 |
| 6 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
106-5190 |
BATTERY This part replaces 63-9230. Price: $170.85 |
| 10 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 11 |
32103-2 |
NUT-WING Price: $0.68 |
| 12 |
28-1280 |
DISCONTINUED Price: Call Us |
| 13 |
70-1180 |
DISCONTINUED Price: Call Us |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 16 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 18 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 19 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 20 |
92-7802 |
DECAL-INSTR., START Price: $22.12 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
92-7800 |
BATTERY COVER ASM Price: $65.49 |
| 22 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 31 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
322-6 |
SCREW-HH Price: $0.45 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
2412-74 |
R-CLAMP Price: $2.37 |
| 36 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
32128-33 |
NUT-HF Price: $0.25 |
| 40 |
532193376 |
HARNESS.IGN.ELECT.STL Price: $104.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
72-3690 |
DISCONTINUED Price: Call Us |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 42 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 43 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 47 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 48 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 50 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 50 |
582107604 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532196112. Price: $29.99 |
| 51 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 52 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 53 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 54 |
93-3185 |
COVER ASM This part replaces 93-3184. Price: $144.25 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532193465 |
HARNESS.PIGTAIL.REVERSE.SWITCH Price: $7.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
