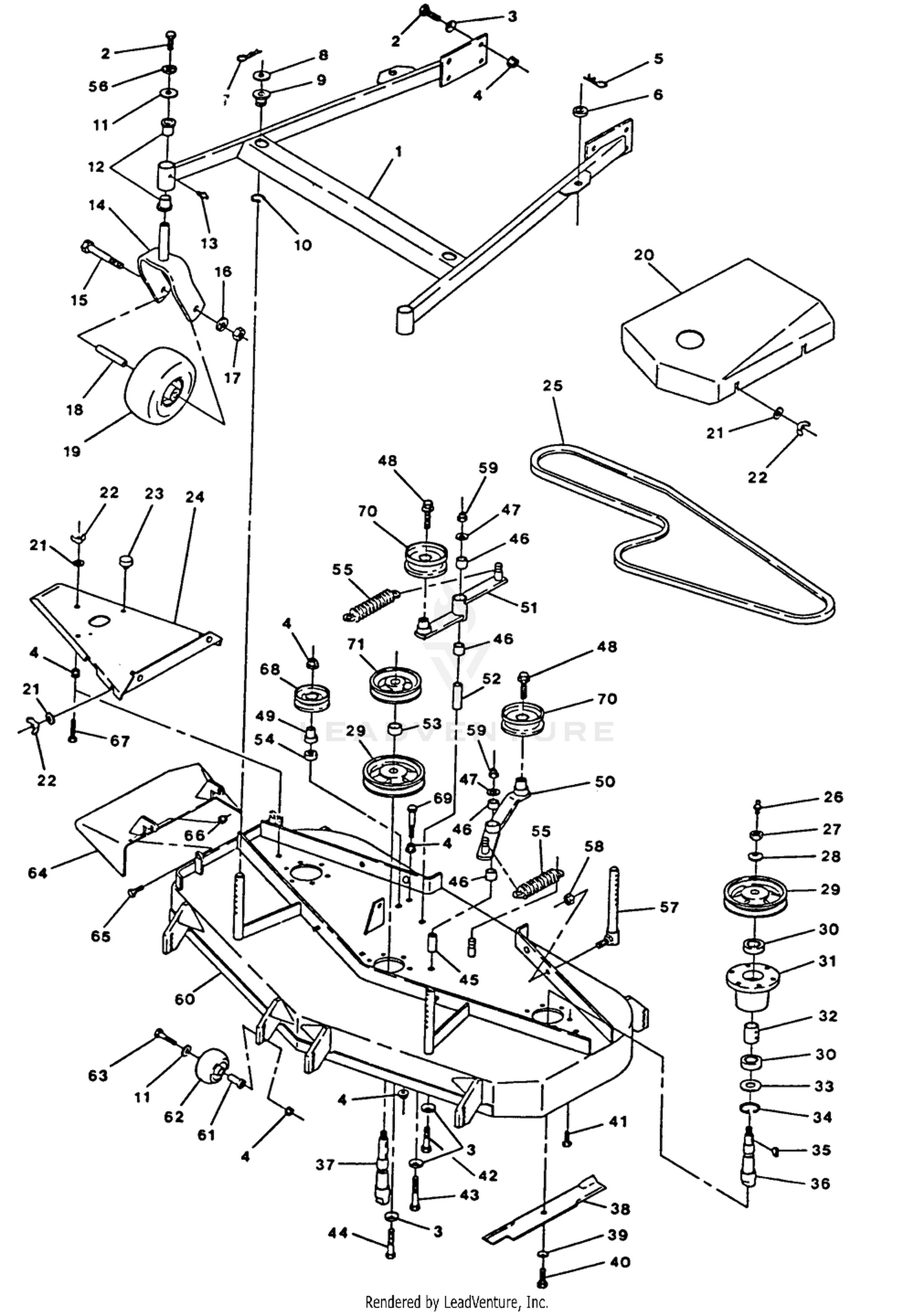

| Ref | Part Number | Description |
|---|
| 1 |
602593 |
Support Wldmt, Dk. Price: Call Us |
| 2 |
800292 |
Screw, Hex Cap 3/8-16x1 Price: Call Us |
| 3 |
303327 |
Washer, Disc Spring 3/8 Price: Call Us |
| 4 |
809007 |
Nut, Whizlock 3/8-16 Price: Call Us |
| 5 |
806006 |
Hairpin, Cotter Price: Call Us |
| 6 |
303164 |
Spacer, Blade Drive Price: Call Us |
| 7 |
806007 |
Hairpin, Cotter Price: Call Us |
| 8 |
513338 |
Washer Price: Call Us |
| 9 |
513336 |
Bushing, Deck Support Price: Call Us |
| 10 |
808507 |
Ring, Retaining Price: Call Us |
| 11 |
373034 |
Washer, Swivel Price: Call Us |
| 12 |
303044 |
Flange Thrust Bearing Price: Call Us |
| 13 |
811001 |
Zerk, Straight 1/8 Price: Call Us |
| 14 |
512894 |
Weld Assy - Caster Fork Price: Call Us |
| 15 |
800334 |
Screw, Hex Cap 1/2-13x6 Price: Call Us |
| 16 |
805008 |
Washer, Lock Hlcl Spg 1/2 Reg Price: Call Us |
| 17 |
804509 |
Nut, Reg Hex 1/2-13 Price: Call Us |
| 18 |
513547 |
Spacer Price: Call Us |
| 19 |
513648 |
Tire & Wheel Assembly Price: Call Us |
| 20 |
543584 |
Cover, Deck Drive Belt Price: Call Us |
| 21 |
805259 |
Washer, Flat 3/8 SAE Price: Call Us |
| 22 |
543678 |
Wingnut - Nylon Insert Price: Call Us |
| 23 |
513291 |
Bumper, seat Price: Call Us |
| 24 |
542588 |
Cover, Deck Wldmt. Price: Call Us |
| 25 |
603045 |
Belt - Blade Drive Price: Call Us |
| 26 |
811006 |
Zerk, Straight 1/4-28 5/32 Price: Call Us |
| 27 |
804510 |
Nut, Reg Hex 5/8-18 Price: Call Us |
| 28 |
513208 |
Washer-Spring Disc 5/8 Price: Call Us |
| 29 |
513207 |
Sheave - Blade Drive Price: Call Us |
| 30 |
303057 |
Bearing - Ball 305K Price: Call Us |
| 31 |
513186 |
Housing- Bearing Price: Call Us |
| 32 |
513188 |
Spacer, Bearing Price: Call Us |
| 33 |
513193 |
Seal, Mech Dust Price: Call Us |
| 34 |
808506 |
Ring, Snap Price: Call Us |
| 36 |
603031 |
Spindle - Outer Blade Price: Call Us |
| 37 |
603022 |
Spindle - Center Blade Price: Call Us |
| 38 |
603283 |
Blade - 20.5 Diameter Price: Call Us |
| 41 |
809035 |
Screw, Hex Taptite 3/8x16x1 Price: Call Us |
| 43 |
800805 |
Screw, Hex Cap 3/8-16x3-1/2 G8 Price: Call Us |
| 44 |
800297 |
Screw, Hex Cap 3/8-16x2-1/4 Price: Call Us |
| 45 |
603044 |
Bushing, Idler Pivot Price: Call Us |
| 46 |
513034 |
Pivot, Bearing Price: Call Us |
| 47 |
805260 |
Washer, Flat Std 3/8 Price: Call Us |
| 48 |
803016 |
Bolt, Hex Whizlock 3/8-16x1 Price: Call Us |
| 49 |
403057 |
Bushing - Idler Price: Call Us |
| 50 |
602568 |
Arm Weldment Deck Drive Idler Price: Call Us |
| 51 |
602591 |
Arm Weldment - Deck Idler Price: Call Us |
| 52 |
603384 |
Bushing, Idler Pivot Price: Call Us |
| 53 |
603504 |
Spacer - Tube Price: Call Us |
| 54 |
603050 |
Bushing, Spacer Price: Call Us |
| 55 |
603413 |
Spring - Extension Price: Call Us |
| 56 |
805006 |
Washer, 3/8 Heavy Spring Price: Call Us |
| 57 |
603540 |
Link - Rear Deck Support Price: Call Us |
| 58 |
803031 |
Nut, Torque 3/8-24 Price: Call Us |
| 59 |
804257 |
Nut, Nyloc 3/8-16 Price: Call Us |
| 60 |
602585 |
Weld Assy - 60" Deck Price: Call Us |
| 61 |
603602 |
Bushing, Roller Price: Call Us |
| 62 |
603299 |
Roller, Antiscalp Price: Call Us |
| 64 |
542606 |
Chute Wldmt. Discharge Price: Call Us |
| 65 |
800273 |
Screw, Hex Cap 5/16-18x1 Price: Call Us |
| 66 |
804256 |
Nut, Nylock 5/16-18 Price: Call Us |
| 68 |
513304 |
Idler - V - Belt Price: Call Us |
| 69 |
800297 |
Screw, Hex Cap 3/8-16x2-1/4 Price: Call Us |
| 70 |
603497 |
Idler Puller Price: Call Us |
| 513809 |
Roller |
Bearing Price: Call Us 513809 |
| 513810 |
Bushing |
Price: Call Us 513810 |
| 602586 |
Idler |
Arm Assy Deck Drve w/Bearings Price: Call Us 602586 |
| 602604 |
Idler |
Arm Assy w/Bearings Price: Call Us 602604 |
| 604261 |
Center |
Housing - Complete Price: Call Us 604261 |
| 604262 |
Drive |
Assy - Outer Blade Price: Call Us 604262 |
