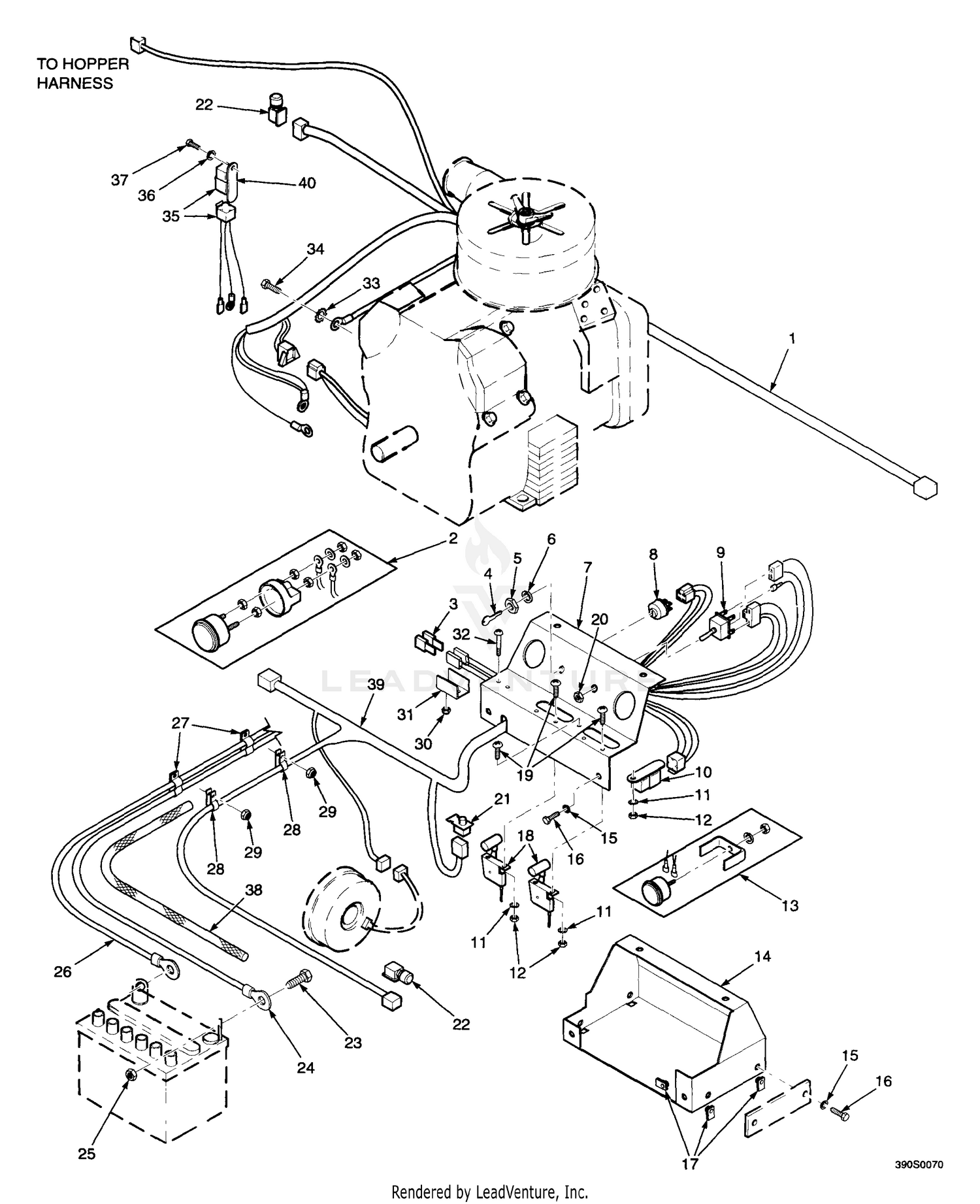

| Ref | Part Number | Description |
|---|
| 1 |
481422 |
Harness, Engine Price: Call Us |
| 2 |
48023 |
Hourmeter Price: Call Us |
| 3 |
48298 |
Fuse, 20 Amp Price: Call Us |
| 4 |
48017-02 |
Key & Ring Assembly Price: Call Us |
| 5 |
48017-04 |
Nut, Hex, 5/8-32 Price: Call Us |
| 6 |
48017-03 |
Lockwasher, 5/8 Internal Price: Call Us |
| 7 |
46883 |
Instrument Panel, Top With Decal Price: Call Us |
| 8 |
48798 |
Keyswitch Price: Call Us |
| 9 |
48787 |
Switch, Mower Engagement Electric Clutch Price: Call Us |
| 10 |
48788 |
Relay Price: Call Us |
| 11 |
04031-01 |
Lockwasher, #10 External Tooth Price: Call Us |
| 12 |
04021-01 |
Hex Locknut, Elastic Stop, #10-32 Price: Call Us |
| 13 |
481755 |
Ammeter This part replaces 48022. Price: Call Us |
| 14 |
45798 |
Base, Instrument Panel Price: Call Us |
| 15 |
04030-02 |
Lockwasher, 1/4" Price: Call Us |
| 16 |
04001-01 |
Bolt, Hex Head, 1/4-20 x 3/4" Price: Call Us |
| 17 |
04110-01 |
U-Nut Price: Call Us |
| 18 |
481363 |
Throttle and Choke Controls Price: Call Us |
| 19 |
04010-01 |
Screw, Washer Round Head, #10-32 x 1/2" Price: Call Us |
| 20 |
48787-01 |
Nut, Hex, 1/2-27 Price: Call Us |
| 21 |
48717 |
Switch, Interlock - Seat Price: Call Us |
| 22 |
481474 |
Switch, Interlock - (Neutral and Hopper) Price: Call Us |
| 23 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 24 |
48029-16 |
Cable, Battery - Red Price: Call Us |
| 25 |
04020-02 |
Nut, Hex, 1/4-20 Price: Call Us |
| 26 |
48029-17 |
Cable, Battery - Black Price: Call Us |
| 27 |
48030-11 |
Clamp, Double Cable Price: Call Us |
| 28 |
48030-10 |
Clamp, Cable Price: Call Us |
| 29 |
04021-10 |
Hex Locknut, Elastic Stop, 5/16-18 Price: Call Us |
| 30 |
04021-01 |
Hex Locknut, Elastic Stop, #10-32 Price: Call Us |
| 31 |
42413 |
Bracket, Fuse Holder Price: Call Us |
| 32 |
04010-11 |
Screw, Round Head, #10-32 x 1-1/2" Price: Call Us |
| 33 |
04031-03 |
Lockwasher, External Tooth, 5/16 Price: Call Us |
| 34 |
04002-12 |
Bolt, Hex Head, M8-1.25 x 20 Price: Call Us |
| 36 |
04030-02 |
Lockwasher, 1/4 Price: Call Us |
| 37 |
04002-14 |
Bolt, Hex Head, M6-1.125 x 10 Price: Call Us |
| 38 |
48033-04 |
Nylon Sleeve, 24" Price: Call Us |
| 39 |
481421 |
Wire Harness, STR Price: Call Us |
