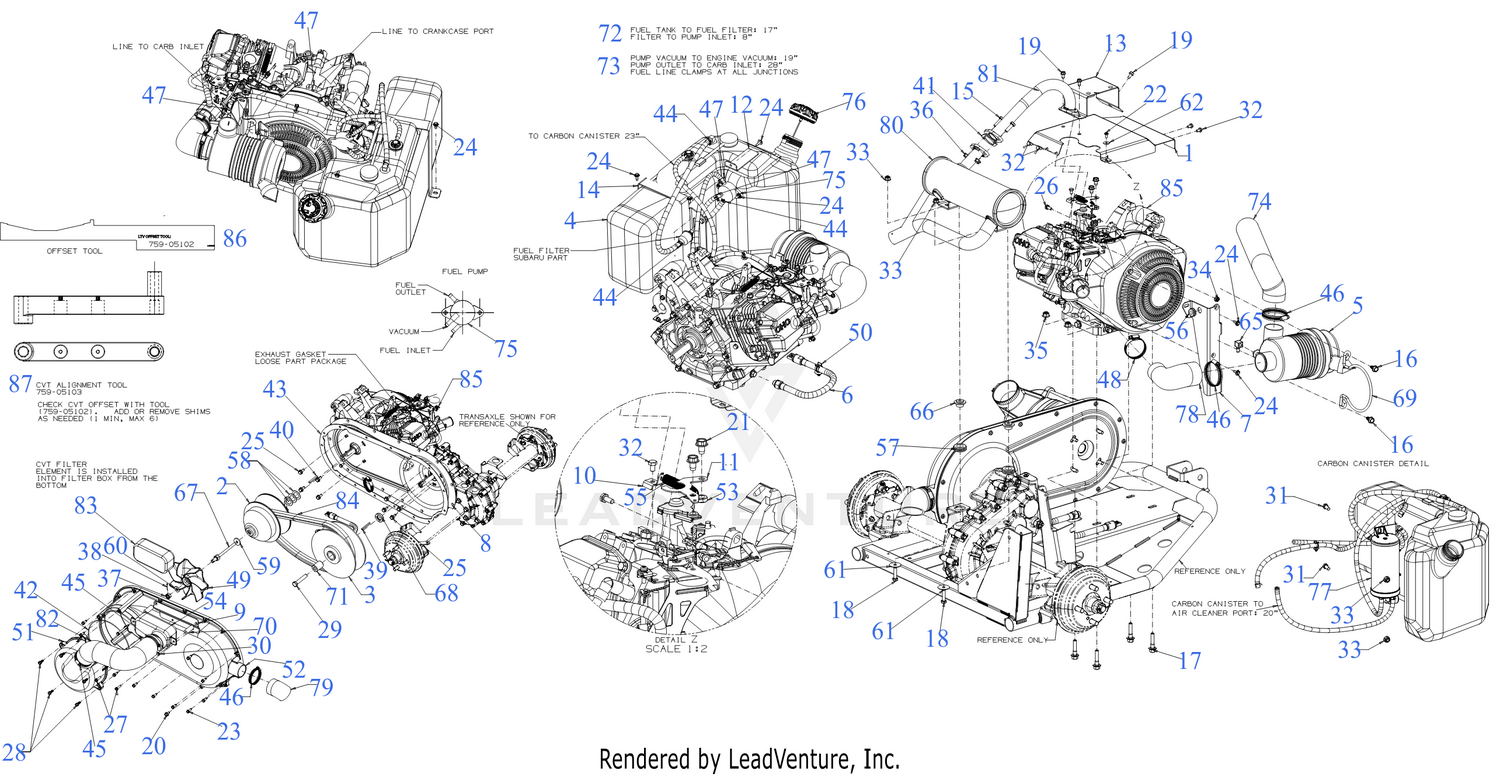

| Ref | Part Number | Description |
|---|
| 1 |
607E05151 |
ENGINE COVER ASSEMBLY Price: $69.26 |
| 2 |
918-07242 |
CVT DRIVER CLUTCH ASSEMBLY Price: $758.85 |
| 3 |
918-07245 |
CVT DRIVEN CLUTCH ASSEMBLY Price: $683.11 |
| 4 |
651-05356B |
FUEL TANK ASSEMBLY (5 GALLON) Price: $520.43 |
| 5 |
951-05361A |
AIR CLEANER FILTER ASSEMBLY Price: $155.12 |
| 6 |
651-05527A |
OIL DRAIN HOSE ASSEMBLY (M14-1.5MM) Price: $47.10 |
| 8 |
707-06491 |
BACK COVER PLATE Price: $120.28 |
| 9 |
707E06589A |
CVT INTAKE TUBE SUPPORT Not Available Price: |
| 10 |
707Z06590 |
SPRING RETENSION BRACKET Price: $20.42 |
| 11 |
707Z06608B |
THROTTLE MOUNTING BRACKET Price: $5.07 |
| 12 |
707E06635A |
FUEL TANK TOP BRACKET Price: $13.82 |
| 13 |
707E06642A |
AIR INLET COVER Price: $46.23 |
| 14 |
707-06692 |
BRKT:STRAP: FUEL TANK Price: Call Us |
| 15 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 16 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 17 |
710-04640 |
SCREW 3/8-18 x 1.75 GR5 Price: $3.63 |
| 18 |
710-0528 |
SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 19 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 20 |
710-0604A |
SCREW 5/16-18 x .625 Price: $3.96 |
| 21 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 22 |
710-06085 |
SCREW M5-.8X10MM SLOT/TORX Not Available Price: |
| 23 |
710-06115 |
SCREW-TT 1/4-20 x .875 Price: $3.86 |
| 24 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 25 |
710-06525 |
HEX FLANGE BOLT 5/16-24:0.75 Price: $3.04 |
| 26 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 27 |
710-0788 |
SCREW 1/4-20 x 1.00 Price: $6.20 |
| 28 |
710-0895 |
SCREW 1/4-15 x .750 Price: $5.82 |
| 29 |
710-1018 |
SCREW 1/2-20 x 2.75 GR8 Price: $9.86 |
| 30 |
710-1206 |
SCREW 1/4-20 x 2.375 Price: $6.20 |
| 31 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 32 |
710-3209 |
SCREW M6-1.0X10MM GR8.8 Price: $7.30 |
| 33 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 34 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 35 |
712-04065 |
NUT Price: $3.68 |
| 36 |
712-04339 |
FLANGE NUT Price: $3.37 |
| 37 |
712-3012A |
HEX NUT This part replaces 912-3012. Price: $11.49 |
| 38 |
714-0111 |
Pin, 3/32 X 7/8 Cot This part replaces 914-0111. Price: $4.20 |
| 39 |
714-0139 |
SQUARE KEY 3/16 x 3/16 x 2 Price: $7.98 |
| 40 |
714-05029 |
KEY 1/4 x 3/16 Price: $8.81 |
| 41 |
BS-692236 |
EXHAUST GASKET Price: $4.66 |
| 42 |
921-04859 |
O-RING 7.98 x 8.137 x 0.103 Price: $3.18 |
| 43 |
921-04871 |
CVT COVER SEAL Price: $63.21 |
| 44 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 45 |
726-04080 |
HOSE CLAMP Price: $10.01 |
| 46 |
726-0476 |
HOSE CLAMP 2-3" Price: $10.68 |
| 47 |
726-05093 |
HOSE CLAMP 0.470 Price: $2.45 |
| 48 |
726-05192 |
HOSE CLAMP (1.31-2.25) Price: $6.11 |
| 49 |
731-04275 |
IMPELLER Price: $30.81 |
| 50 |
731-10746A |
DRAIN HOSE CLIP Price: $6.51 |
| 51 |
731-12055 |
CVT FAN COVER Price: $19.38 |
| 52 |
731-12099A |
CVT COVER This part replaces 731-12099. Price: $46.96 |
| 53 |
731-12266 |
CONTROL PANEL COVER Price: $4.59 |
| 54 |
731-12440 |
CVT FILTER HOUSING Not Available Price: |
| 55 |
732-04973 |
EXTENSION SPRING Price: $3.86 |
| 56 |
735-0225 |
GROMMET Not Available Price: |
| 57 |
735-05178 |
GROMMET .75 x 1.063 x .4375 Price: $3.60 |
| 58 |
936-0163 |
FLAT WASHER Price: $4.05 |
| 59 |
736-0247 |
FLAT WASHER Price: $8.82 |
| 60 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 61 |
736-0362 |
FLAT WASHER .322 ID x 1.25 x .060 Price: $3.93 |
| 62 |
736-04424 |
WASHER Not Available Price: |
| 66 |
738-05088 |
SHOULDER SPACER .750 x .145 Price: $3.86 |
| 67 |
738-05193 |
THREADED FAN ROD Price: $30.54 |
| 68 |
738-05196 |
SHOULDER SPACER Price: $33.76 |
| 69 |
747-06691 |
AIR FILTER STRAP ROD Price: $17.32 |
| 70 |
750-04783 |
SPACER Price: $3.36 |
| 71 |
750-06595 |
CVT DRIVEN SPACER Not Available Price: |
| 72 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-28. Price: $41.21 |
| 73 |
751-10750-62 |
FUEL HOSE LO PERMEATION 62" Price: $68.98 |
| 74 |
751-10995 |
AIR INLET HOSE Price: $43.87 |
| 75 |
751-14134A |
ENGINE FUEL PUMP This part replaces 751-14134. Price: $43.24 |
| 76 |
751P15242A |
FUEL CAP (W/ 8"TETHER) This part replaces 951-14767. Price: $34.16 |
| 77 |
951-14861 |
CARBON CANISTER Price: $63.97 |
| 78 |
751-15289 |
AIR FILTER INTAKE HOSE Price: $37.21 |
| 79 |
751-15306 |
CVT EXHAUST HOSE Price: $23.20 |
| 80 |
751-15344 |
MUFFLER Price: $281.79 |
| 81 |
751-15346 |
EXHAUST PIPE Price: $55.64 |
| 82 |
751-15358 |
CVT INTAKE TUBE Not Available Price: |
| 83 |
951-15417 |
CVT INLET FILTER Price: $18.15 |
| 84 |
954-05142 |
CVT BELT 4X2 Price: $138.56 |
| 85 |
SB-EX400VP6100 |
COMPLETE ENGINE LTV Not Available Price: |
| 86 |
759-05102 |
TOOL - CVT OFFSET Not Available Price: |
| 87 |
627-00100 |
TOOL - CVT ALIGNMENT LTV Not Available This part replaces 759-05103. Price: |
