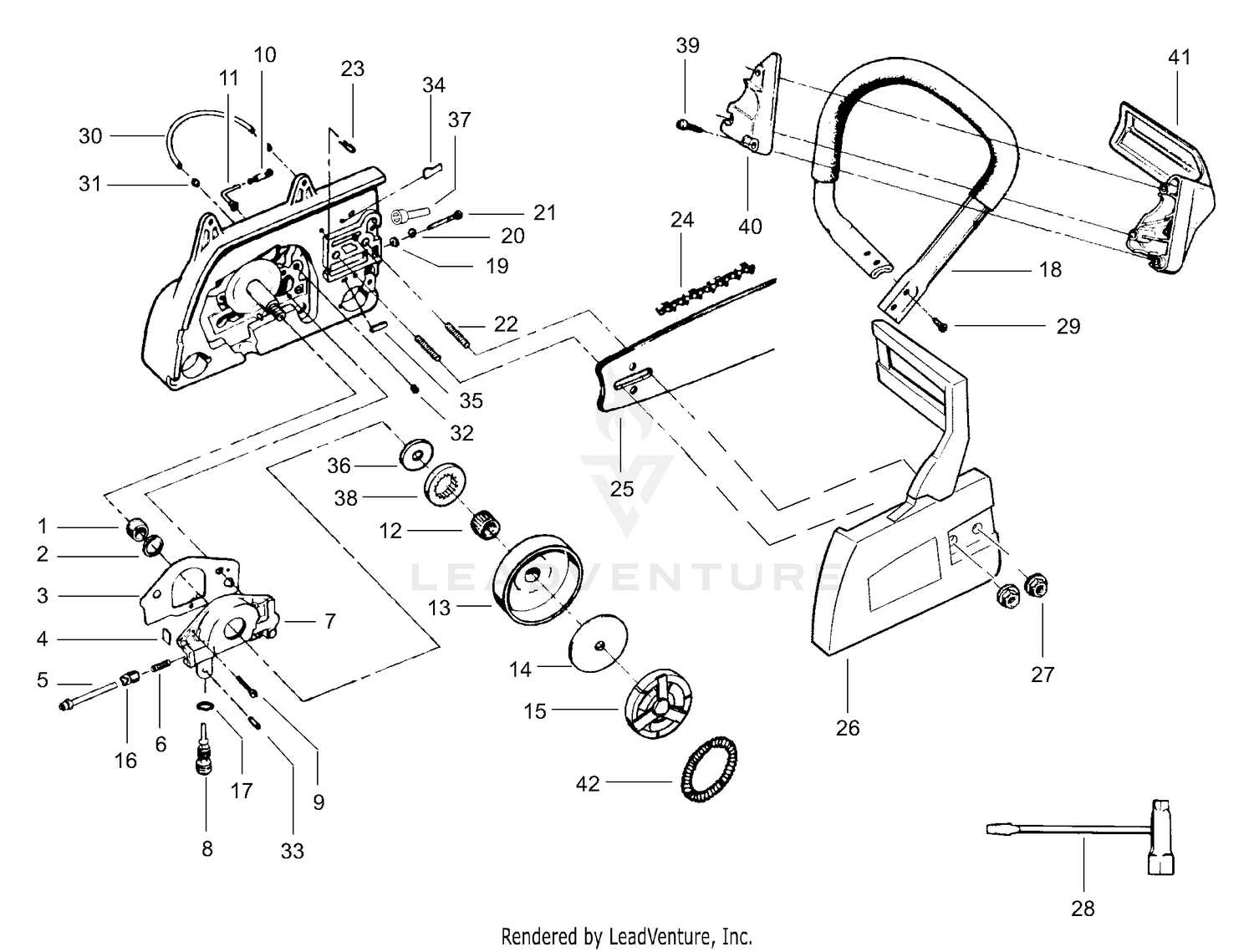

| Ref | Part Number | Description |
|---|
| 1 |
3-6880 |
DISCONTINUED Price: Call Us |
| 1 |
530027140 |
Worm Gear Price: $8.99 |
| 2 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 2 |
530019147 |
Seal Price: $3.99 |
| 3 |
530069487 |
Gasket Kit Price: $6.99 |
| 4 |
530027128 |
Dust Plug Price: $1.99 |
| 5 |
530014204 |
Plunger Price: $9.99 |
| 6 |
530027126 |
Spring Price: $1.99 |
| 7 |
530069218 |
Oil Pump Ass'y. Price: $54.99 |
| 8 |
530015873 |
Oiler Adjustment Screw Price: $5.99 |
| 9 |
530015650 |
Screw-Pinch Clamp This part replaces 530015871. Price: $1.99 |
| 10 |
530027272 |
Oil Pickup & Filter Price: $3.99 |
| 11 |
530027192 |
Oiler Intake Line Price: $1.99 |
| 12 |
530032049 |
Clutch Bearing Price: $8.99 |
| 13 |
530048083 |
Drum Sprocket Price: $17.99 |
| 14 |
530027161 |
Clutch Plate Price: $1.99 |
| 15 |
530014161 |
Clutch Ass'y. Model 3450 T1 & T2 & T4 Price: $9.99 |
| 15 |
530049418 |
Clutch Ass'y. Model 3750 T1 & T2, 3450 T3 Price: $11.99 |
| 16 |
530027129 |
Oiler Gear Spur Price: $0.99 |
| 18 |
530053350 |
HANDLE This part replaces 530047163. Price: $22.99 |
| 19 |
530023064 |
Bar Adjusting Pin Price: $3.99 |
| 20 |
530038593 |
Retainer Price: $0.99 |
| 21 |
530016110 |
Screw Price: $0.99 |
| 22 |
530016238 |
Bar Stud Price: $1.99 |
| 23 |
530015108 |
Vent Pin Price: $1.99 |
| 24 |
952051266 |
Chain Model 3450-20" (72LXP) Price: $22.77 |
| 24 |
952051459 |
Chain Model 3750-22" (72LXP) Price: Call Us |
| 25 |
952044544 |
Bar Model 3450-20" (SN) Price: Call Us |
| 25 |
952044723 |
Bar Model 3750-22" (SN) Price: Call Us |
| 26 |
507476721 |
Chainbrake (Type 4) Price: $44.99 |
| 27 |
530015251 |
BAR NUT Price: $1.99 |
| 28 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 28 |
545006011 |
SCRENCH This part replaces 530031146. Price: $6.99 |
| 29 |
530016058 |
Screw Price: $1.99 |
| 30 |
530021061 |
Oiler Discharge Line Price: $1.99 |
| 31 |
530002464 |
Oiler Discharge Sleeve Price: $1.99 |
| 32 |
530015422 |
Tubing Nut Price: $1.99 |
| 33 |
530015752 |
Oiler Adjustment Pin Price: $1.99 |
| 34 |
530027222 |
Chain Pad- Top Price: $1.99 |
| 35 |
530027223 |
Chain Pad Price: $0.99 |
| 36 |
530015733 |
Thrust Washer Price: $1.99 |
| 37 |
530029236 |
Crankcase Plug Price: $1.99 |
| 38 |
530048098 |
Rim Floating (3/8) Price: $12.99 |
| 39 |
530015509 |
Screw-Handguard (Type 1-3 only Price: $1.99 |
| 40 |
530024467 |
Cap-Handguard (Type 1-3 only) Price: $4.99 |
| 41 |
530024466 |
Handguard (Type 1-3 only) Price: $11.99 |
