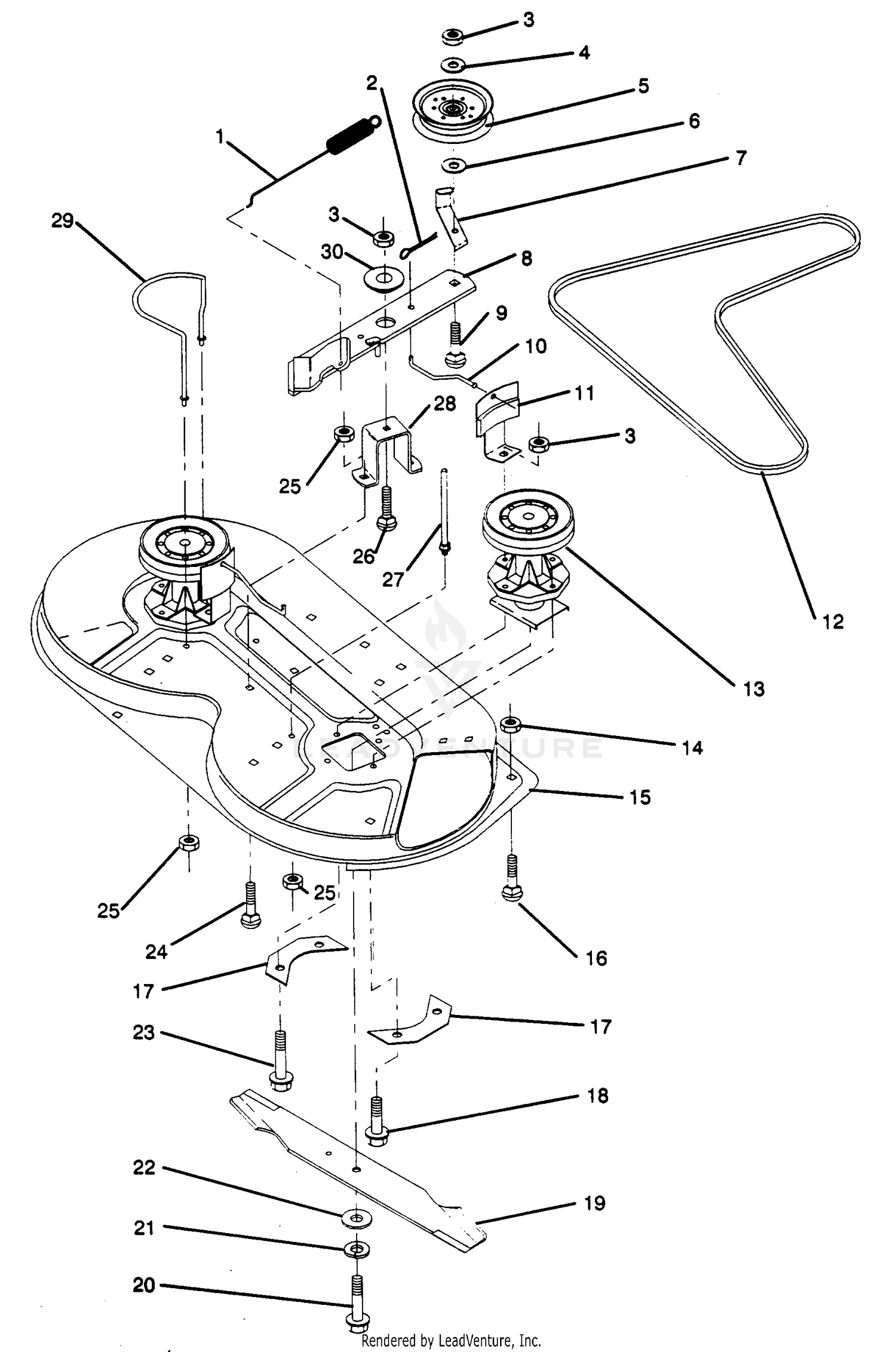

| Ref | Part Number | Description |
|---|
| 1 |
532140064 |
Spring, Mower Clutch This part replaces 532122028. Price: $12.99 |
| 1 |
92-9200 |
COVER Price: $276.63 |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 3 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 4 |
819131412 |
Washer 13/32 x 7/8 x 12 Ga. Price: $3.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532123674 |
Pulley, Idler, Flat This part replaces 532123688. Price: $17.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
819132203 |
Washer 13/32 x 1 3/8 3 Ga. Price: $3.99 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 7 |
532126756 |
Guide, Belt Price: $25.96 |
| 8 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 8 |
532123702 |
Assembly, Mower Idler Arm Price: $8.99 |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 9 |
872110618 |
Bolt, Carriage 3/8-16 x 2 1/4 Price: $2.99 |
| 10 |
532122049 |
Rod, Brake Price: $9.39 |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 11 |
532106578 |
Assembly, Brake Price: $32.99 |
| 12 |
532124293 |
V-Belt Price: $34.99 |
| 13 |
532124208 |
MANDREL ASS'Y This part replaces 532124207. Price: $109.99 |
| 14 |
110-0838 |
DELUXE SEAT ASM Price: $1,941.99 |
| 14 |
873680400 |
Nut, Crownlock 1/4-20 Price: $2.69 |
| 15 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 15 |
532144727 |
This part replaces 532126410. Price: $171.99 |
| 16 |
872140404 |
Bolt, Carriage 1/4-20 x 1/2 Price: $3.99 |
| 17 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 17 |
532100668 |
Support, Plate Jackshaft Price: $2.38 |
| 18 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 Price: Call Us |
| 19 |
532143969 |
BLADE 36" NONVENT This part replaces 532126338. Price: $14.99 |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 20 |
874610624 |
Bolt, Fin. Hex 3/8-24 UNF x 1 1/2 Gr.5 Price: $3.99 |
| 21 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 22 |
32128-21 |
NUT-HF Price: $0.39 |
| 22 |
819132012 |
Washer 13/32 x 1 1/4 x 12 Ga. Price: $2.99 |
| 23 |
874760620 |
Bolt Fin Hex 3/8-16 UNC x 1-1/4 This part replaces 817490620. Price: $3.99 |
| 23 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 24 |
872140505 |
Bolt, Carriage 5/16-18 UNC x 5/8 Price: $2.69 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 25 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 26 |
872110608 |
Bolt, Carriage 3/8-16 UNC x 1 Gr.5 Price: $3.99 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
532123439 |
Guide, R.H. Rear Belt Price: $29.99 |
| 28 |
532122051 |
Support, Idler Arm Price: $3.99 |
| 29 |
532123673 |
Guide, L.H. Belt Price: $8.99 |
| 30 |
58-1580-03 |
FRAME-SEAT Price: $402.10 |
| 31 |
58-9830-03 |
PLATE-SEAT Price: $355.56 |
| 34 |
2412-133 |
CLAMP-R Price: $3.19 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
71-4040 |
HYD FILLER ASM Price: $69.67 |
| 37 |
58-6820 |
GASKET Price: $13.28 |
