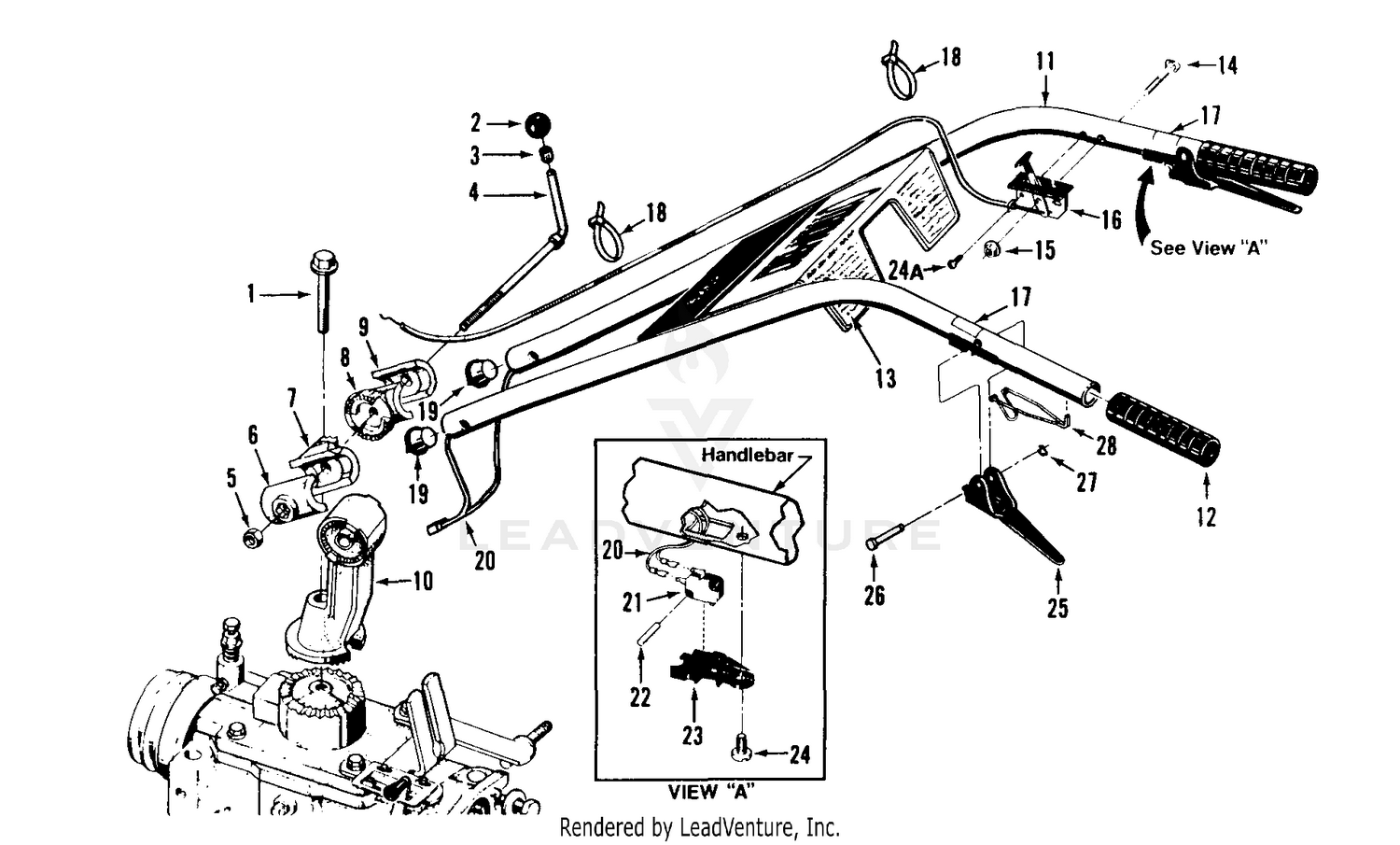

| Ref | Part Number | Description |
|---|
| 1 |
GW-9548 |
Bolt-Hex hd., flanged self-locking Grade 5, 1/2-13 x 3-1/2" This part replaces 9548. Price: $12.42 |
| 5 |
712-0206 |
HEX NUT This part replaces 1186233. Price: $3.90 |
| 6 |
1900854010 |
Clamp-left, handlebar height adjustment Price: $32.05 |
| 7 |
1900856010 |
Ratchet-left, handlebar height adjustment Price: $37.73 |
| 8 |
1900857010 |
Ratchet-right, handlebar height adjustment Price: $43.05 |
| 9 |
1900855010 |
Clamp-right, handlebar height adjustment Price: $33.74 |
| 10 |
1900858010 |
Base-handlebar mounting Price: $110.25 |
| 12 |
720-04083 |
Handlebars Grip This part replaces 9125. Price: $12.95 |
| 13 |
2715 |
Decal-operator control panel Price: Call Us |
| 14 |
GW-9547 |
BOLT-CH Not Available This part replaces 9547. Price: |
| 15 |
1186389 |
Nut-hex, flanged self-locking, whiz lock, 1/4"-20 Price: $3.05 |
| 17 |
1900763 |
DECAL-INTERLOCK LE Not Available Price: |
| 19 |
GW-9219 |
Plug-wire harness retainer This part replaces 9219. Price: $9.09 |
| 20 |
GW-2551 |
HARNESS-WIRE OPC H Not Available This part replaces 2551. Price: |
| 21 |
725-05005 |
MICRO SWITCH This part replaces 9250. Price: $26.56 |
| 22 |
9385 |
Lock Pin-handlebar switch Price: Call Us |
| 23 |
625-04097 |
Switch Assembly This part replaces 2543. Price: $63.95 |
| 24 |
90039 |
SCR-HW M10-24X.5 STH ZP Not Available Price: |
| 24A |
1964 |
SCREW:10-32X.5 This part replaces 9733. Price: $3.89 |
| 25 |
786-04003-0638 |
Operator Presence Control Lever This part replaces 2546. Price: $26.69 |
| 26 |
GW-9199 |
Pivot Pin-forward interlock lever This part replaces 9199. Price: $5.59 |
| 27 |
GW-9514 |
Retaining Ring-klip ring-forward interlock lever This part replaces 9514. Price: $6.03 |
