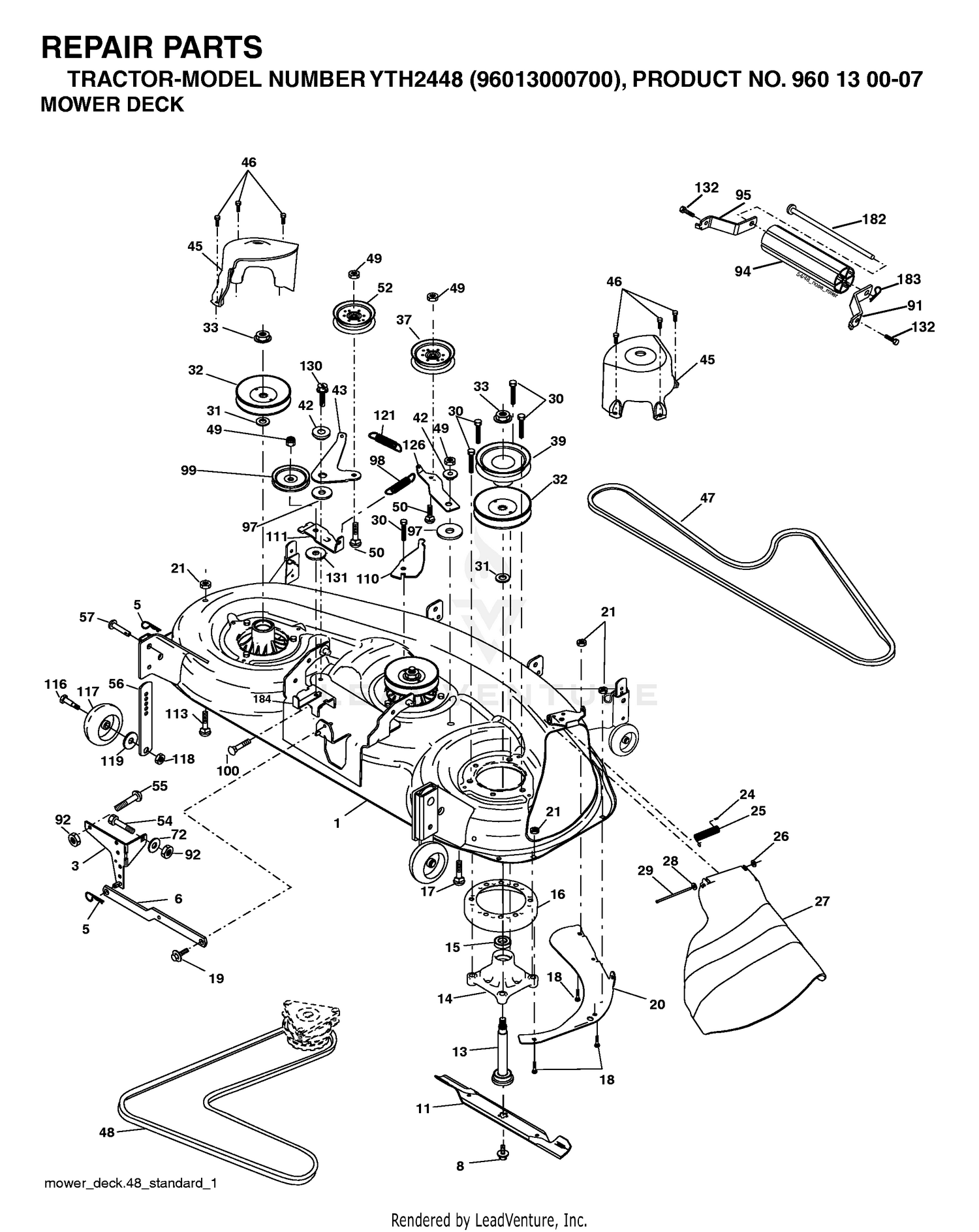

| Ref | Part Number | Description |
|---|
| 1 |
13-5620-01 |
DISCONTINUED This part replaces 13-5620. Price: Call Us |
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532181848. Price: $349.99 |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
13-3710 |
WASHER Price: $3.05 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 12 |
13-4070 |
DISCONTINUED Price: Call Us |
| 13 |
13-4890-01 |
SPROCKET ASM This part replaces 13-4890. Price: $742.67 |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 14 |
3218-3 |
NUT-JAM Price: $0.25 |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 15 |
3247-6 |
SCREW-SET Price: $1.02 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 20 |
13-4960 |
SHAFT-PLATE, FINGER Price: $126.35 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 23 |
115-9028 |
END PLATE ASM This part replaces 13-4930. Price: $71.85 |
| 24 |
144-3697-01 |
FLEX TIP REEL This part replaces 13-5250. Price: $1,218.97 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
115-9024 |
PLATE-CENTER This part replaces 13-2450. Price: $49.00 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
115-9026 |
END PLATE ASM This part replaces 13-4940. Price: $75.83 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
115-9022 |
FINGER-PLASTIC This part replaces 13-2470. Price: $1.83 |
| 28 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
115-9023 |
CLAMP-FINGER This part replaces 13-2480. Price: $5.46 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
32140-94 |
SCREW-HH, SEMS Price: $5.89 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
13-5700 |
DISCONTINUED Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
325-11 |
SCREW-HH Price: $1.93 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
13-0560 |
SPACER Price: $5.29 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 35 |
13-0360 |
SPACER Price: $13.03 |
| 36 |
13-3070 |
SPACER Price: $8.69 |
| 37 |
32153-5 |
NUT-HEX Price: $1.59 |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 38 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 39 |
328-10 |
SCREW-HH Price: $14.93 |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 40 |
13-5230 |
DISCONTINUED X-REF Price: Call Us |
| 41 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 42 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
325-14 |
SCREW-HH Price: $2.64 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 44 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 45 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" Price: $12.99 |
| 46 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
13-5550-01 |
ARM-WHEEL, GAUGE This part replaces 13-5550. Price: $504.47 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY Price: $49.99 |
| 48 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
13-5570 |
PIVOT Price: $47.91 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 52 |
13-3020-01 |
SPROCKET-IDLER This part replaces 13-3020. Price: $125.22 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 53 |
13-5320 |
DISCONTINUED Price: Call Us |
| 54 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 55 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 72 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532189993. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 111 |
532174610 |
ARM SPRING FIXED TENSION Price: $6.99 |
| 113 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 131 |
819131606 |
Washer 13/32 x 1.00 x 6 Ga. Price: $4.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
532173979 |
KEEPER BELT IDLER PLATED Price: $4.99 |
