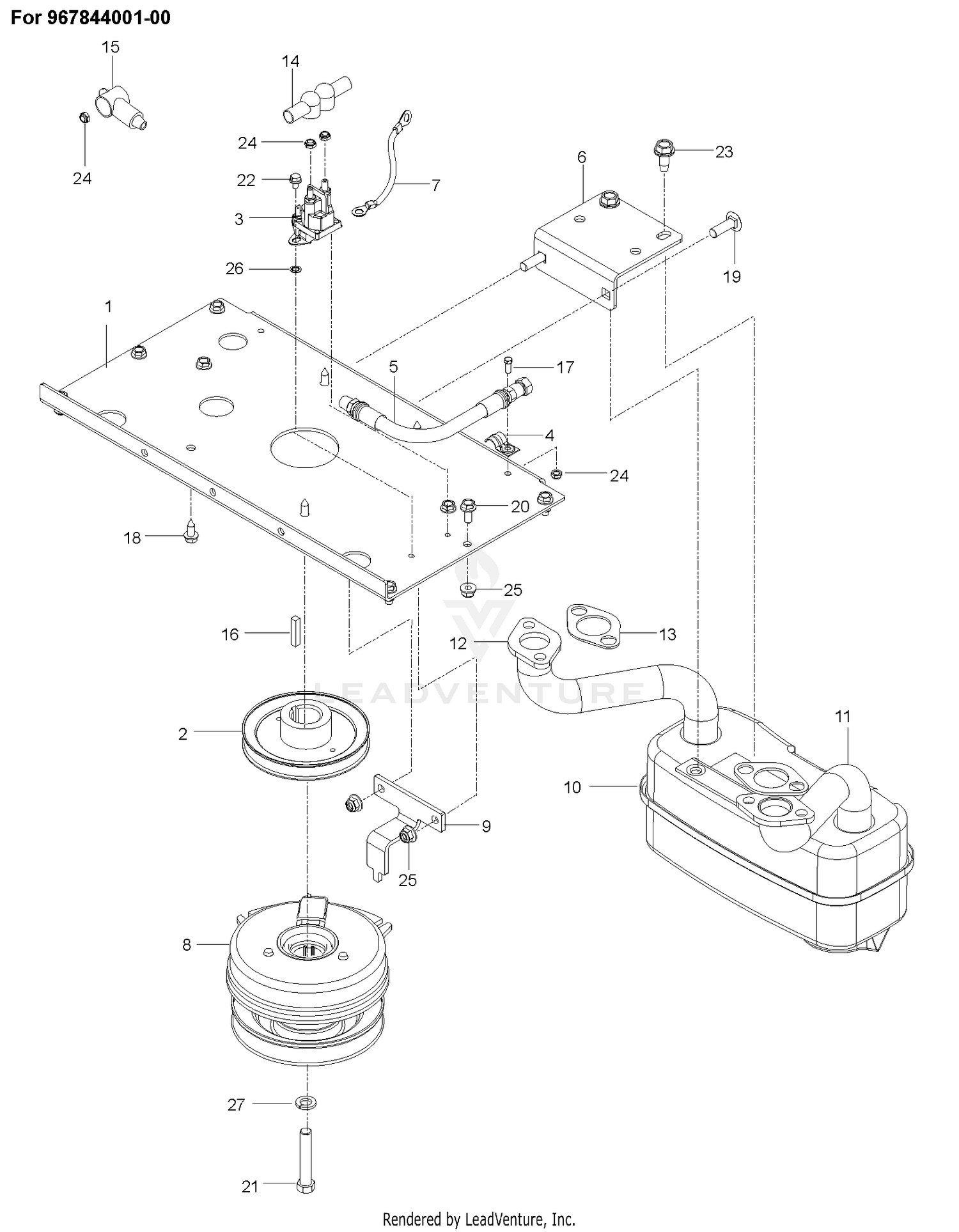

ENGINE MOUNTING, GUARDS & MUFFLER 3

ENGINE MOUNTING, GUARDS & MUFFLER 3

Parts (26)

RefPart NumberDescription
1 586651402 PLATE.PNT.ENGINE.E-DIP Price: $32.99
2 574811001 PULLEY, V, 1.125 BORE Price: $39.99
4 539101363 CLAMP Price: $2.99
5 584825501 HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99
6 575229902 BRKT, MUFFLER, BLK Price: $29.99
7 539102757 CABLE POSITIVE Price: $7.99
8 574607001 CLUTCH 200 FT LB Price: $379.99
9 575017301 STOP, CLUTCH Price: $24.99
10 539131604 MUFFLER ASM TWIN Price: $39.99
11 583954501 PIPE.EXHAUST.LH.CV18/20 Price: $19.99
12 583954801 PIPE.EXHAUST.RH.CV18/20 Price: $17.99
13 532178151 GASKET This part replaces 586839701. Price: $4.99
14 532154336 COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99
15 539102759 INSULATOR Price: $3.99
16 539912757 KEY, 1/4 SQ X 1 1/4 Price: $3.99
17 596437001 Screws This part replaces 539990071. Price: $2.99
18 817120616 SCREW 3/8-16X1 Price: $4.99
19 596435701 Bolts This part replaces 539107271. Price: $2.99
20 592858702 Bolts This part replaces 874490512. Price: $3.99
21 581332806 Bolts This part replaces 581332802. Price: $6.99
22 596582701 Screws This part replaces 539990302. Price: $2.99
23 539107475 BOLT 5/16-18 X 3/4 Price: $4.99
24 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99
25 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
26 539990053 WASHER 1/4 INT TOOTH Price: $2.99
27 596238901 Washers This part replaces 539990247. Price: $2.99
