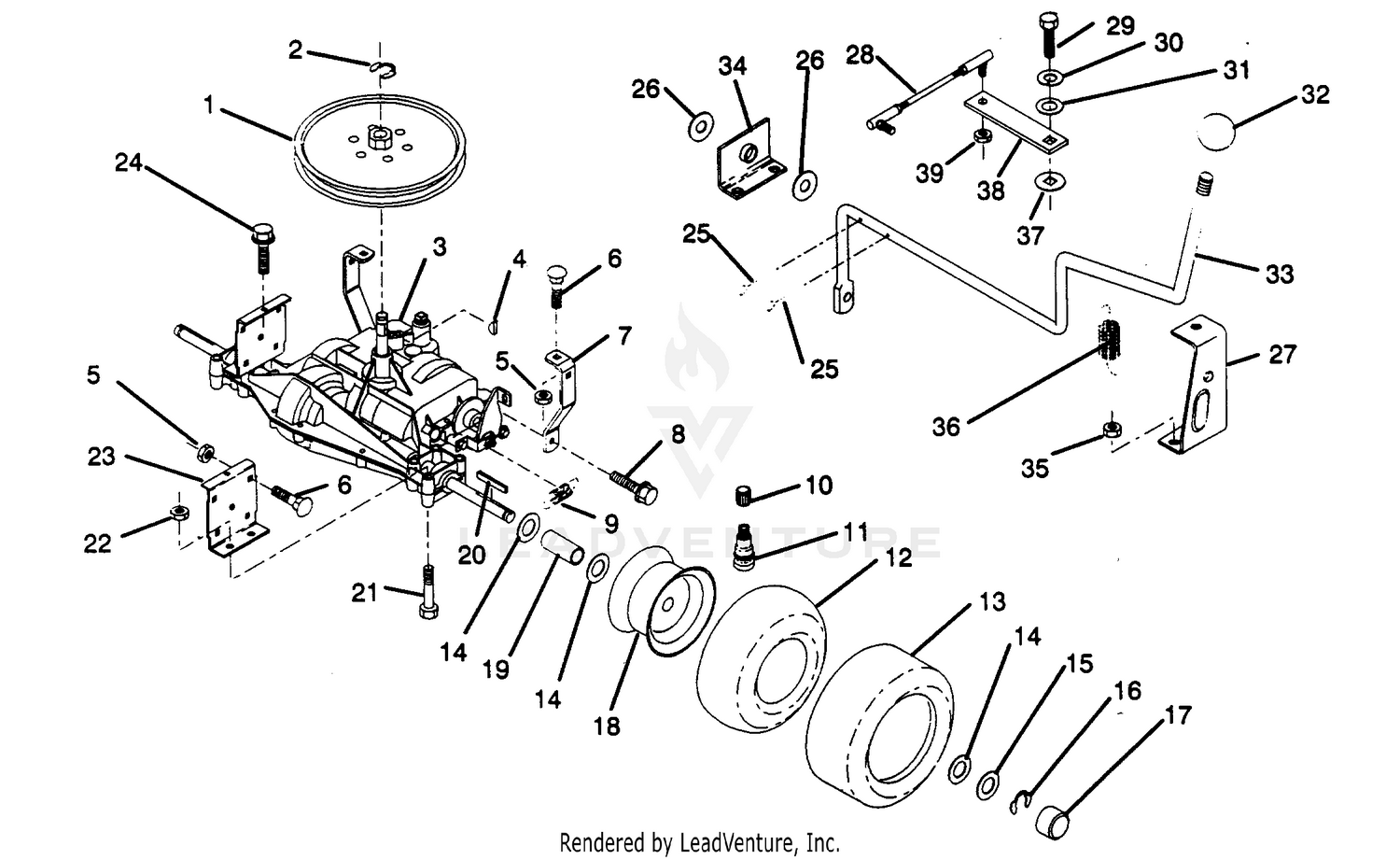

| Ref | Part Number | Description |
|---|
| 1 |
532123385 |
Pulley Price: $22.99 |
| 1 |
98-9772 |
HEAD-FILTER Price: $235.82 |
| 2 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 2 |
98-9764 |
ELEMENT Price: $39.02 |
| 3 |
532123383 |
Transaxle, Foot, 4 Speed Price: $3.33 |
| 3 |
98-9774 |
O-RING Price: $20.04 |
| 4 |
532125096 |
Key, Woodruff #9 Price: $3.99 |
| 4 |
98-9775 |
BASE-FILTER Price: $115.28 |
| 5 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 5 |
98-9773 |
PLUG-BASE, FILTER Price: $34.25 |
| 6 |
237-42 |
O-RING Price: $2.78 |
| 6 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 7 |
237-78 |
O-RING Price: $3.85 |
| 7 |
532123378 |
Strap, Torque Price: $2.99 |
| 8 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 8 |
98-9776 |
PLUG-HEAD, FILTER Price: $23.26 |
| 9 |
532146682 |
Spring Return Brake This part replaces 532110422. Price: $4.99 |
| 10 |
532059192 |
Cap, Valve Price: $3.99 |
| 11 |
532065139 |
Stem, Valve Price: $5.99 |
| 12 |
532008134 |
Tube Price: $35.99 |
| 13 |
532124143 |
Tire, Rear Price: $46.23 |
| 14 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 15 |
532121748 |
Washer, 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 16 |
812000001 |
E-Ring Price: $2.99 |
| 17 |
532104757 |
Hub, Cap Price: $1.99 |
| 18 |
532124844 |
Rim This part replaces 532125097. Price: $137.43 |
| 19 |
532123409 |
Spacer Price: $3.08 |
| 20 |
532123583 |
Key, Square Price: $2.69 |
| 21 |
874760644 |
Bolt, Fin, Hex 3/8-16 x 2-3/4 Price: $3.99 |
| 22 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 23 |
532123377 |
Bracket, Transaxle Price: $2.99 |
| 24 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 25 |
876020416 |
Pin, Cotter 1/8 532 1 Price: $3.99 |
| 26 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 27 |
532124601 |
Support, Handle Shift R.H. Price: $3.33 |
| 28 |
532123632 |
Link, Shift Price: $14.99 |
| 29 |
871040412 |
Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8 Price: $3.99 |
| 30 |
810040400 |
Washer, Lock Hvy. Helical Spring 1/4 Price: $3.99 |
| 31 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 32 |
532106933 |
Knob, Shift Contol Price: $3.99 |
| 33 |
532124599 |
Shift Rod Price: $3.33 |
| 34 |
532124600 |
Support, Handle Shift L.H. Price: $2.38 |
| 35 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 36 |
532128085 |
Extension, Spring This part replaces 532123393. Price: $4.99 |
| 37 |
532105701 |
Washer, Shift Plate Price: $3.99 |
| 38 |
532123484 |
Arm, Shift Price: $2.38 |
