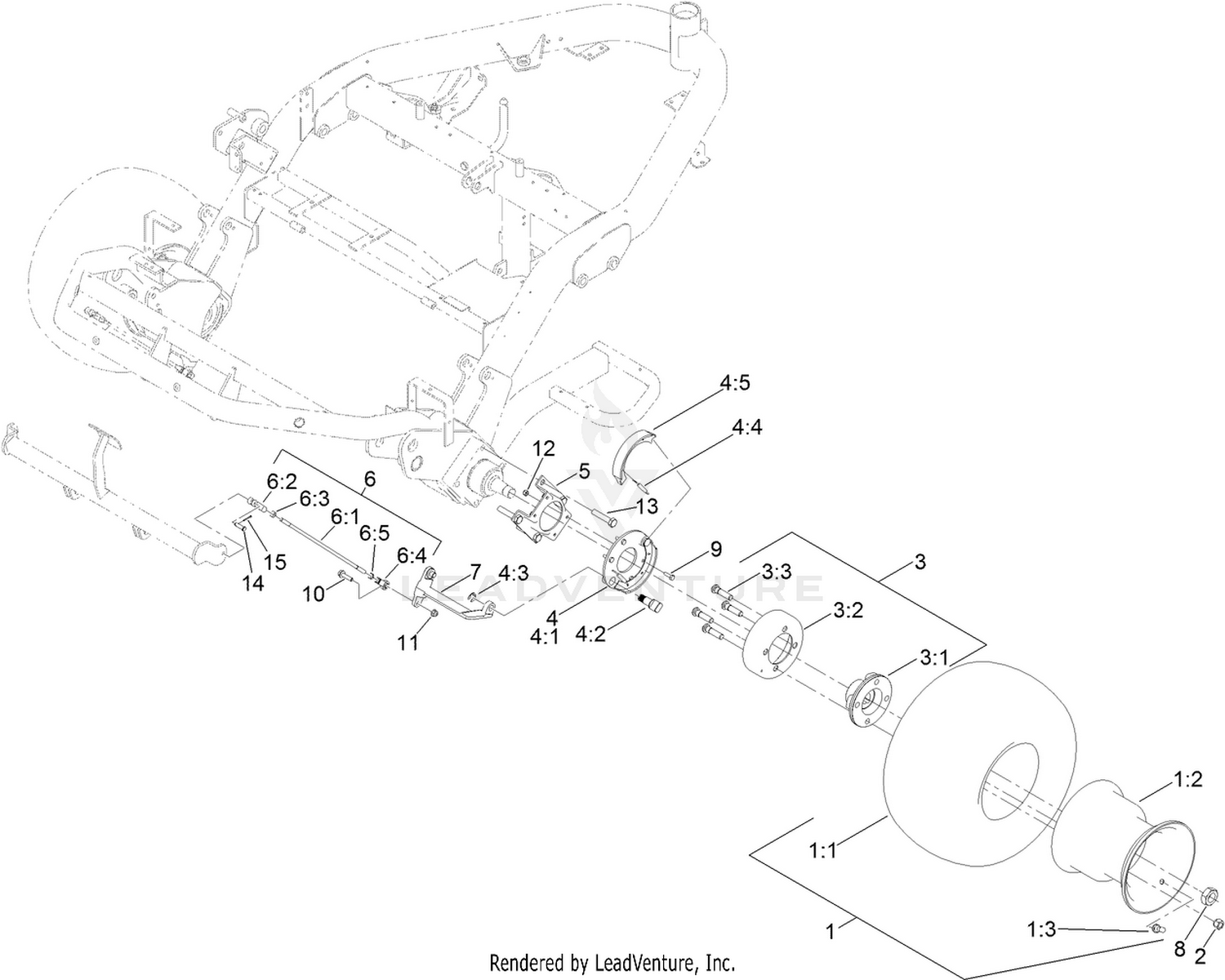

Front Wheel and Brake Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-4665 | TIRE ASM Price: $226.02 |
| 2 | 139-2564 | NUT-LUG Price: $0.99 |
| 3 | 120-5330 | BRAKE DRUM ASM Price: $153.66 |
| 4 | 104-7705 | BRAKE ASM Price: $175.69 |
| 5 | 147-3595 | BRACKET-BRAKE Price: $8.08 |
| 6 | 115-6675 | BRAKE ROD ASM Price: $48.38 |
| 7 | 93-2096 | LEVER-BRAKE Price: $89.45 |
| 8 | 26-3790 | NUT-LOCK Price: $24.46 |
| 9 | 321-5 | SCREW-HH Price: $0.22 |
| 10 | 3234-36 | SCREW-HHF Price: $0.75 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 13 | 33116-060 | SCREW-HH Price: $1.09 |
| 14 | 283-61 | PIN-YOKE Price: $1.56 |
