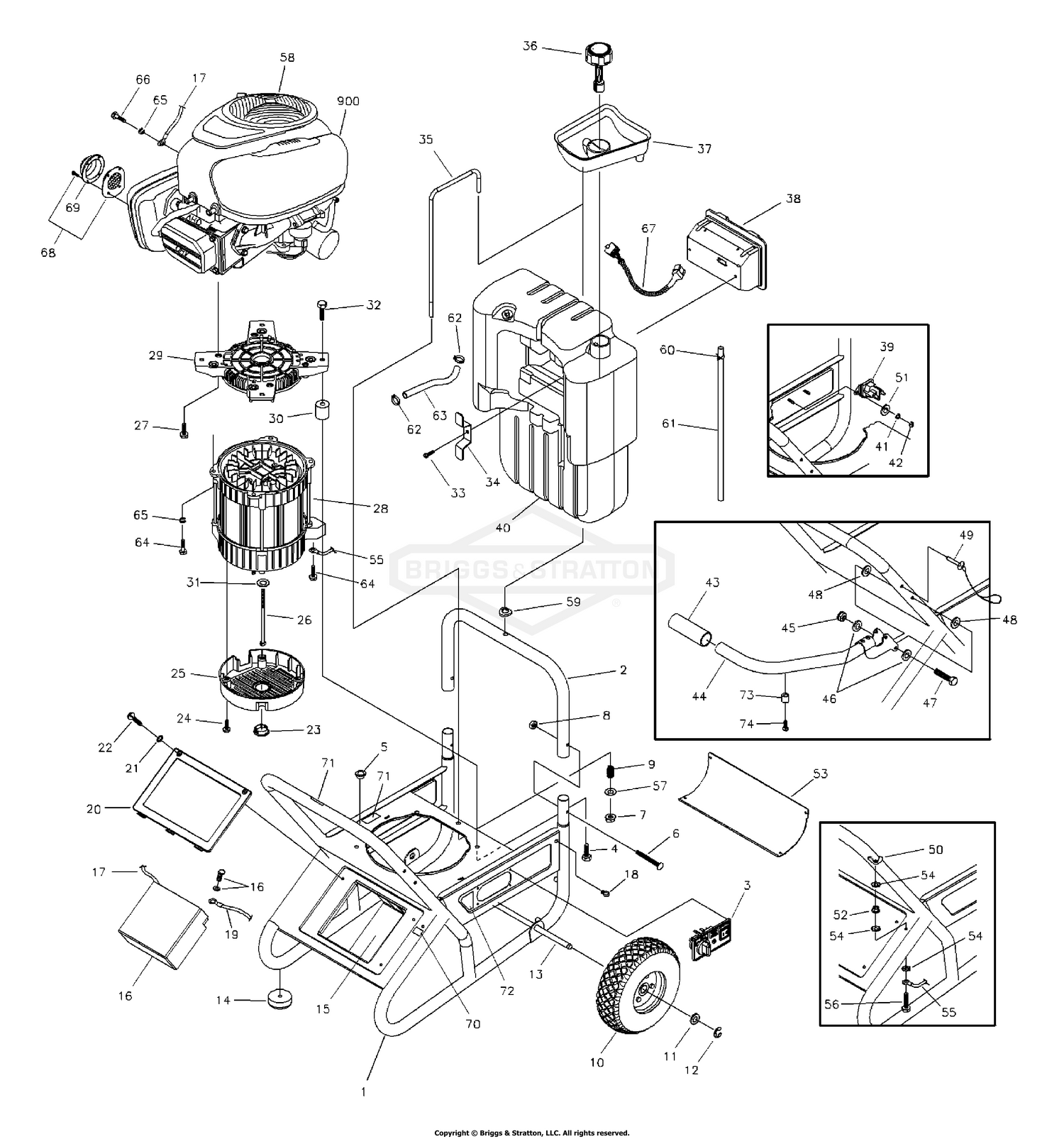

| Ref | Part Number | Description |
|---|
| 1 |
B191821GS |
CRADLE Price: $365.35 |
| 2 |
P193086GS |
CRADLE,Top This part replaces B193086GS. Price: $29.20 |
| 4 |
703955 |
BOLT, 3/8-16X0.75 This part replaces 193263GS. Price: $3.72 |
| 5 |
186173GS |
BUSHING, Snap Price: $2.19 |
| 6 |
31669GS |
BOLT, Carriage Price: $2.69 |
| 7 |
26911GS |
NUT, Nylock Price: $2.89 |
| 8 |
194005GS |
NUT This part replaces B2071GS. Price: $2.69 |
| 9 |
192470GS |
SPRING, Loading,Tank Price: $2.59 |
| 10 |
209636GS |
WHEEL This part replaces B4966GS. Price: $87.32 |
| 11 |
5025281SM |
WASHER, 5/8" SAE This part replaces 22247GS. Price: $3.51 |
| 12 |
703977 |
E-RING This part replaces 191265GS. Price: $4.05 |
| 13 |
191267GGS |
AXLE Price: $25.67 |
| 14 |
192553GS |
KIT, Vibration Mount Hardware (2 sets) Price: $14.65 |
| 15 |
193320GS |
STRIP, Foam Price: $9.69 |
| 16 |
193463GS |
BATTERY, 12V w/Hardware Price: $139.09 |
| 17 |
185939LGS |
CABLE, Blk, Battery to Engine Price: $16.19 |
| 18 |
192940GS |
CLIP, Retainer, Fuel Hose Price: $1.60 |
| 19 |
189302EGS |
CABLE, Red, Battery to Solenoid Price: $10.85 |
| 20 |
191815GS |
COVER, Battery, Billboard Price: $7.50 |
| 21 |
22769GS |
WASHER Price: $2.49 |
| 22 |
36701GS |
SCREW, 10-32 X 1/2, PPHMS Price: $2.64 |
| 23 |
191190GS |
CAP, Bolt, Rotor Price: $3.09 |
| 24 |
74908GS |
SCREW Price: $2.69 |
| 25 |
191029GS |
COVER, RBC, Plastic Price: $19.05 |
| 26 |
187365HGS |
SCREW Price: $16.35 |
| 27 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246GS. Price: $4.26 |
| 29 |
191793GS |
ADAPTER, Engine Price: $47.28 |
| 30 |
193249GS |
MOUNT, Engine Price: $8.89 |
| 31 |
96796GS |
WASHER Price: $2.79 |
| 32 |
193264GS |
SCREW Price: Call Us |
| 33 |
191991GS |
BOLT, Plastite Price: $8.28 |
| 34 |
191990GS |
BRACKET, Retaining, Panel Price: $10.59 |
| 35 |
191989GS |
ROD, Mounting Tank Price: $31.49 |
| 36 |
191826GS |
CAP, Fuel Gauge Price: $19.55 |
| 37 |
192921GS |
SHIELD, Fuel Fill Price: $20.05 |
| 39 |
691656 |
SOLENOID, Starter Price: $29.23 |
| 40 |
193345GS |
ASSY, Tank, 7-Gallon Price: $109.05 |
| 41 |
22097GS |
WASHER Price: $3.05 |
| 42 |
22127GS |
NUT, Hex, 1/4-20 Price: Call Us |
| 43 |
192477GS |
GRIP, Handle Price: $7.59 |
| 45 |
49820GS |
NUT, Nylok Price: $2.40 |
| 46 |
703350 |
WASHER This part replaces 22145GS. Price: $3.72 |
| 47 |
51730GS |
SCREW Price: $2.64 |
| 48 |
193288GS |
WASHER, Nylon Price: $2.49 |
| 49 |
B4135GS |
PIN, Handle Release Price: $6.09 |
| 50 |
87680GS |
NUT, Wing Price: $6.57 |
| 51 |
703332 |
WASHER This part replaces 22473GS. Price: $3.72 |
| 52 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 53 |
193344GS |
KIT, PLT, Skid, SRV Price: $31.99 |
| 54 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 55 |
192810GS |
HARNESS, Ground Price: $32.99 |
| 56 |
45757GS |
SCREW Price: $2.64 |
| 57 |
71072MA |
WASHER, FLAT .406X.81 This part replaces 22131GS. Price: $3.63 |
| 58 |
192251GS |
GUARD, Recoil Price: $17.45 |
| 59 |
192520GS |
GROMMET, Rod,Tank Price: $2.88 |
| 60 |
193055GS |
CLAMP, Hose Price: $2.49 |
| 61 |
192997GS |
HOSE, Fuel Overflow Price: $20.55 |
| 62 |
691038 |
CLAMP, Hose This part replaces 48031CGS. Price: $3.12 |
| 63 |
189867DGS |
HOSE, Fuel Price: $1.10 |
| 64 |
22125GS |
SCREW Price: Call Us |
| 65 |
22129GS |
WASHER, Lock Price: $2.61 |
| 66 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 22142GS. Price: $3.19 |
| 67 |
192809GS |
HARNESS,AC Price: $42.65 |
| 68 |
794945 |
ARRESTOR, Spark This part replaces 392390. Price: $44.29 |
| 69 |
396903 |
DEFLECTOR, Muffler Price: $12.10 |
| 70 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 71 |
191436GS |
DECAL, Caution Hot Muffler Price: $7.19 |
| 72 |
193504GS |
DECAL, Battery Instructions Price: $9.89 |
| 73 |
186569GS |
BUMPER, Recess Price: $3.79 |
| 74 |
28828BGS |
SCREW Price: $2.49 |
| 900 |
~NSP |
ENGINE Price: Call Us |
