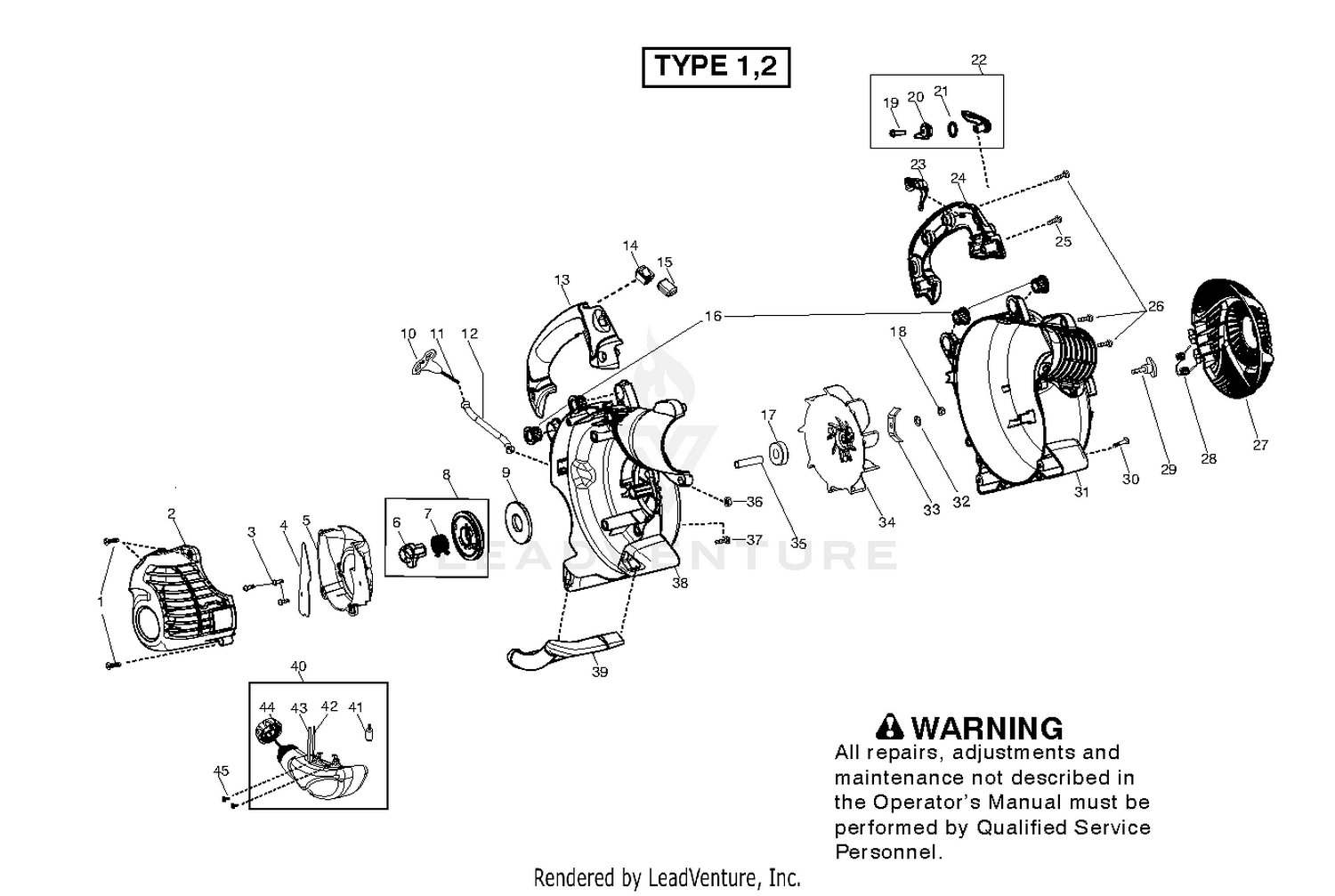

HOUSING
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33106-035 | SCREW-HHF Price: $8.35 |
| 1 | 530015814 | SCREW Price: $1.49 |
| 2 | 545150502 | Price: $19.99 |
| 2 | 93-9157 | VELCRO-HOOK Price: $10.14 |
| 3 | 33104-030 | SCREW-HHF Price: $4.66 |
| 3 | 530015880 | SCREW Price: $1.99 |
| 4 | 545134001 | SHIELD BAFFLE Price: $3.99 |
| 4 | 93-9160 | COVER-ROPS Price: $265.09 |
| 5 | 545099101 | BAFFLE Price: $6.99 |
| 5 | 94-2643 | ROPS ASM Price: $3,395.01 |
| 6 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 6 | 545052401 | Hub Price: $1.99 |
| 7 | 545052501 | Spring - Pulley Price: $8.99 |
| 8 | 545050407 | KIT STARTER PULLEY Price: $11.99 |
| 9 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 10 | 545152905 | Price: $2.99 |
| 11 | 545050416 | Kit - Rope Price: $4.99 |
| 12 | 545107101 | TUBE STARTER ROPE Price: $5.99 |
| 13 | 545138601 | Price: $6.99 |
| 15 | 545128201 | PROTECTOR, SWITCH Price: $1.99 |
| 16 | 545137701 | Grommet Price: $2.99 |
| 17 | 545099001 | HUB Price: $3.99 |
| 18 | 530626605 | NUT Price: $1.99 |
| 19 | 530015814 | SCREW Price: $1.49 |
| 20 | 545111501 | RATCHET CRUISE CONTROL Price: $4.99 |
| 21 | 545173101 | Washer - Wave Price: $1.99 |
| 23 | 545144903 | Price: $2.99 |
| 24 | 545138801 | Price: $10.99 |
| 25 | 530016406 | SCREW #10 PLASTITE 1.362 Price: $1.99 |
| 26 | 530015814 | SCREW Price: $1.49 |
| 27 | 545139001 | Price: $6.99 |
| 28 | 545115601 | SPRING VAC DOOR Price: $2.99 |
| 29 | 545003502 | Price: $1.99 |
| 30 | 530015940 | SCREW Price: $1.99 |
| 32 | 530092322 | LOCK WASHER Price: $1.99 |
| 33 | 545120701 | Blade - Mulch Price: $6.99 |
| 34 | 545113601 | ASSY IMPELLAR HUB Price: $4.99 |
| 35 | 545113701 | SPACER FLYWHEEL Price: $2.99 |
| 37 | 530016386 | SCREW Price: $5.99 |
| 39 | 545138501 | Price: $8.99 |
| 41 | 530095646 | FUEL PICK-UP ASSY Price: $2.69 |
| 42 | 530069247 | KIT-LINE Price: $3.69 |
| 43 | 530069216 | LINE KIT Price: $3.99 |
| 44 | 530057973 | ASSY FUEL CAP W/RETAINER Price: $7.99 |
